LAZER Utility-80 HD
Auf Lager
Produktcode:
00U80-HD
Preis ohne MWSt.:
220,00 €
Preis inkl. MWSt.:
266,20 €
Beschreibung
Grundlagen
Voltage Range (DC) |
10-32V |
| LED Life | 50,000 hours |
| Weight | 1.1 kg |
| HIGH BEAM FUNCTION | |
| Total Luminous Flux | 8,940 Lm |
| Effective Lumens † | 7,420 Lm |
| Colour Temperature | 5000K |
| Power Consumption | 80 Watts |
| Current Draw (14.4V) | 5.6 Amps |
| Connector | 2-Pin/4-Pin Deutsch DT (+28cm Cable) |

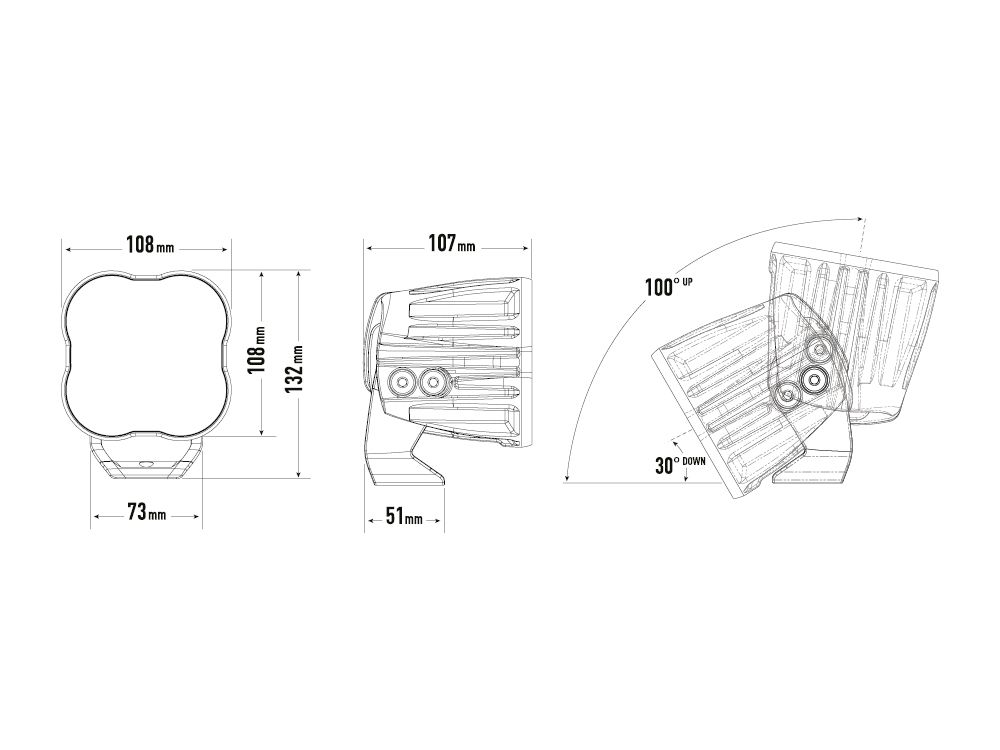

| DIMENSIONS | |
| Width | 108 mm |
| Depth | 107 mm |
| Height | 108 mm |
| CERTIFICATION | |
| IP Rating # | IP68 / IP69K |
| EMC Certification | ECE R10 |
| EMC Protection | CISPR-25 - Class 5 (Variable version currently Class 3) |
| Salt Spray Test | ISO 9227 |
| Dump Load Protection | ISO 7637-2 |
| OPERATING CONDITIONS | |
| Operating Temperature | -40oC … +90oC |
| Vibration (BS EN 60068) | 10Hz > 1000Hz, 0.14>20 (m/s²)²/Hz |

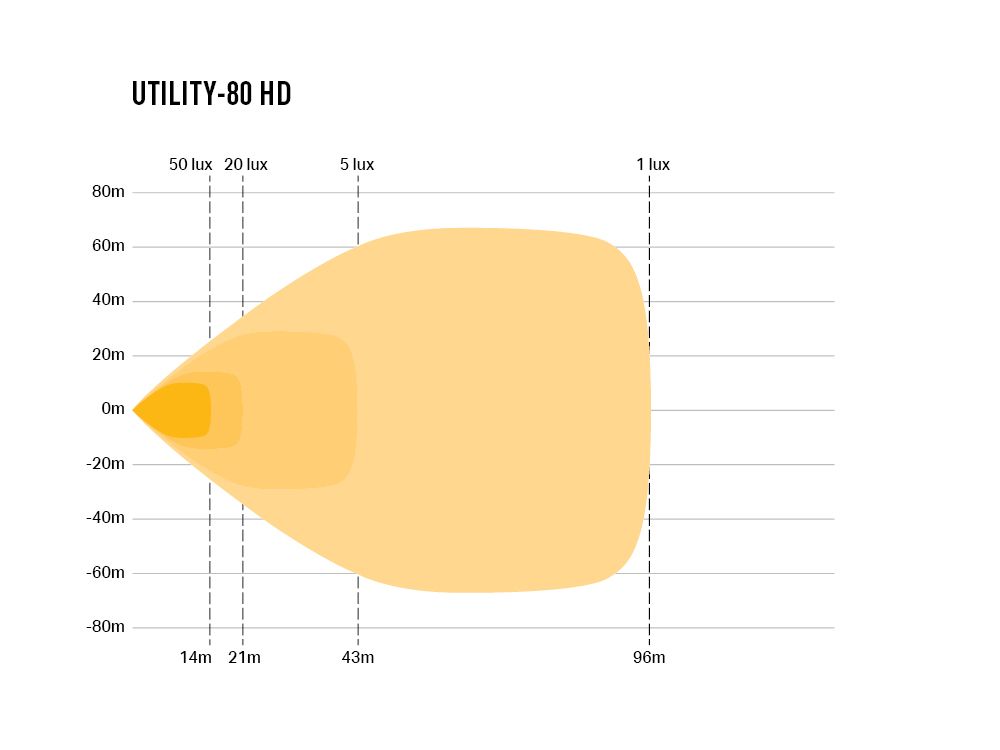

| PHOTOMETRIC DATA | |
| Horizontal / Vertical Beam Angle | 80° / 80° |
| 1 Lux | 96m |
| 5 Lux | 43m |
| 20 Lux | 21m |
| 50 Lux * | 14m |
Hersteller:
LAZER Lamps
Garantie (Monate):
60
