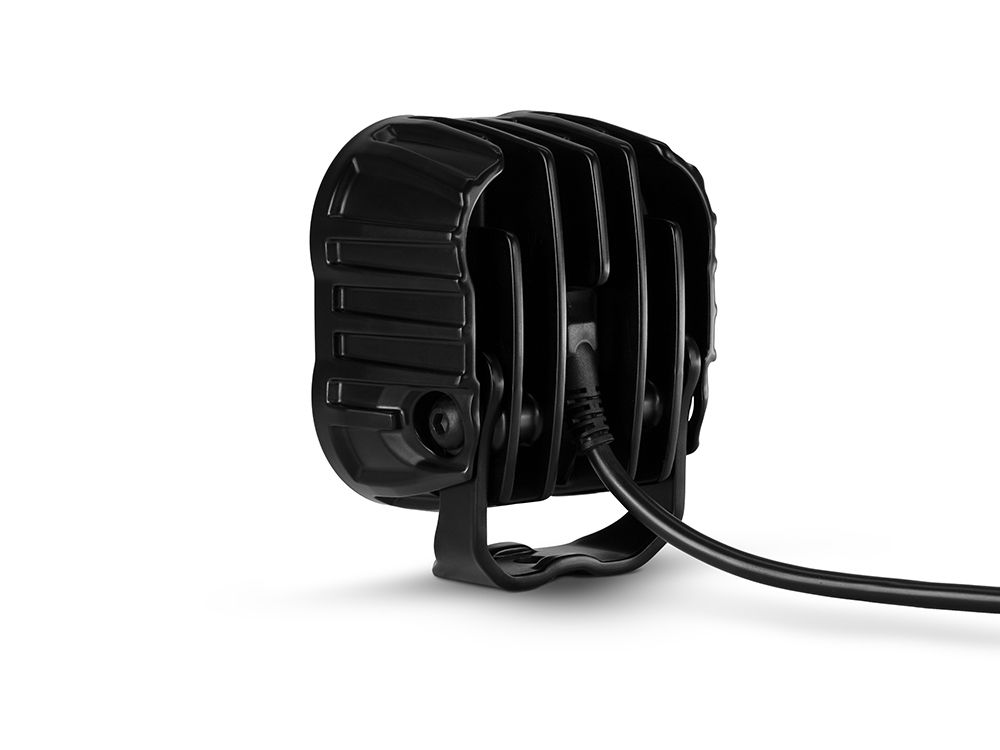

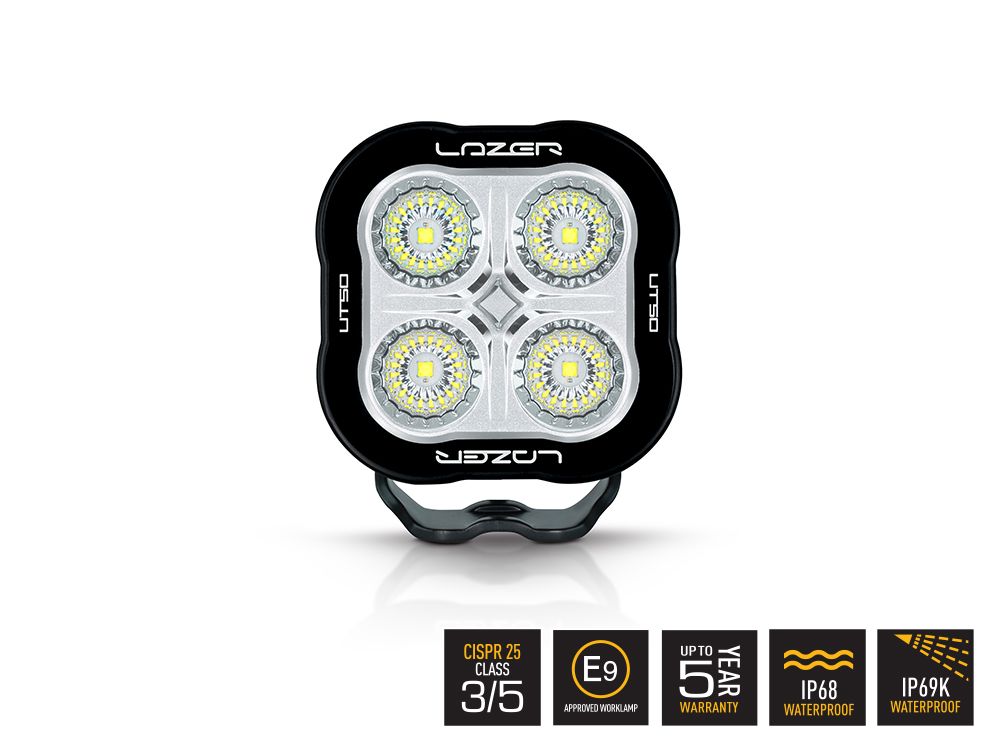

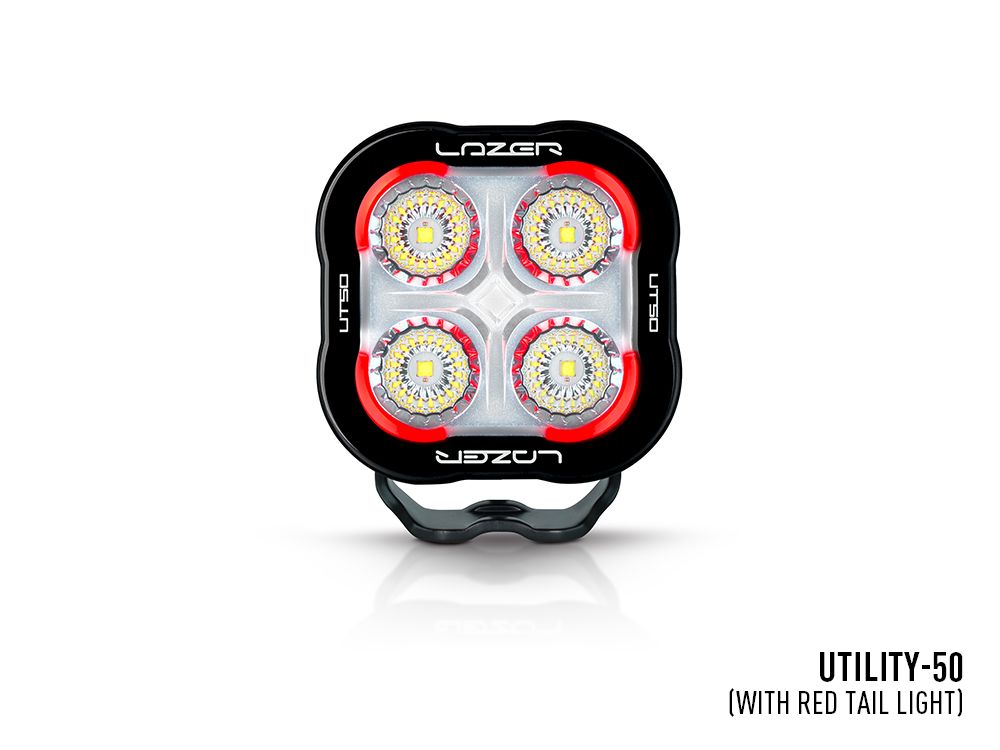

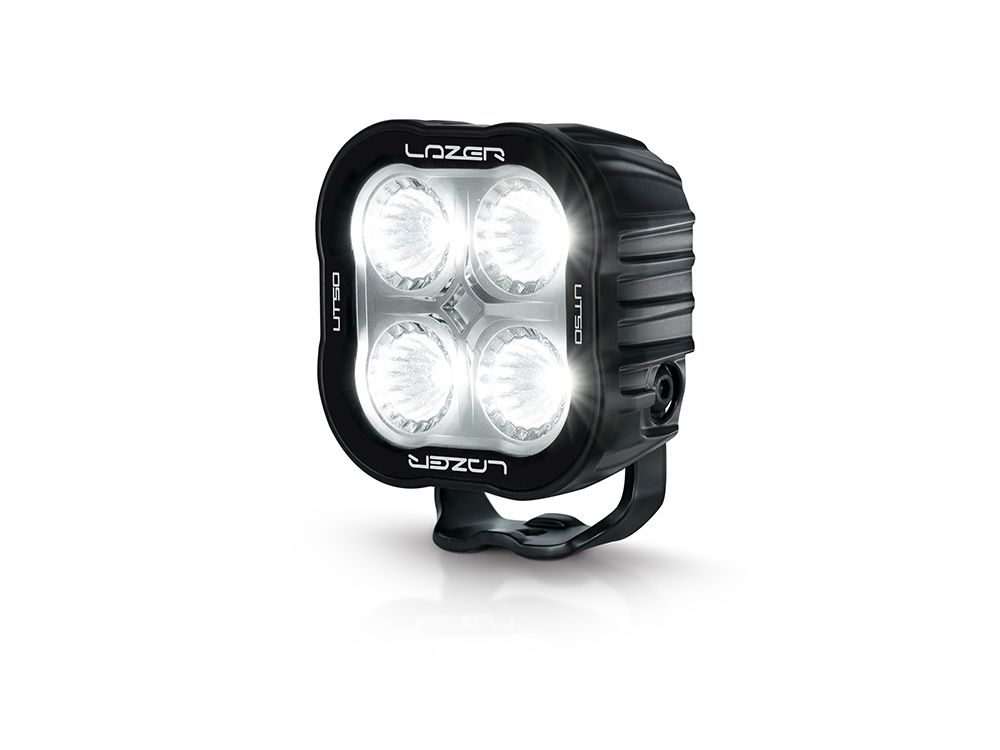

LAZER Utility-50 with red position light
Auf Lager
Produktcode:
00U50+pos
Preis ohne MWSt.:
163,00 €
Preis inkl. MWSt.:
197,23 €
Beschreibung
Grundlagen
| Voltage Range (DC) | 10-32V | |
| LED Life | 50,000 hours | |
| Weight | 0.65 kg | |
| HIGH BEAM FUNCTION | ||
| Total Luminous Flux | 5,000 Lm | |
| Effective Lumens † | 4,380 Lm | |
| Colour Temperature | 5000K | |
| Power Consumption | 50 Watts | |
| Peak Current Draw | 7.25 Amps | |
| Current Draw (14.4V) | 3.6 Amps | |
| Connector | 2-Pin/4-Pin Deutsch DT (+28cm Cable) | |

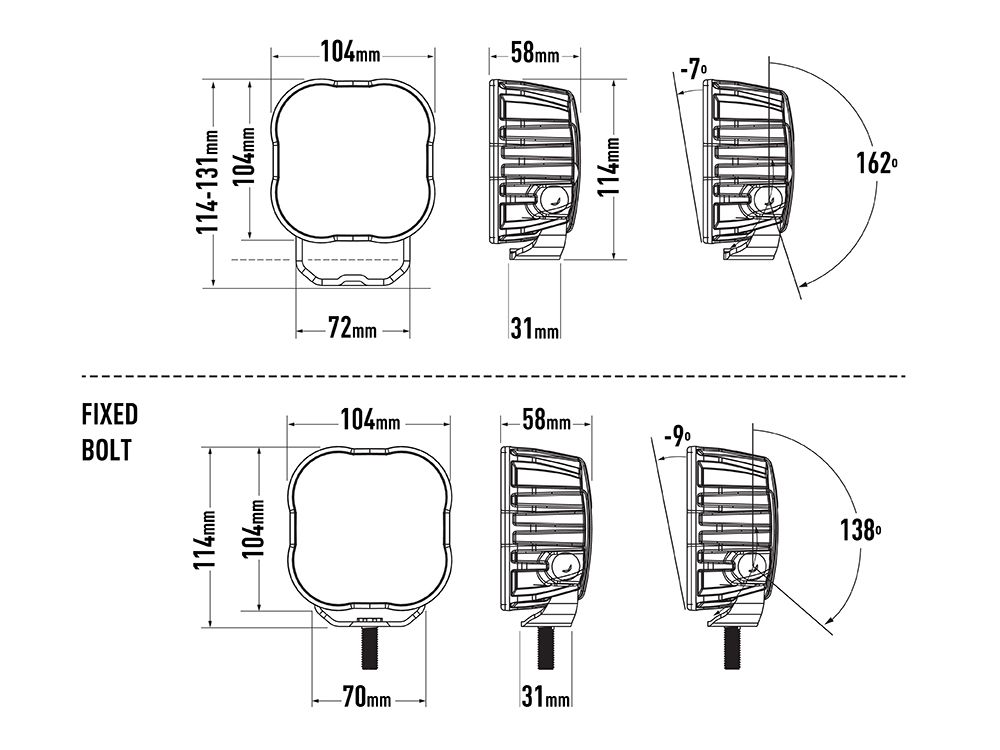

| DIMENSIONS | ||
| Width | 104 mm | |
| Depth | 58 mm | |
| Height | 104 mm | |
| CERTIFICATION | ||
| IP Rating # | IP68 | |
| Red Tail Light | ECE R148 (R1) | |
| Beacon Function | ECE R65 (XA1) | |
| EMC Certification | ECE R10 | |
| EMC Protection | CISPR-25 (Class 3/5) | |
| Salt Spray Test | ISO 9227 | |
| Dump Load Protection | ISO 7637-2 | |
| OPERATING CONDITIONS | ||
| Operating Temperature | -40oC … +90oC | |
| Vibration (BS EN 60068) | 10Hz > 1000Hz, 0.14>20 (m/s²)²/Hz | |

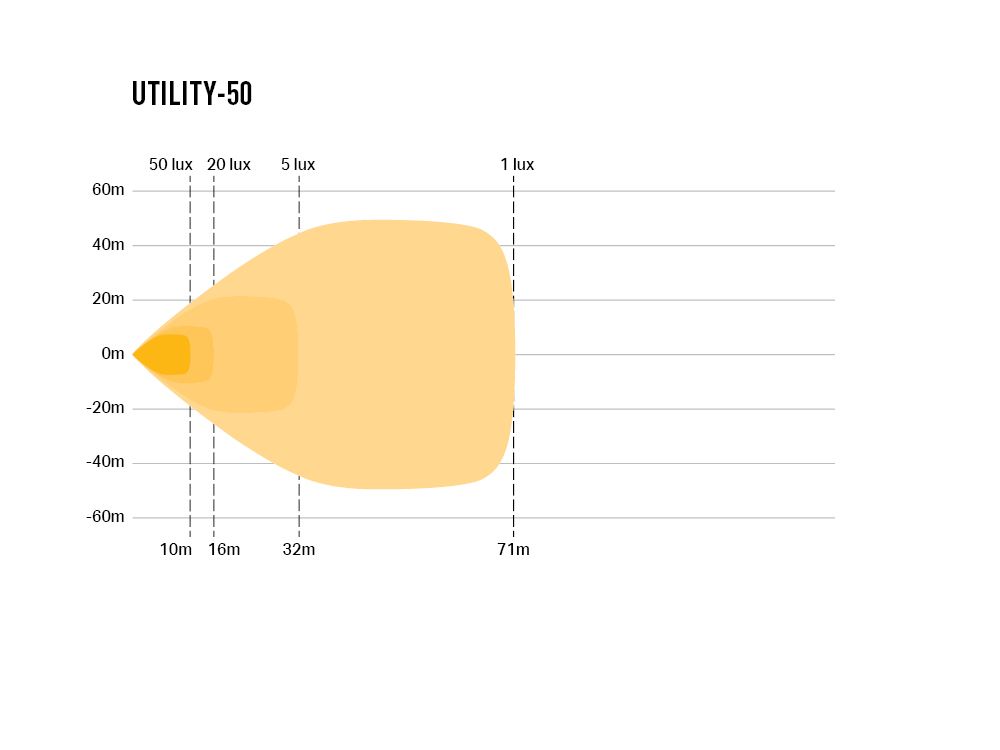

| PHOTOMETRIC DATA | ||
| Horizontal / Vertical Beam Angle | 80° / 80° | |
| 1 Lux | 71m | |
| 5 Lux | 32m | |
| 20 Lux | 16m | |
| 50 Lux * | 10m | |
Hersteller:
LAZER Lamps
Garantie (Monate):
60
