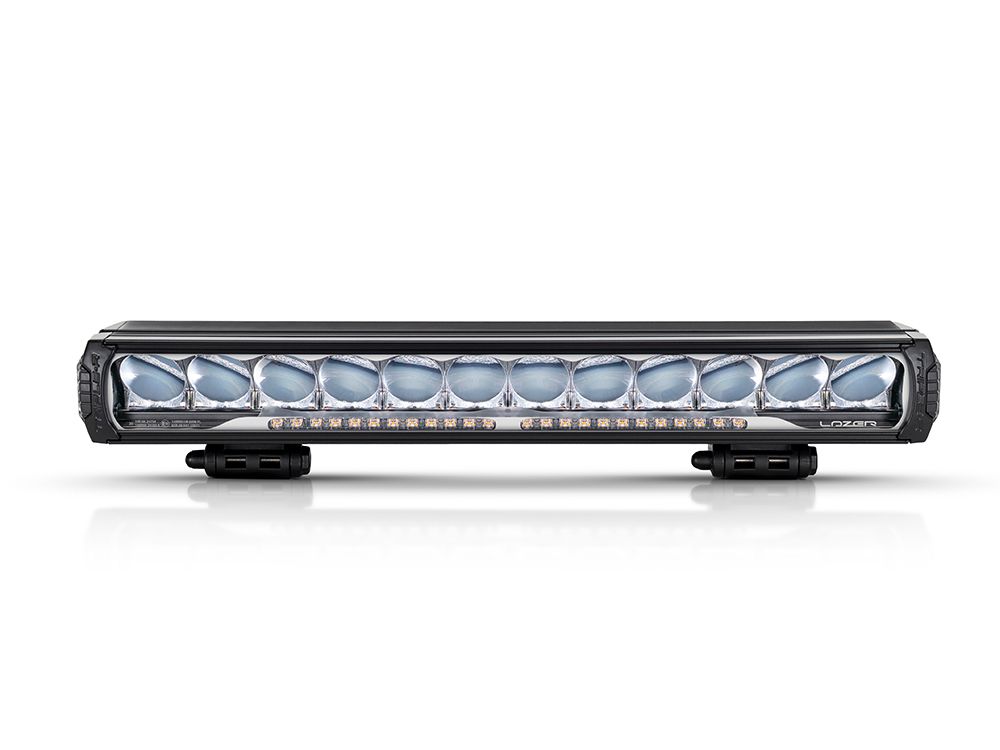

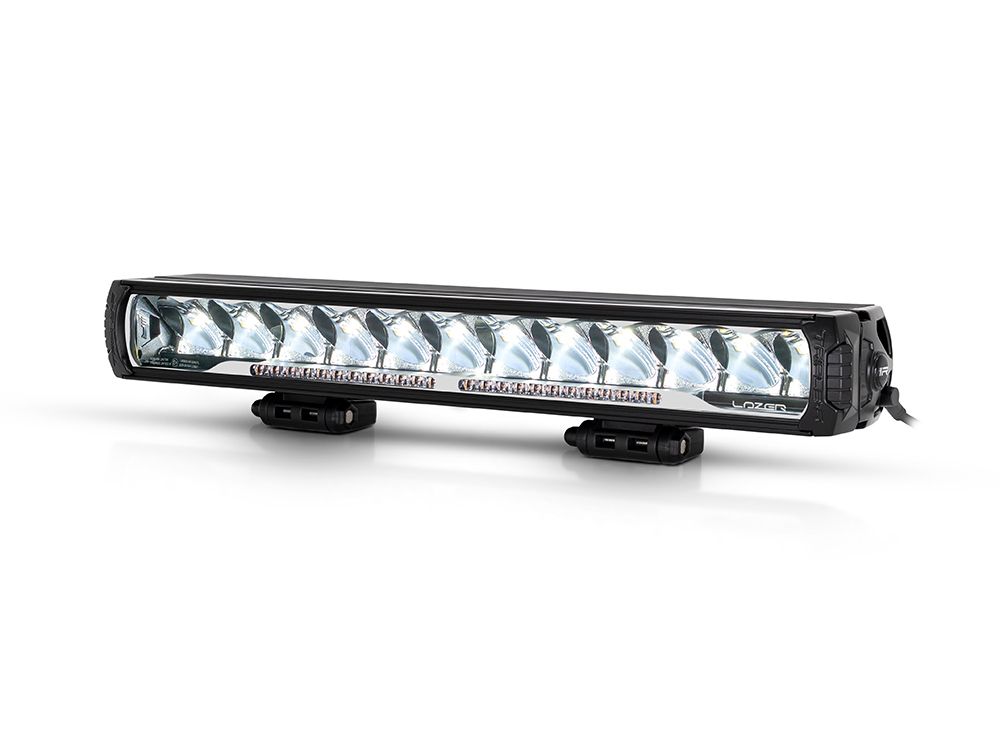

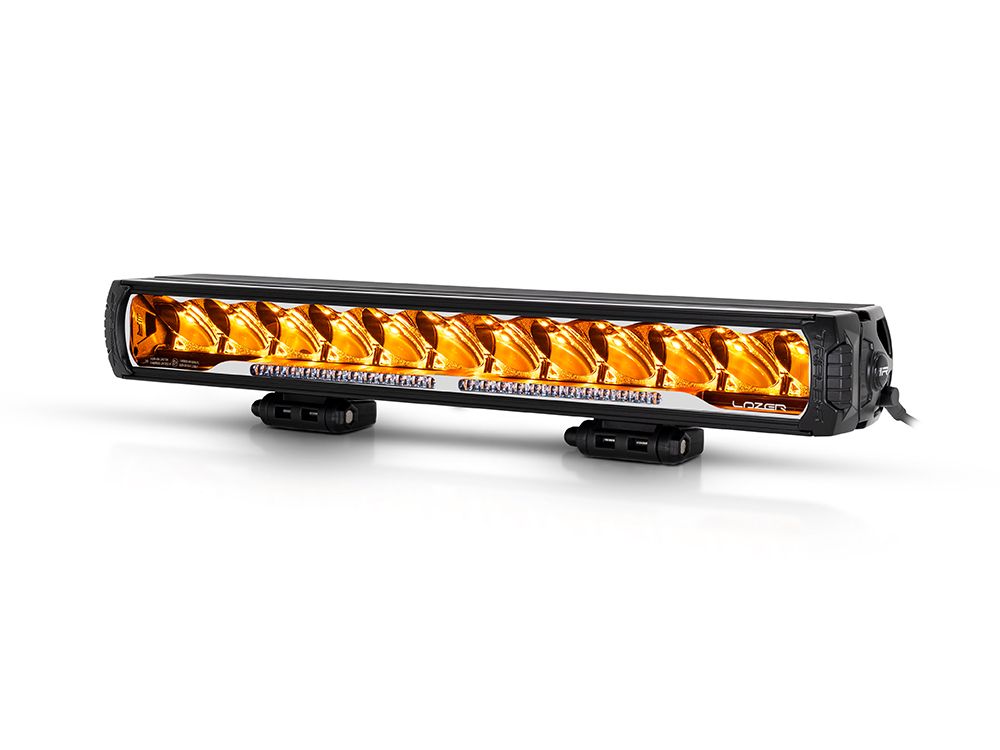

LAZER Triple-R 1250 with Beacon
Produktcode:
00R12-BCN-B
Preis ohne MWSt.:
650,00 €
Preis inkl. MWSt.:
786,50 €
Beschreibung
Grundlagen
| 1x TRIPLE-R 1250 BEACON |
BOOST |
LOW OUTPUT/ |
|---|---|---|
| Voltage Range (DC) | 10-32V | |
| LED Life | 50,000 hours | |
| Weight | 2.4 kg | |
| HIGH BEAM FUNCTION | ||
| Total Luminous Flux | 13,860 Lm | 2,772 Lm |
| Total Driver 'FOV' Flux † | 8,358 Lm | 1,672 Lm |
| Colour Temperature | 5000K | |
| Power Consumption | 125 Watts | 25 Watts |
| Peak Current Draw | 10 Amps | 2 Amps |
| Current Draw (14.4V) | 8.7 Amps | 1.7 Amp |
| Connector | 6-Pin Superseal (+20cm Cable) | |
| DIMENSIONS | ||
| Width | 411 mm | |
| Depth | 106 mm | |
| Height | 82 mm | |
| CERTIFICATION | ||
| IP Rating # | IP68 | |
| High Beam (E9 approval) | ECE R149 - Ref: 20 (in Low Output Mode only) | |

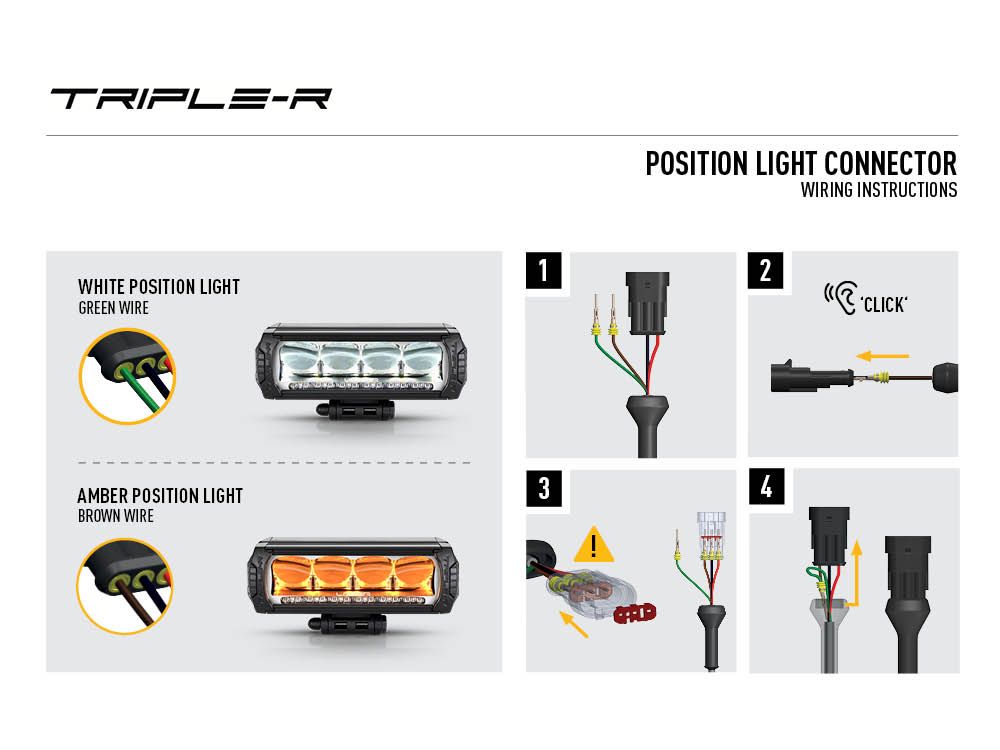

| Position Light (white only) | ECE R148 | |
| Beacon Function | ECE R65 (XA1) | |
| EMC Certification | ECE R10 | |
| Salt Spray Test | ISO 9227 | |
| Dump Load Protection | ISO 7637-2 | |

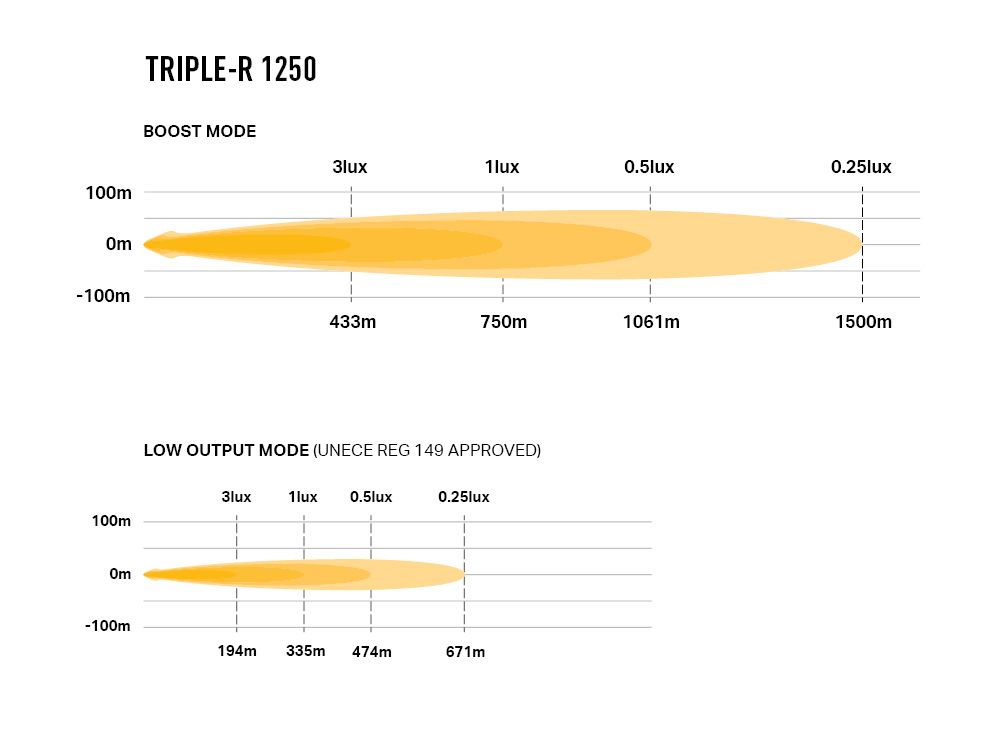

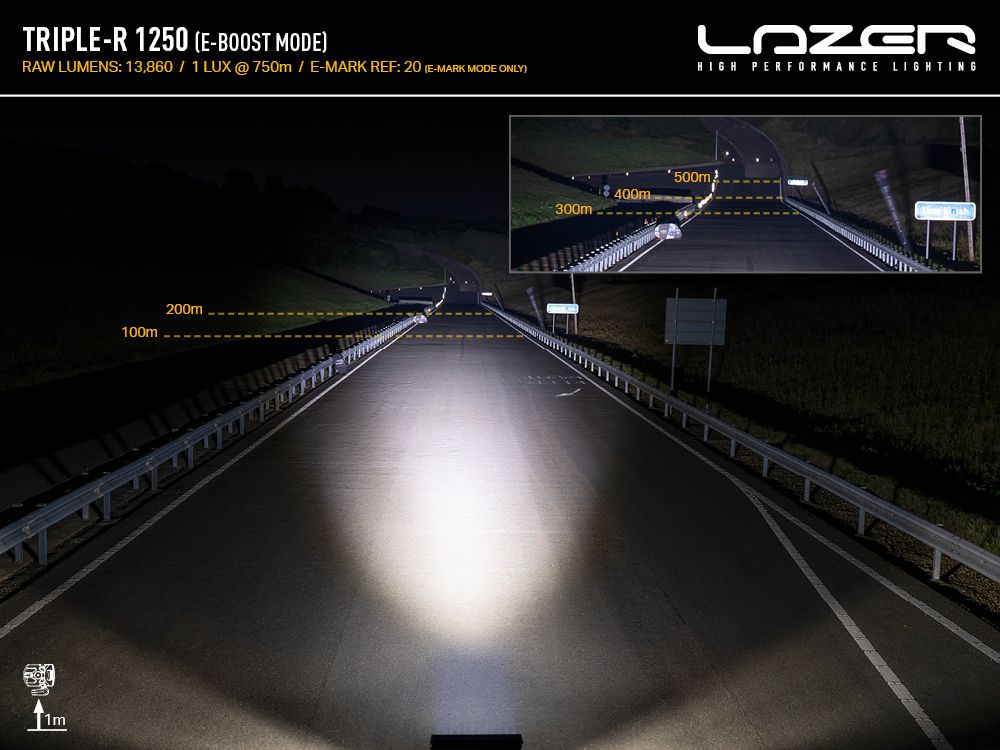

| PHOTOMETRIC DATA | ||

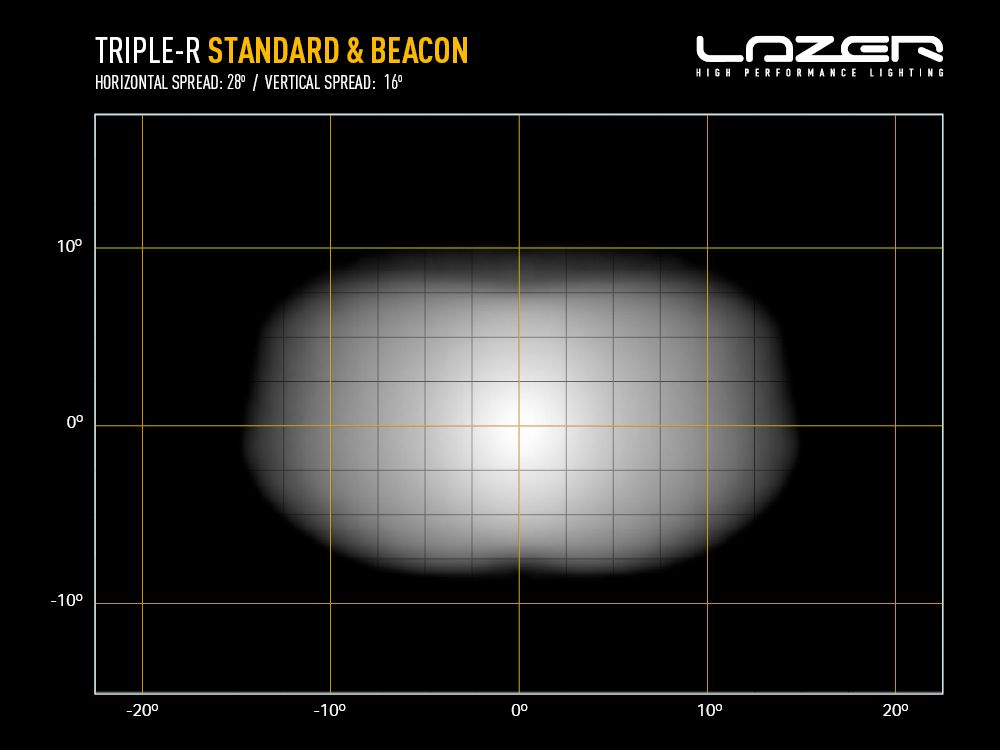

| Horizontal / Vertical Beam Angle | 28° / 16° | |
| 0.25 lx Line | 1500m | 671m |
| 0.5 lx Line | 1061m | 474m |
| 1 lx Line | 750m | 335m |
| 3 lx Line | 433m | 194m |
Hersteller:
LAZER Lamps
Garantie (Monate):
60
