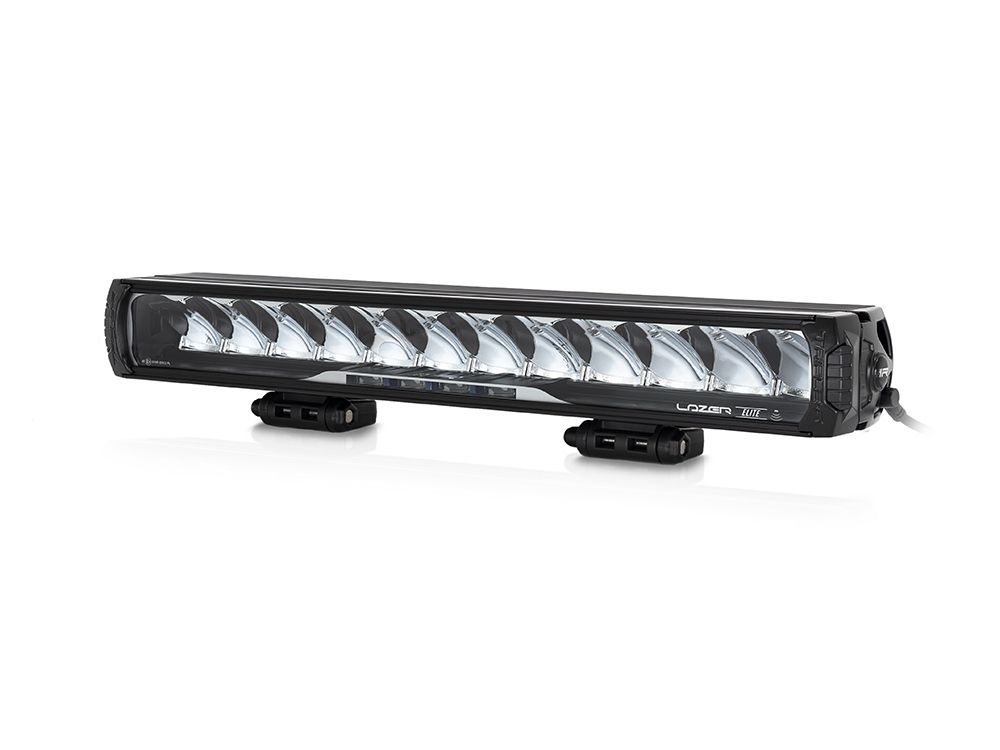

LAZER Triple-R 1250 Elite with LBA

LAZER Triple-R 1250 Elite with LBA
Produktcode:
00R12-LBA-B
Preis ohne MWSt.:
625,00 €
Preis inkl. MWSt.:
756,25 €
Beschreibung



Technical Specifications

Based on: 1x Triple-R 1250 Elite with i-LBA.

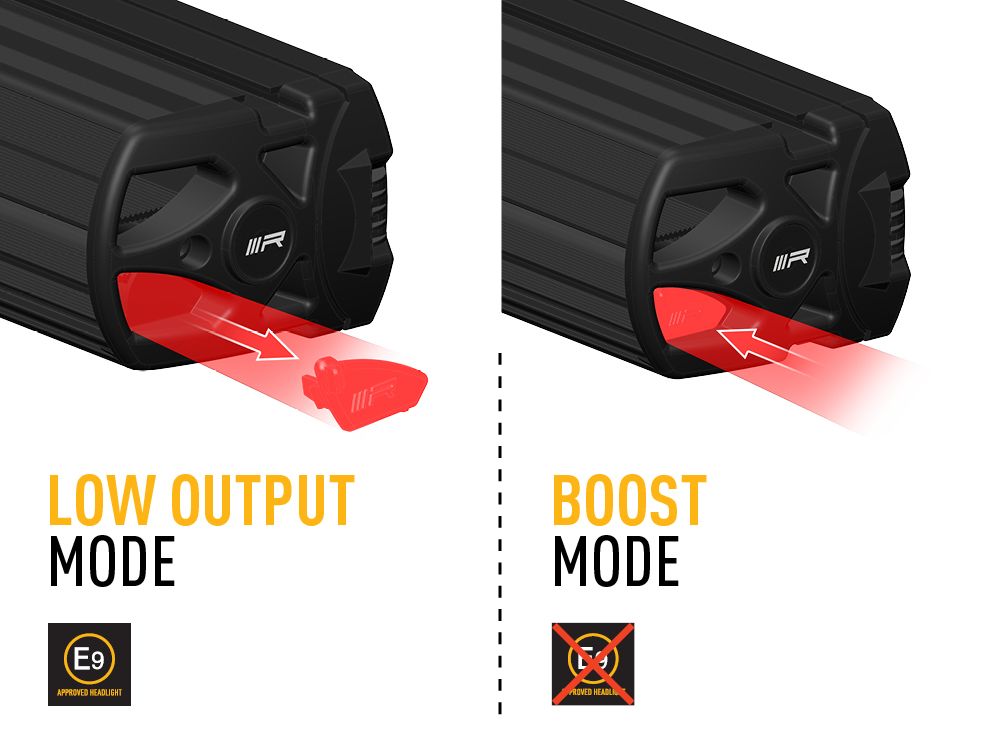

  Boost
Mode		 Low Output Mode
Voltage Range (DC) 10-32V 10-32V
LED Life 50,000 hrs 50,000 hrs
Weight 2.4 kg 2.4 kg
HIGH BEAM FUNCTION
Total Luminous Flux

16136 Lm

4602 Lm
Total Driver 'FOV' Flux † 8657 Lm 2469 Lm
Colour Temperature 5000k 5000k
Number of High Output LEDs 36 36
Power Consumption 151 Watts 35 Watts
Peak Current Draw (@11V) 15 Amps N/A
Current Draw (@14.4V) 10.5 Amps 1.7 Amps
CERTIFICATION
High Beam N/A ECE R112
E-Mark Ref N/A 40

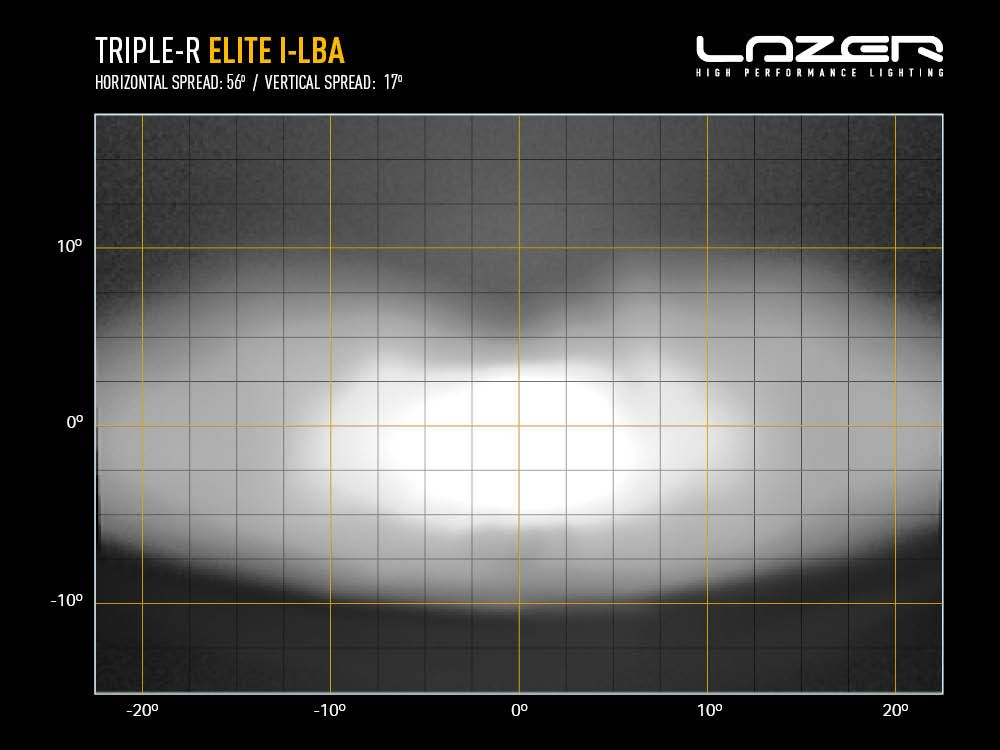

PHOTOMETRIC DATA
Horiz Beam Angle 56 Deg 56 Deg
0.25 lx Line 1652m 905m
0.5 lx Line 1168m 640m
1 lx Line 826m 452m
3 lx Line 477m 261m

Grundlagen
Hersteller:
LAZER Lamps
Garantie (Monate):
60
