LAZER Triple-R 1250 Elite +

LAZER Triple-R 1250 Elite +
Produktcode:
00R12-G2-PLUS-B
Preis ohne MWSt.:
810,00 €
Preis inkl. MWSt.:
980,10 €
Beschreibung



Technical Specifications

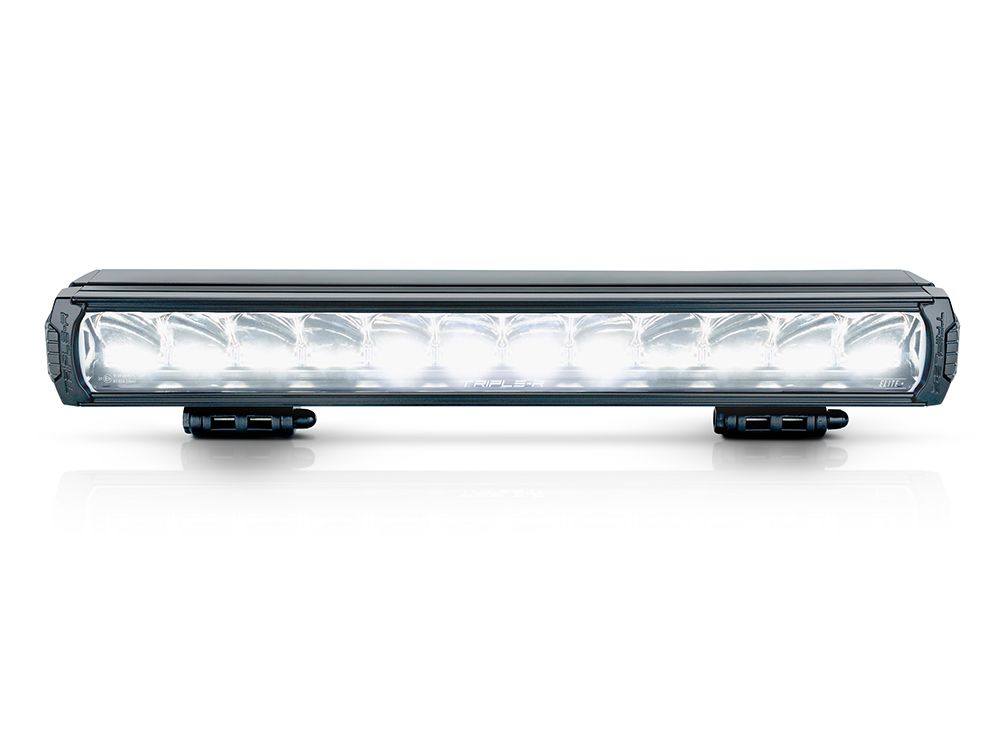

Based on: 1x Triple-R 1250 Elite+ LED Lamp.

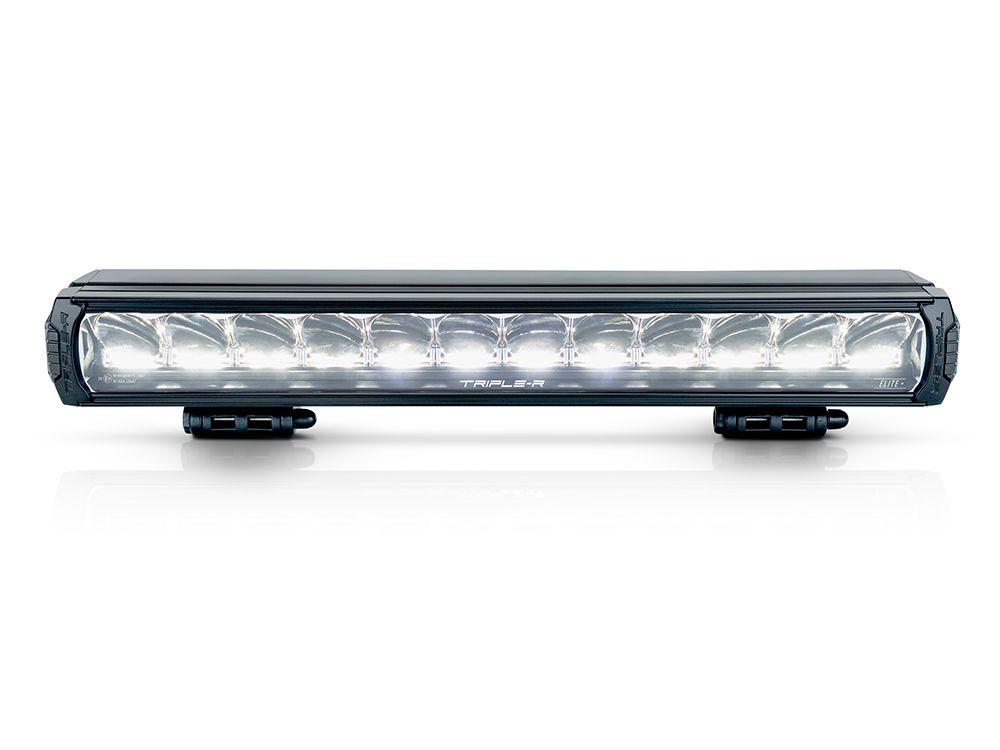

  White LED's
(E-Boost /

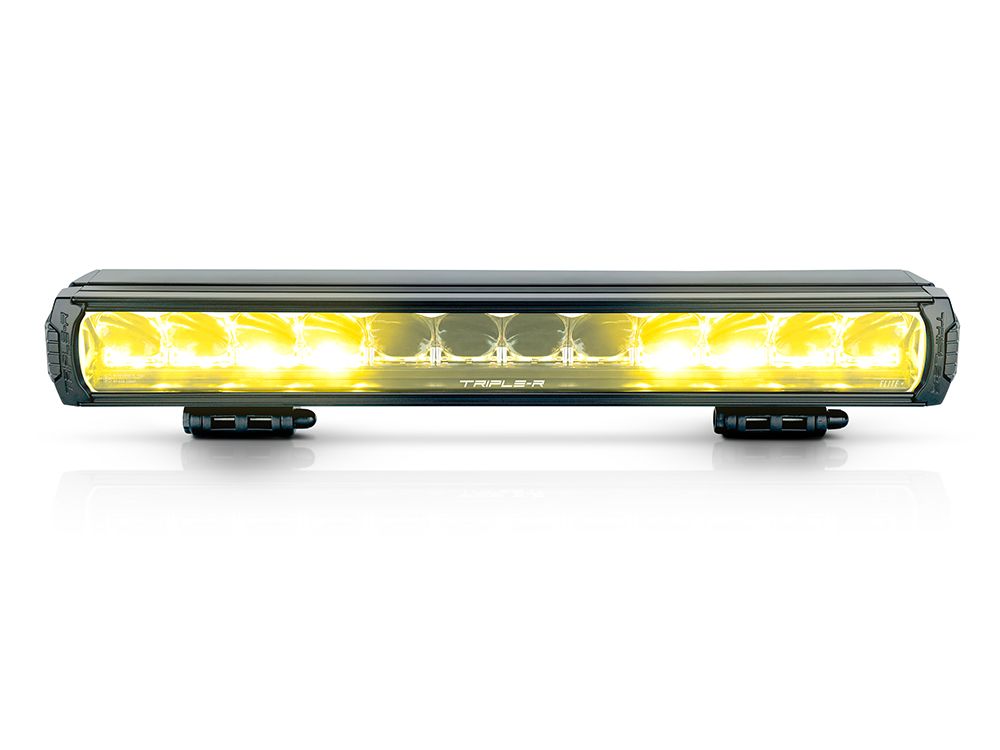

E-Mark Mode)		 Yellow LED's

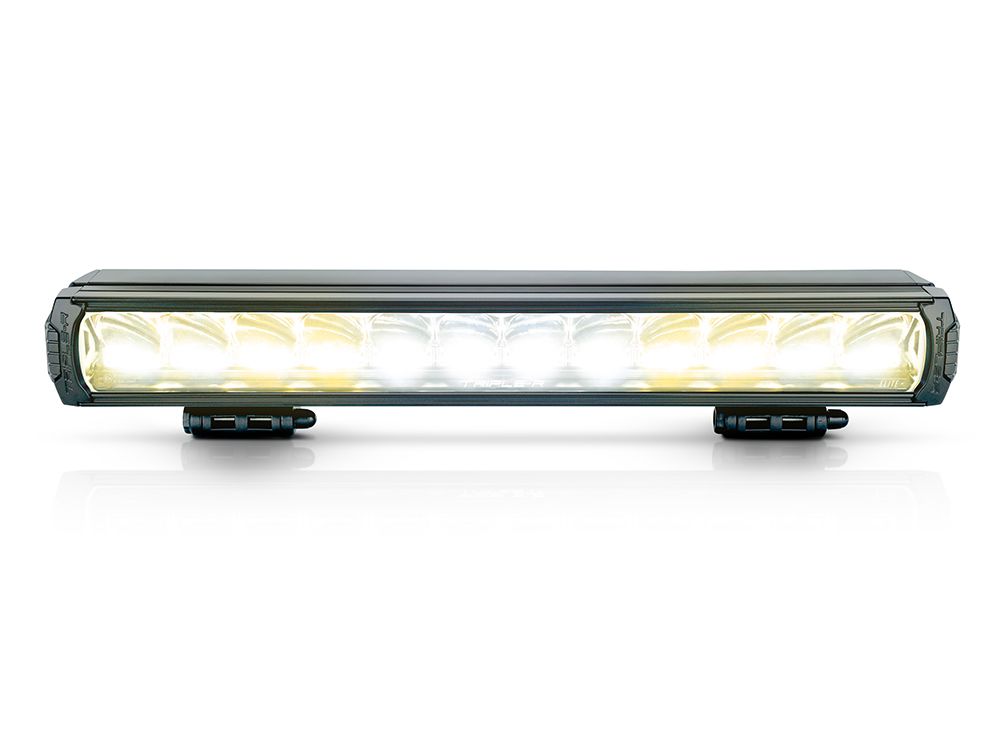

(Fog / Dust / Snow Mode)		 White & Yellow LED's
(Combo Mode)
Voltage Range (DC) 10-32V 10-32V 10-32V
LED Life 50,000 hours 50,000 hours 50,000 hours
Weight 2.4 kg 2.4 kg 2.4 kg
HIGH BEAM FUNCTION
Total Luminous Flux 12028 / 2045 9360 21388
Total Driver 'FOV' Flux † 7464 / 1269 5273 12737
Colour Temperature 5000K PC Yellow N/A
Number of High Output LEDs 24 20 24 White / 20 Yellow
Power Consumption 131 W / 19.6 W 92 W 243 W
Current Draw 9.1 A / 1.4 A 6.4 A 16.9 A
Peak Current Draw 12 A / 1.8 A 8.5 A 22.8 A
CERTIFICATION
High Beam ECE R149 N/A
ECE Reference 20
Position Light / Backlight ECE R7

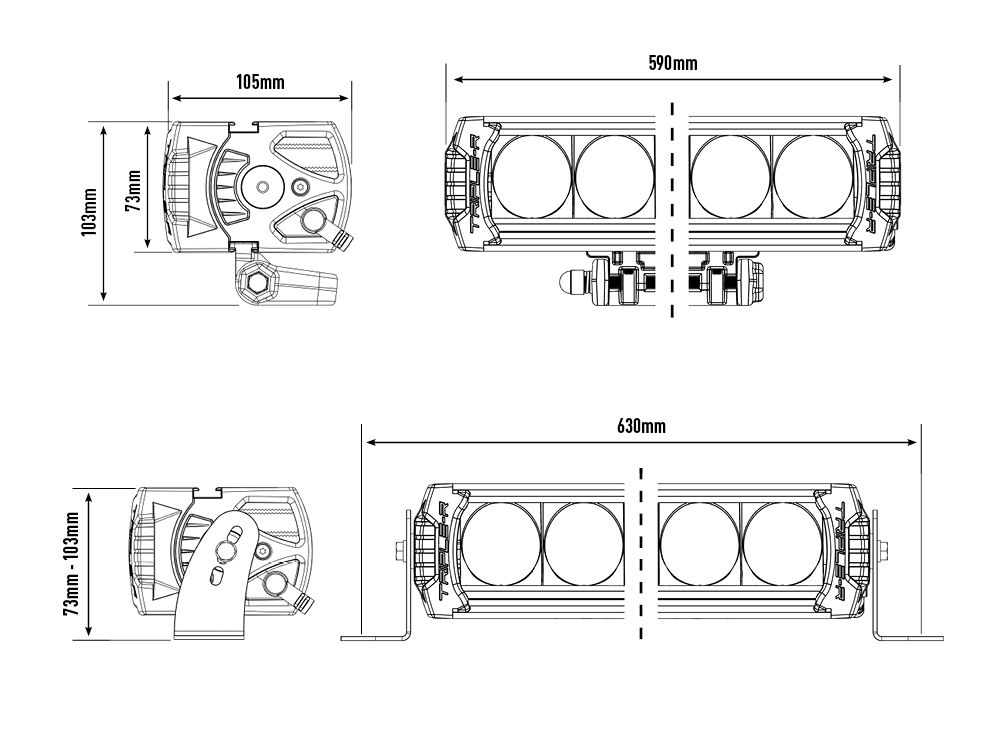

DIMENSIONS
Width 590mm 590mm 590mm
Depth 105mm 105mm 105mm
Height 73mm 73mm 73mm

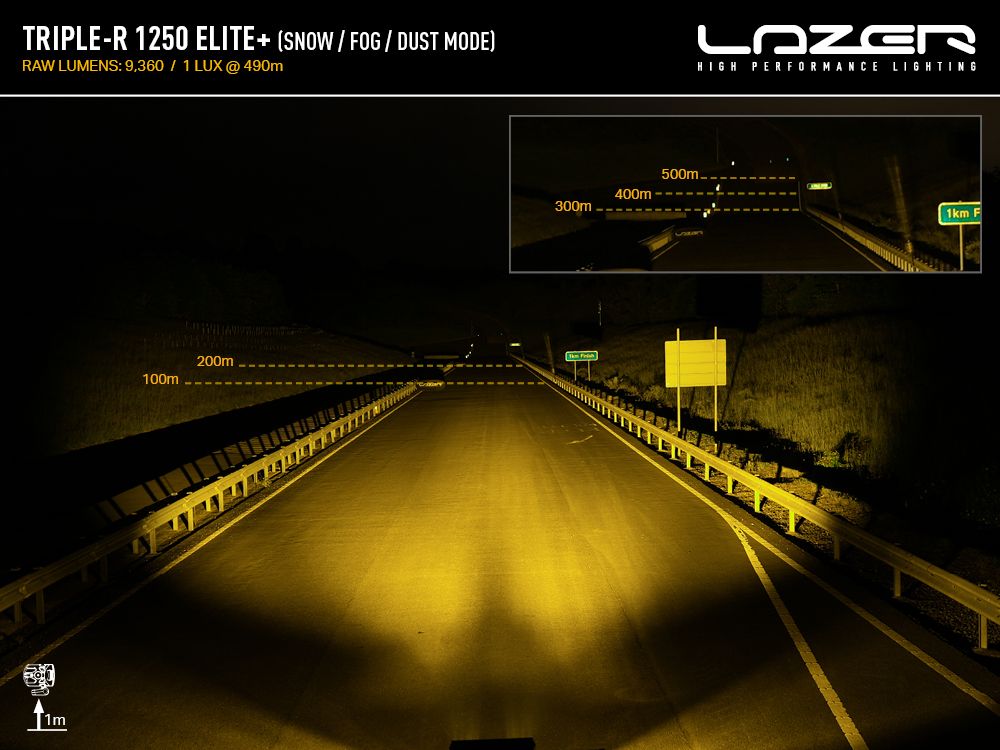

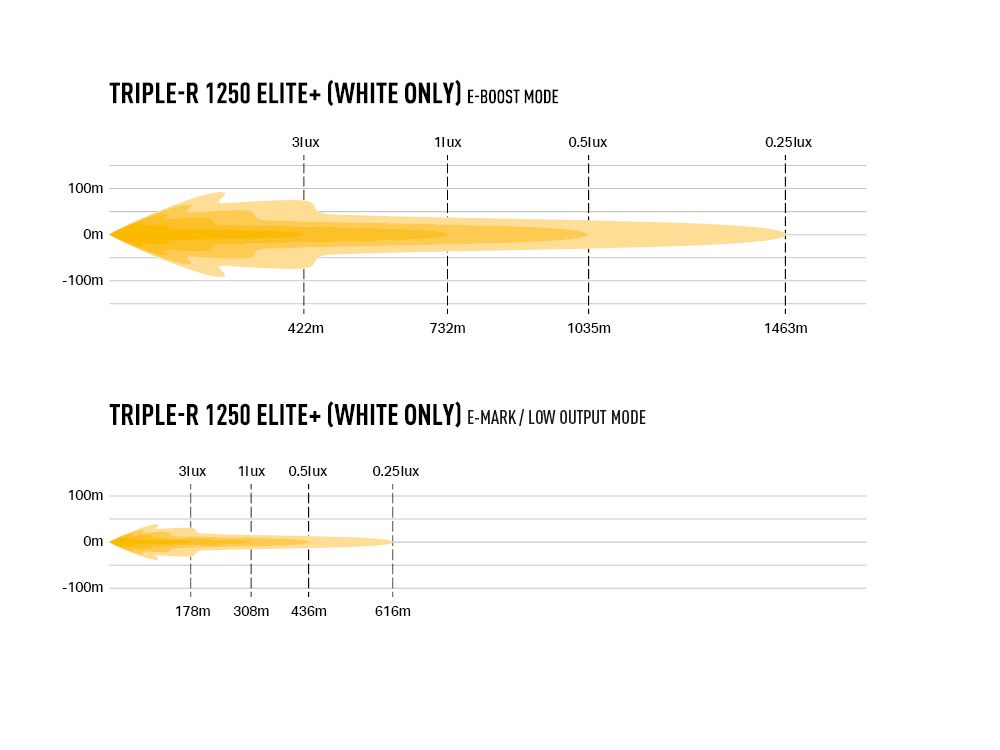

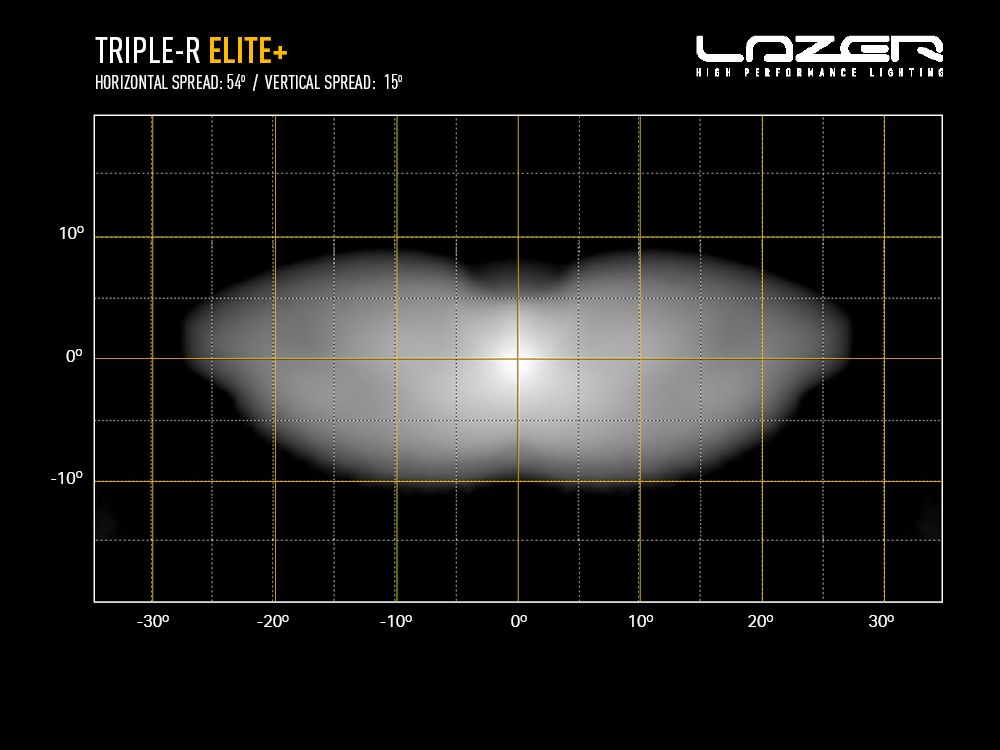

PHOTOMETRIC DATA
Horizontal Beam Angle 54° 54° 54°
0.25 lx Line 1470m / 616m 980m 1649m
0.5 lx Line 1039m / 436m 693m 1166m

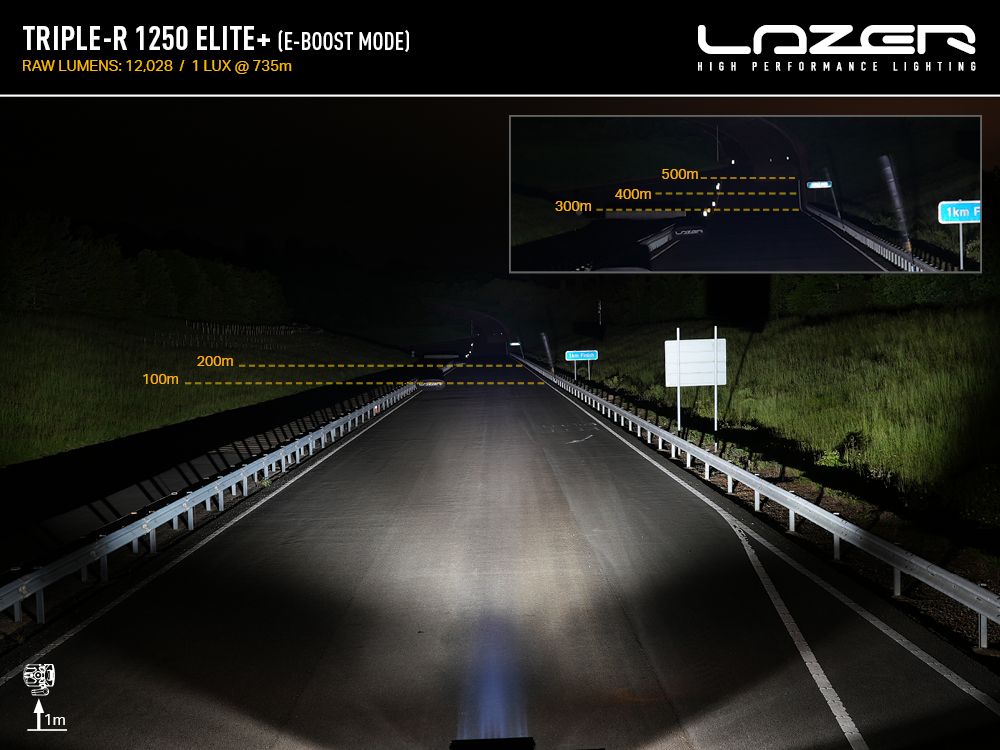

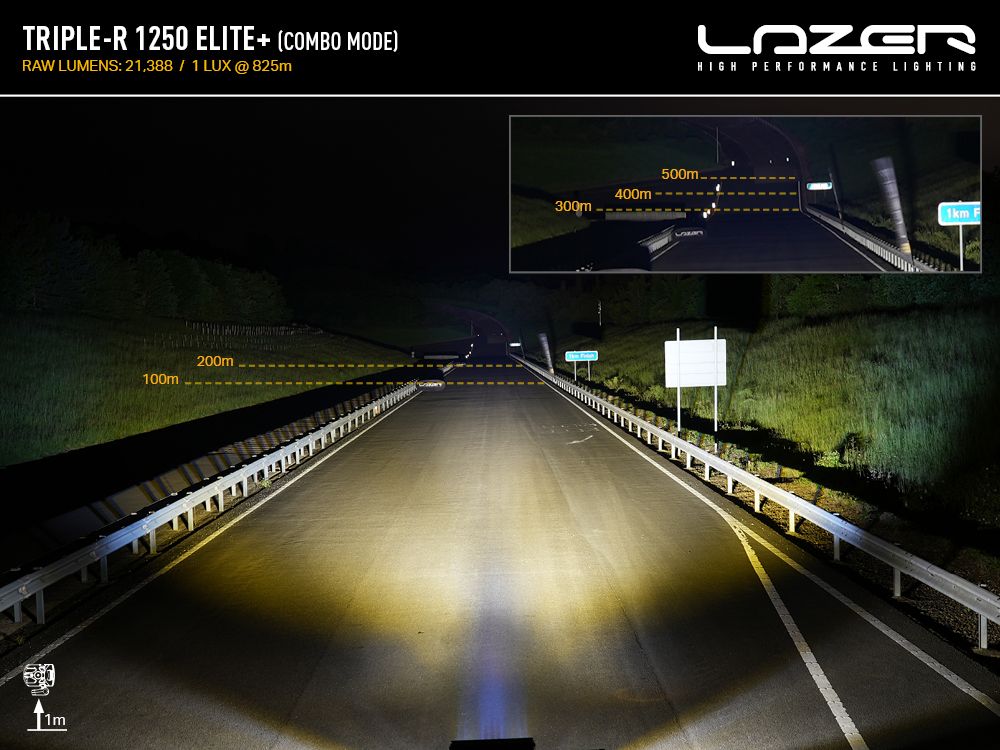

1 lx Line 735m / 308m 490m 825m
3 lx Line 424m / 178m 283m 476m

Grundlagen
Hersteller:
LAZER Lamps
Garantie (Monate):
60
