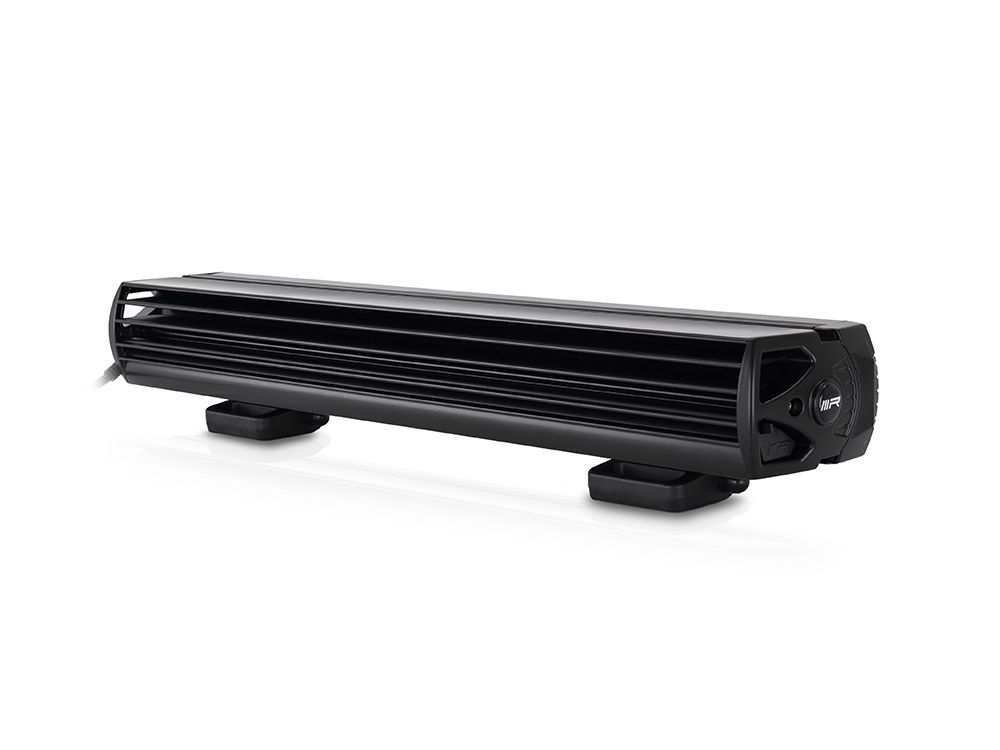

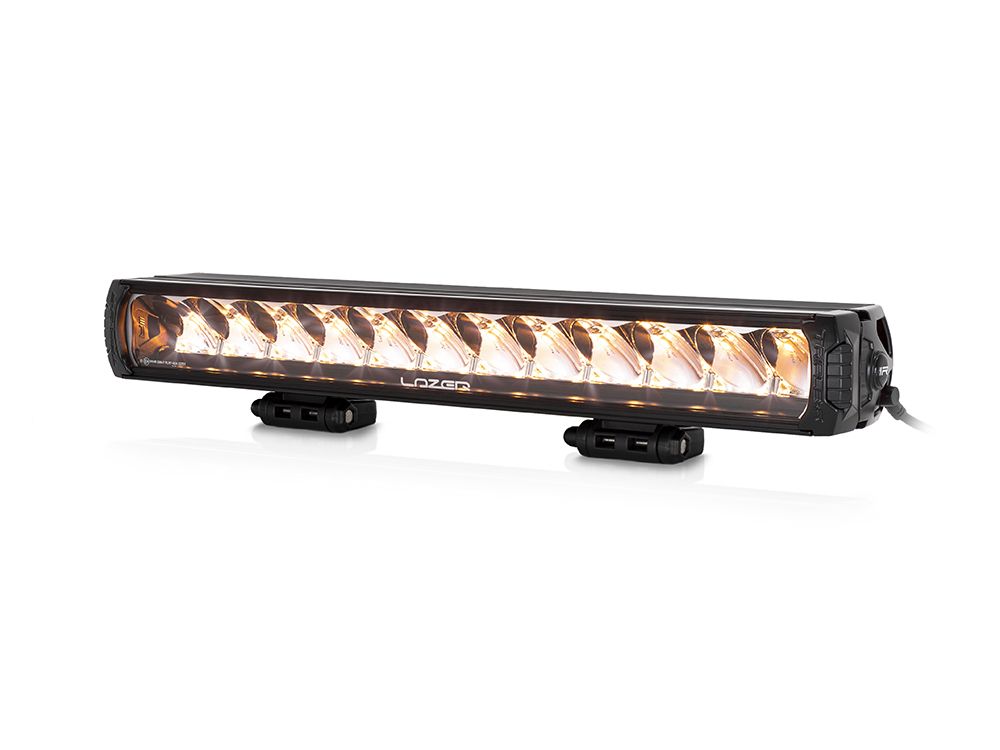

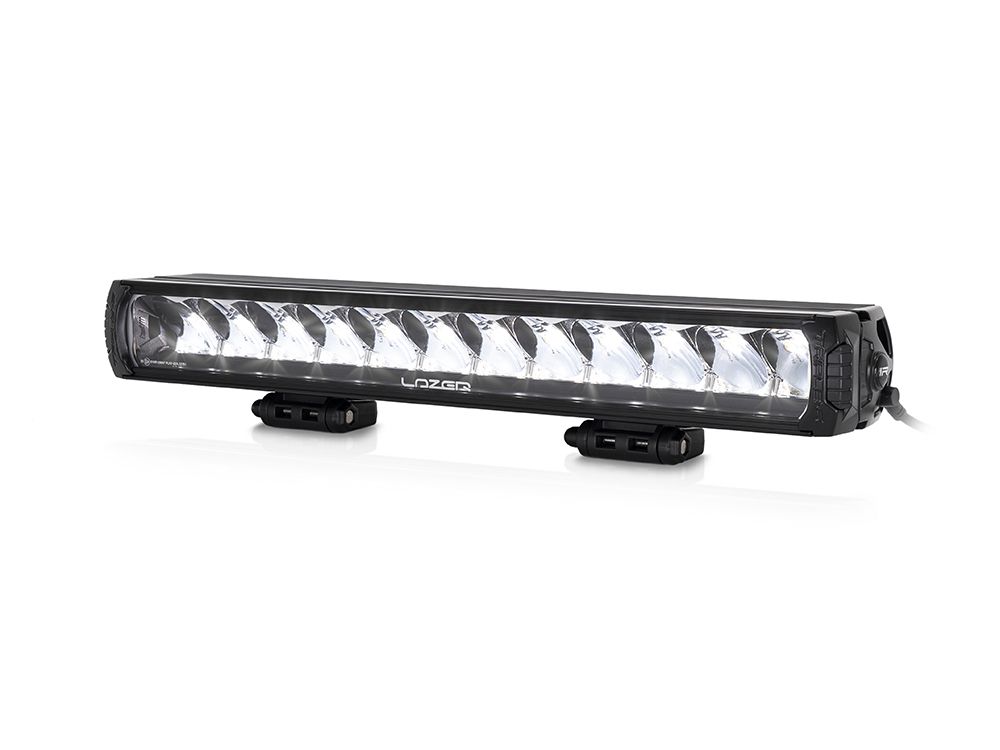

LAZER Triple-R 1250
Produktcode:
00R12-G2-B
Preis ohne MWSt.:
570,00 €
Preis inkl. MWSt.:
689,70 €
Beschreibung
Grundlagen

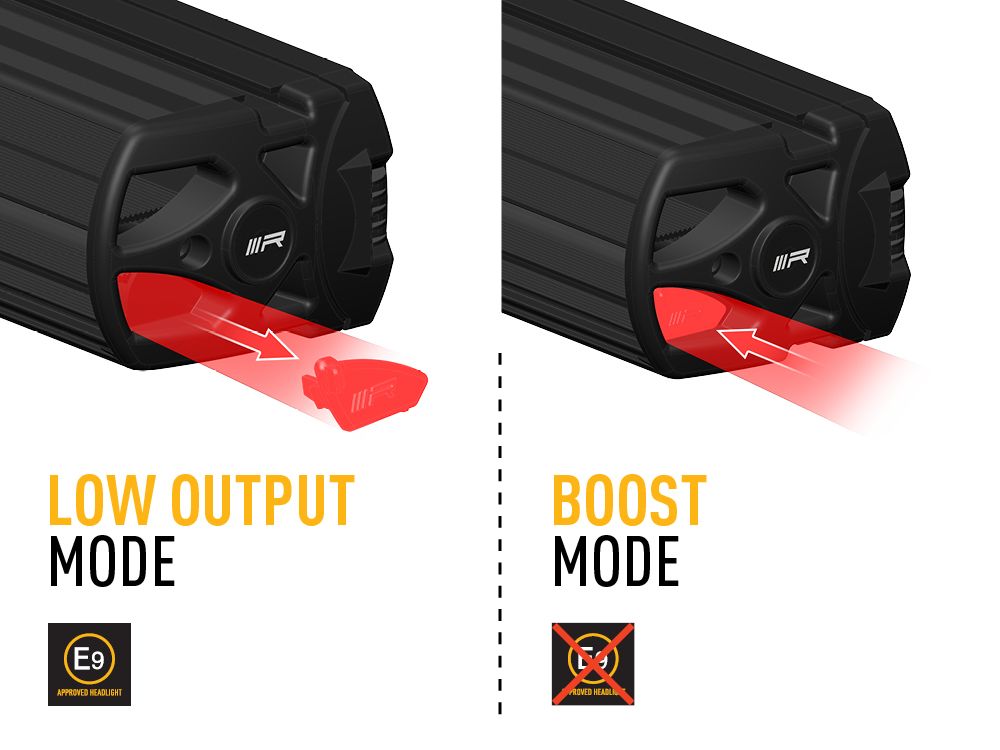

| Boost Mode |
Low Output Mode | |
| Voltage Range (DC) | 10-32V | 9-32V |
| LED Life | 50,000 hrs | 50,000 hrs |
| Weight | 2.4 kg | 2.4 kg |
| HIGH BEAM FUNCTION | ||
| Total Luminous Flux |
13860 Lm |
2772 Lm |
| Total Driver 'FOV' Flux † | 8358 Lm | 1672 Lm |
| Colour Temperature | 5000k | 5000k |
| Number of High Output LEDs | 12 | 12 |
| Power Consumption | 125 Watts | 25 Watts |
| Current Draw (at 14.4V) | 8.7 Amps | 1.7 Amps |
| CERTIFICATION | ||
| High Beam | N/A | ECE R112 |
| E-Mark Ref | N/A | 20 |
| Position Light (White) | ECE R7 | ECE R7 |

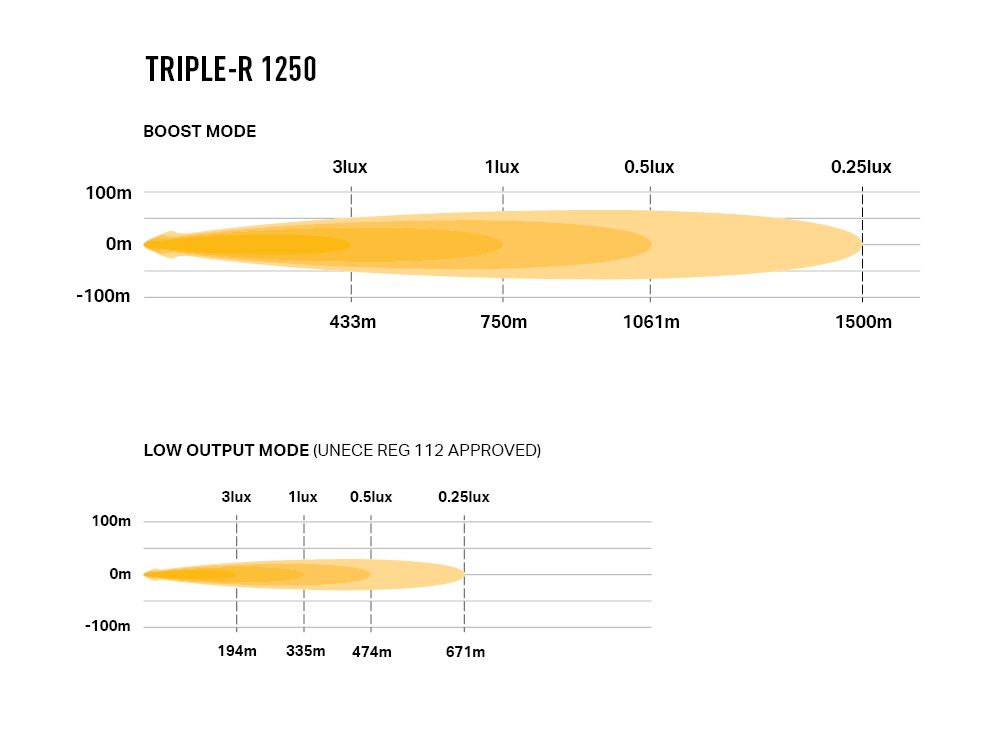

| PHOTOMETRIC DATA | ||

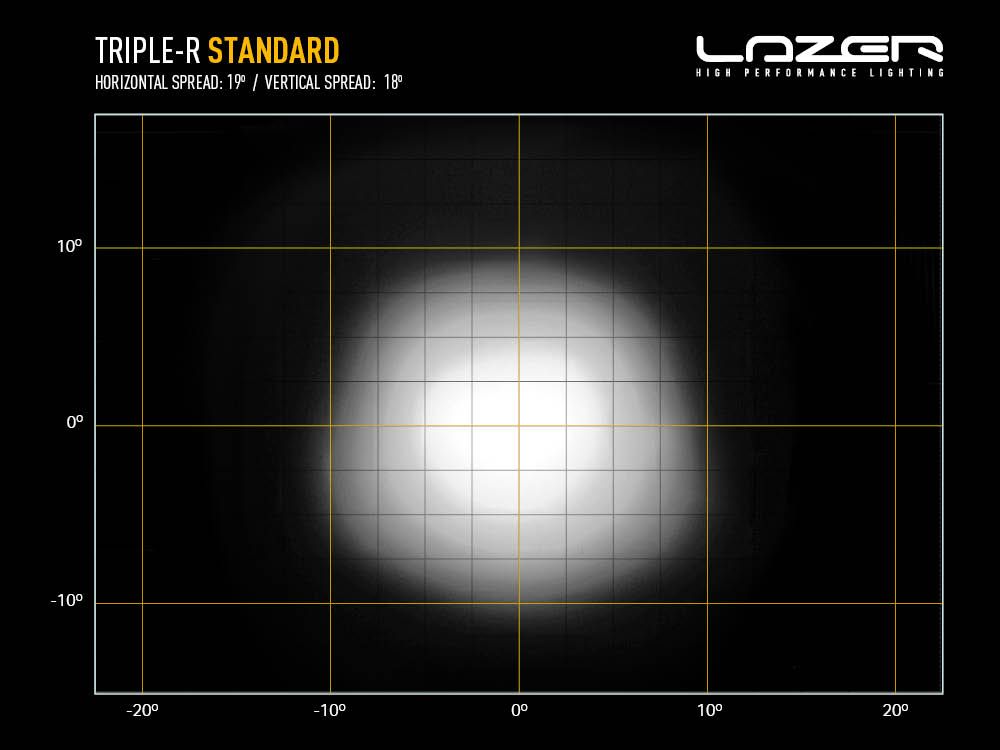

| Horiz Beam Angle | 19 Deg | 19 Deg |
| 0.25 lx Line | 1500 metres | 671 metres |
| 0.5 lx Line | 1061 metres | 474 metres |
| 1 lx Line | 750 metres | 335 metres |
| 3 lx Line | 433 metres | 194 metres |
Hersteller:
LAZER Lamps
Garantie (Monate):
60
