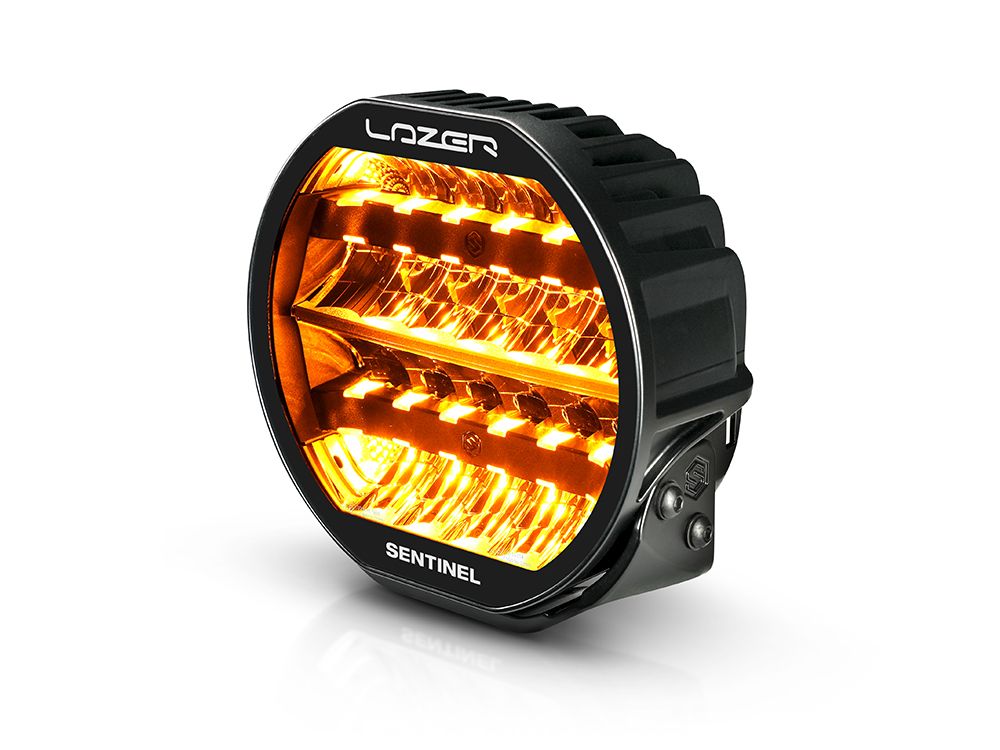

LAZER Sentinel 9" Highline with Beacon
Produktcode:
0S9-HLE-PL2-BCN
Preis ohne MWSt.:
450,00 €
Preis inkl. MWSt.:
544,50 €
Beschreibung
Grundlagen
| Voltage Range (DC) | 10-32V | |
| LED Life | 50,000 hours | |
| Weight | 2.5 kg | |
| HIGH BEAM FUNCTION | ||
| Total Luminous Flux | 17,020 Lm | 3,404 Lm |
| Total Driver 'FOV' Flux † | 9,752 Lm | 1,950 Lm |
| Colour Temperature | 5000K | |
| Power Consumption | 130 Watts | 26 Watts |
| Peak Current Draw | 12 Amps | 2.4 Amps |
| Current Draw (14.4V) | 9.3 Amps | 1.8 Amp |

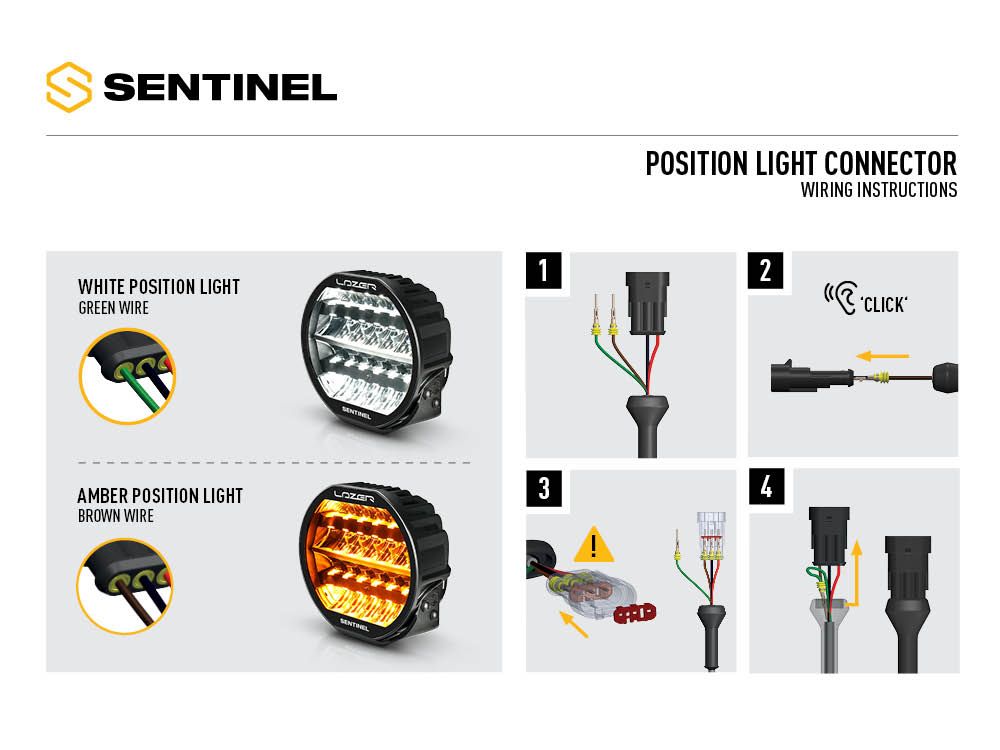

| Connector | 6-Pin Superseal (+25cm Cable) | |

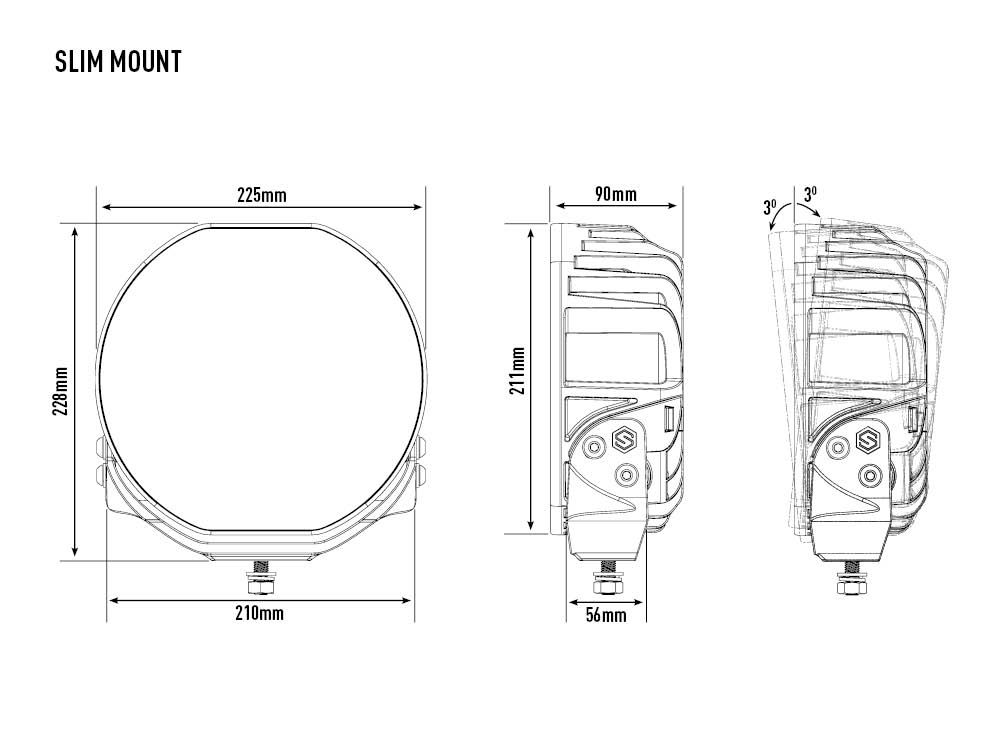

| DIMENSIONS | ||
| Width | 225mm | |
| Depth | 90mm | |
| Height | 230mm | |
| CERTIFICATION | ||
| IP Rating # | IP68 | |
| High Beam (E9 approval) | ECE R149 - Ref: 12.5 (in Low Output Mode only) | |
| Position Light (white only) | ECE R148 | |
| Beacon Function | ECE R65 | |
| EMC Certification | ECE R10 | |
| Salt Spray Test | ISO 9227 | |
| Dump Load Protection | ISO 7637-2 | |

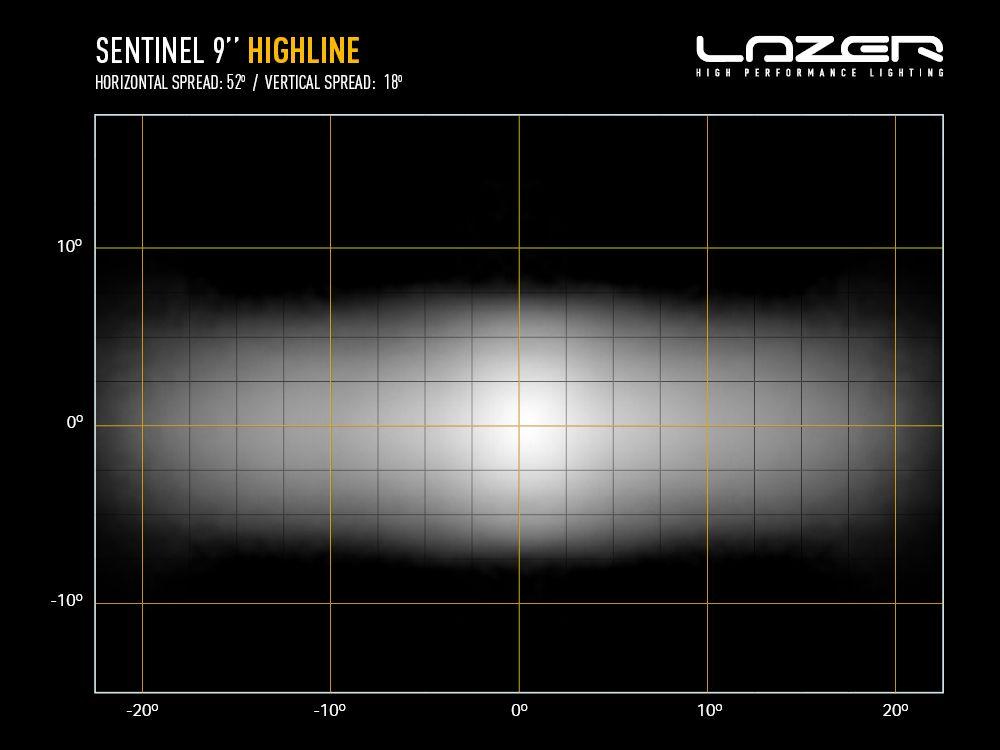

| PHOTOMETRIC DATA | ||
| Horizontal / Vertical Beam Angle | 52° / 18° | |
| 0.25 lx Line | 1166m | 522m |
| 0.5 lx Line | 825m | 369m |
| 1 lx Line | 583m | 261m |
| 3 lx Line | 337m | 151m |
Hersteller:
LAZER Lamps
Garantie (Monate):
60
