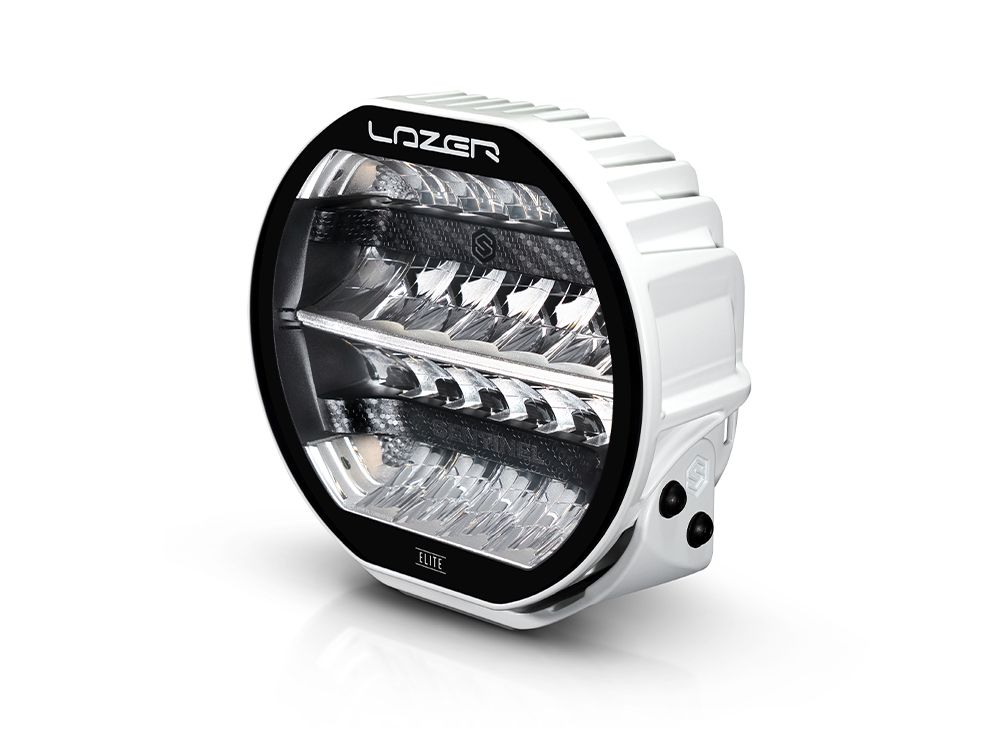

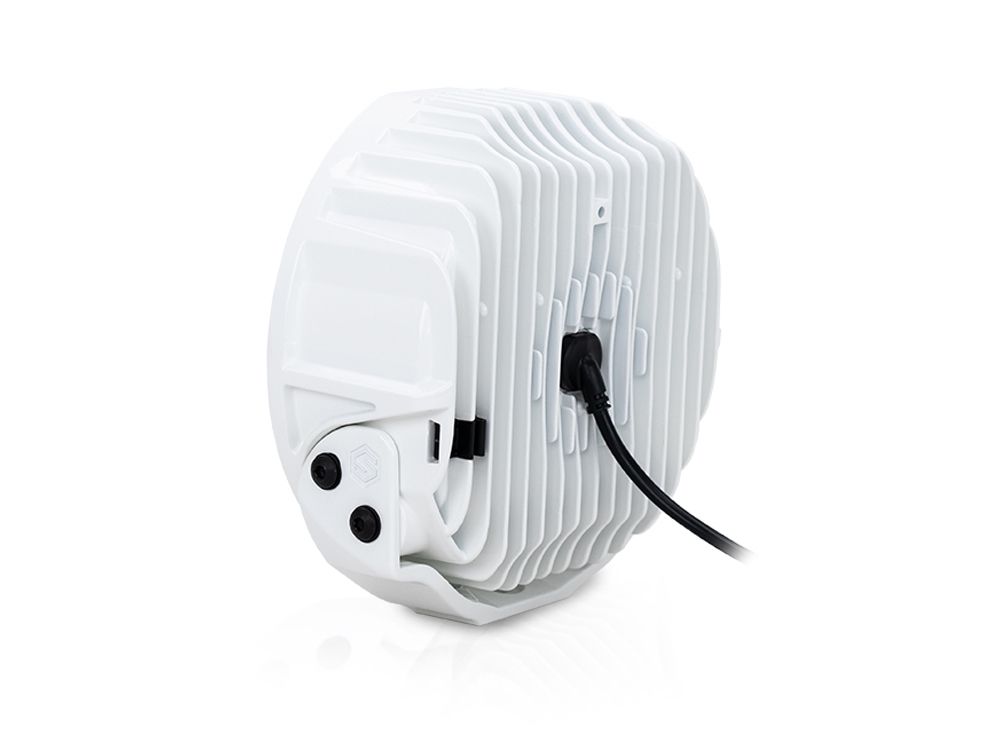

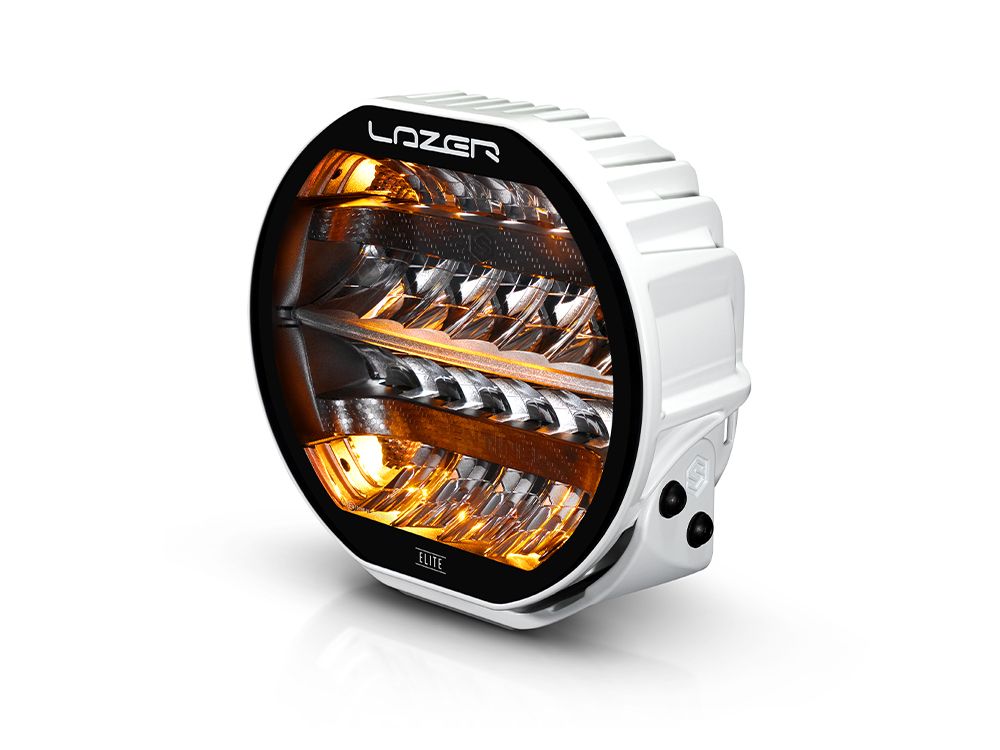

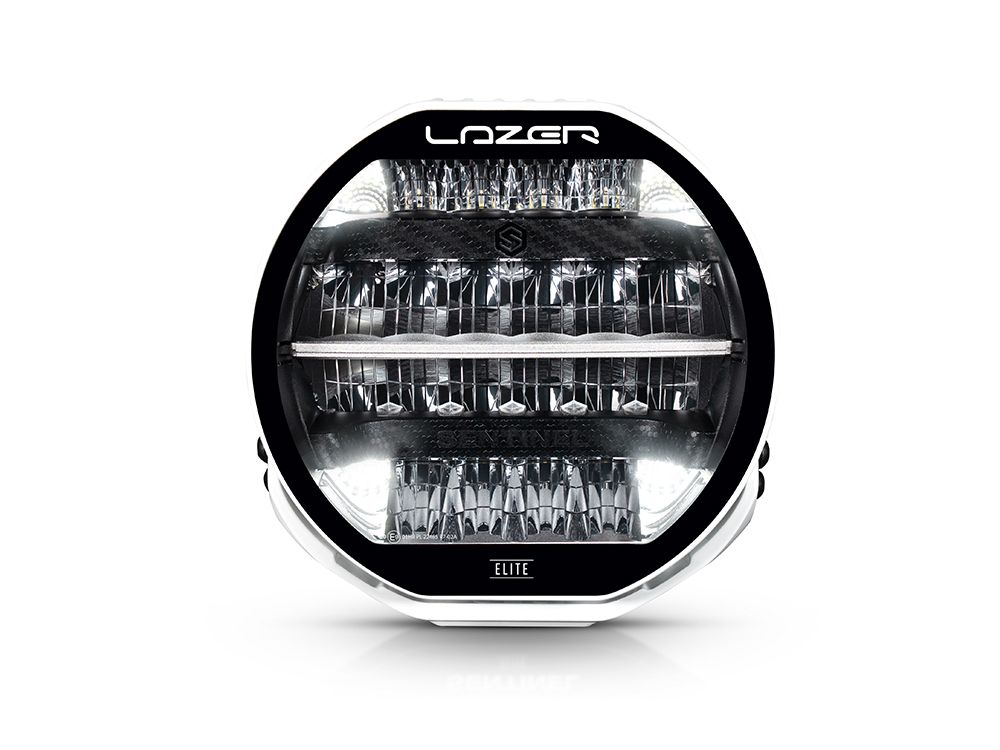

LAZER Sentinel 9" Elite
Produktcode:
0S9-PL-ELITE-WHT
Preis ohne MWSt.:
510,00 €
Preis inkl. MWSt.:
617,10 €
Beschreibung
Grundlagen
| Voltage Range (DC) | 10-32V | |
| LED Life | 50,000 hours | |
| Weight | 2.5 kg | |
| HIGH BEAM FUNCTION | ||
| Total Luminous Flux | 15,232 Lm | 3,046 Lm |
| Total Driver 'FOV' Flux † | 9,048 Lm | 1,809 Lm |
| Colour Temperature | 5000K | |
| Power Consumption | 145 Watts | 29 Watts |
| Peak Current Draw | 15.1 Amps | 3 Amps |
| Current Draw (14.4V) | 10.1 Amps | 2 Amp |
| Connector | 3-Pin Superseal (+25cm Cable) | |

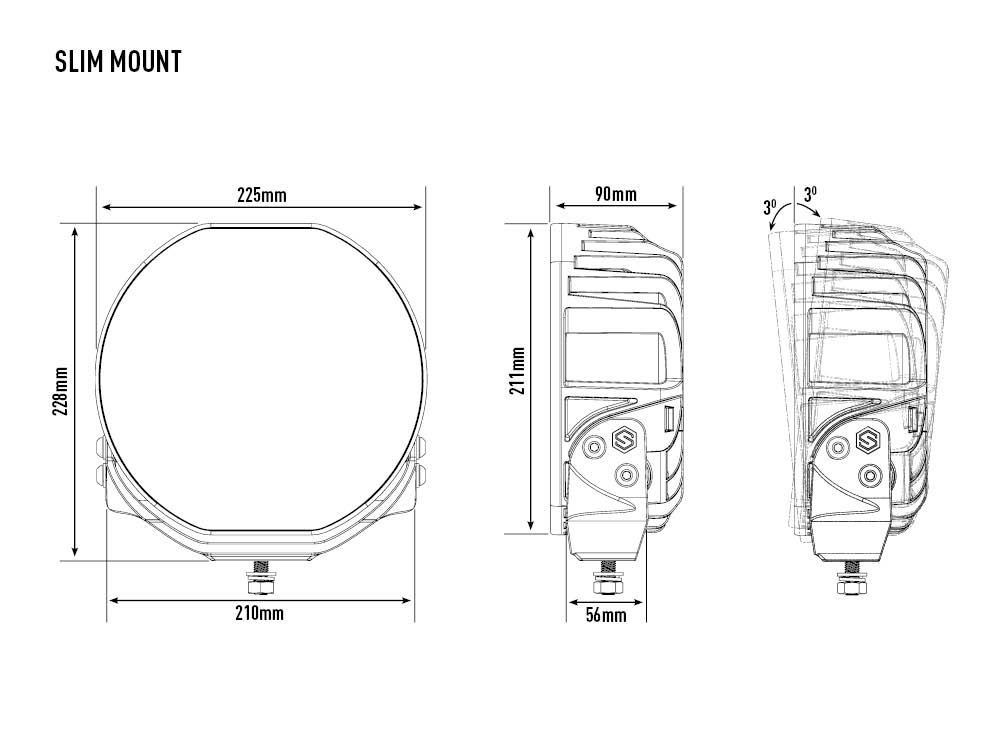

| DIMENSIONS | ||
| Width | 225mm | |
| Depth | 90mm | |
| Height | 230mm | |
| CERTIFICATION | ||
| IP Rating # | IP68 | |

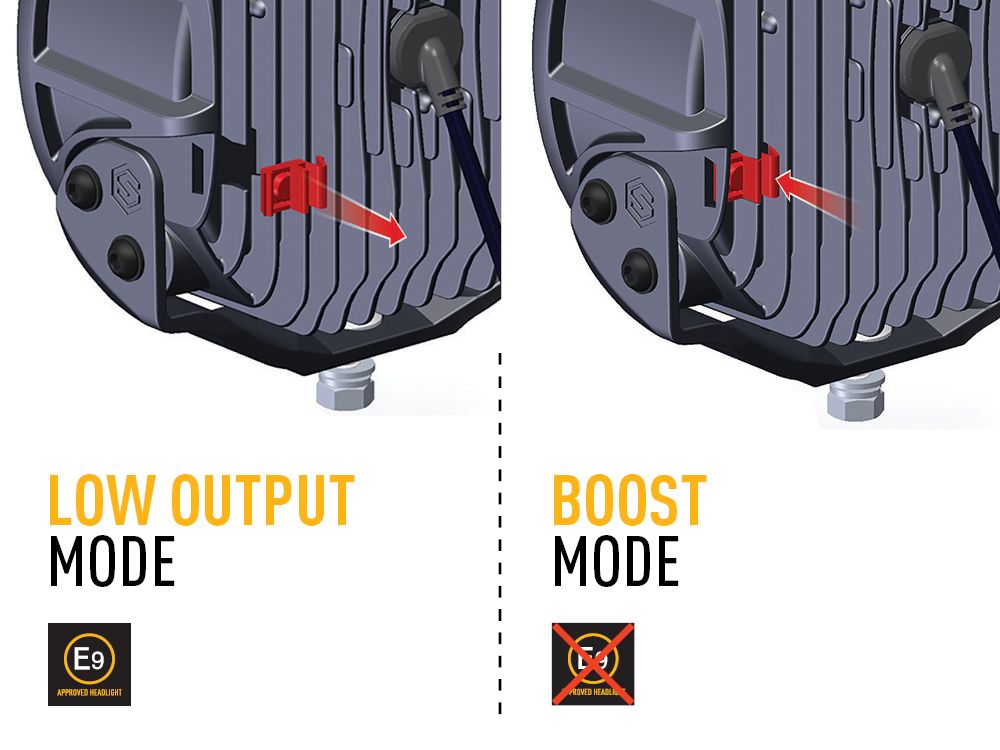

| High Beam (E9 approval) | ECE R112 - Ref: 20 (in Low Output Mode only) | |
| Position Light (white only) | ECE R148 | |
| EMC Certification | ECE R10 | |
| Salt Spray Test | ISO 9227 | |
| Dump Load Protection | ISO 7637-2 | |

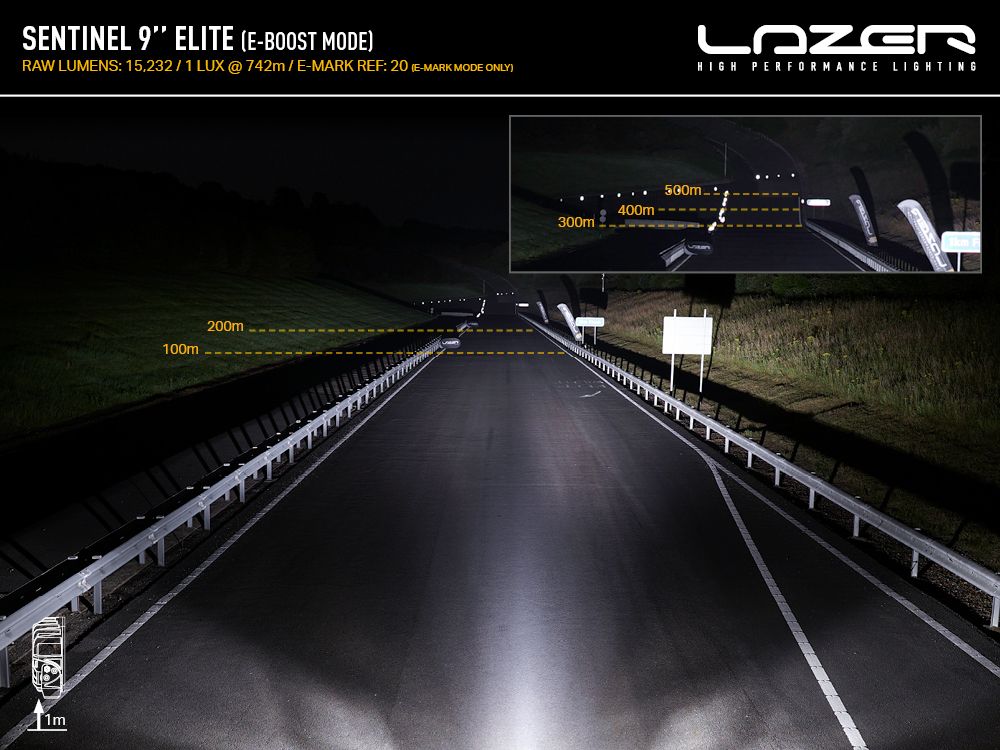

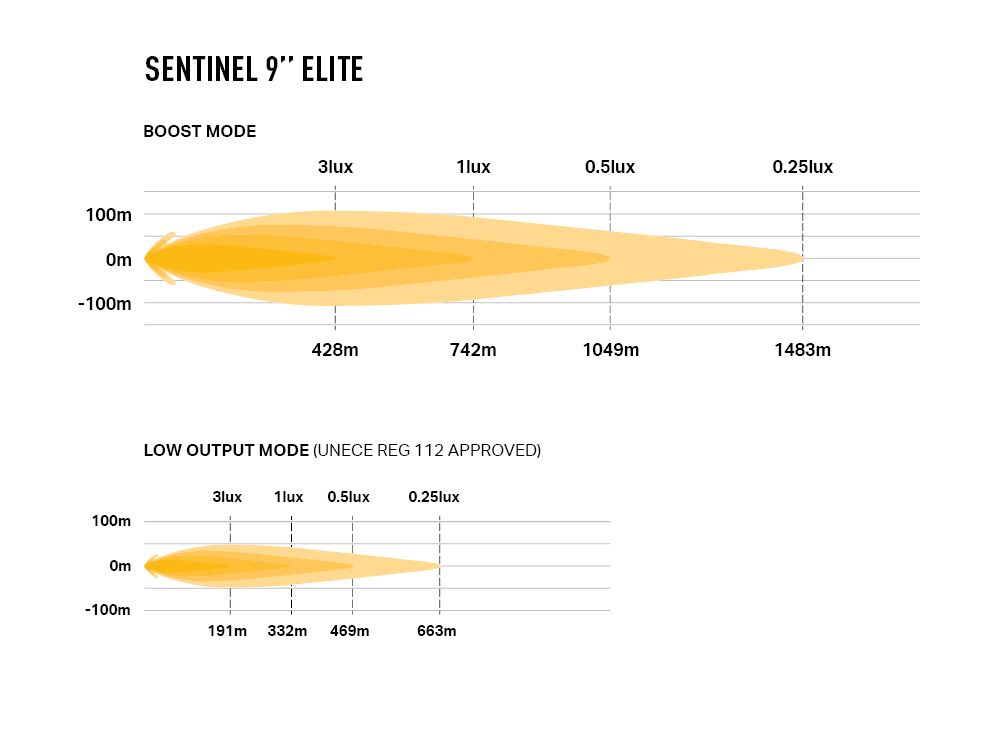

| PHOTOMETRIC DATA | ||

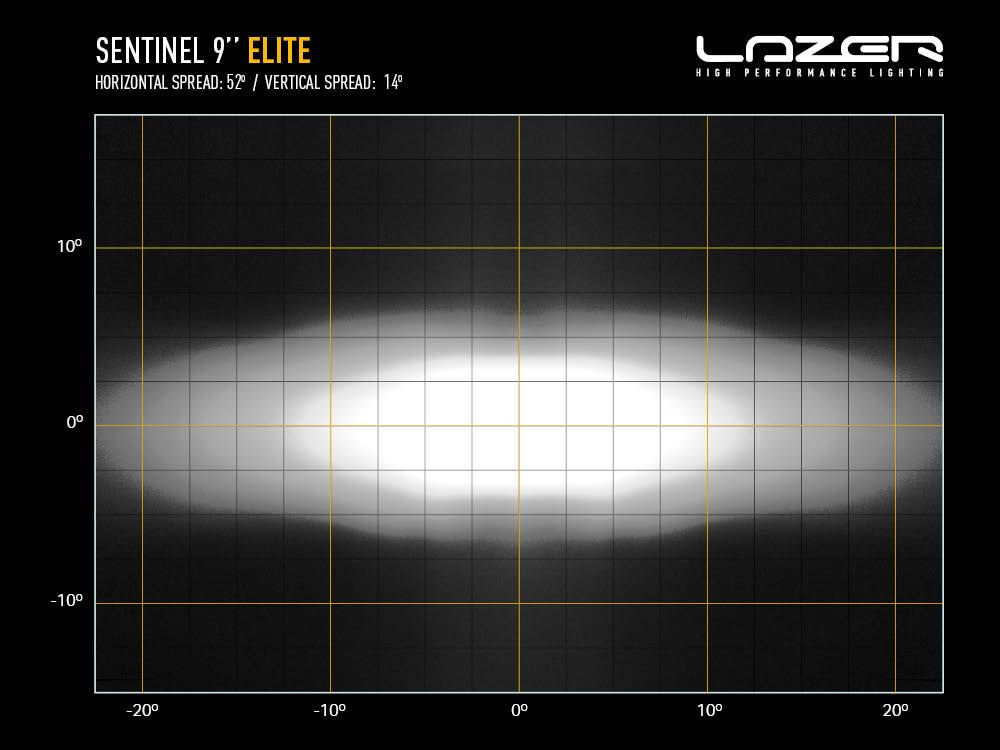

| Horizontal / Vertical Beam Angle | 52° / 14° | |
| 0.25 lx Line | 1483m | 663m |
| 0.5 lx Line | 1049m | 469m |
| 1 lx Line | 742m | 332m |
| 3 lx Line | 428m | 191m |
Hersteller:
LAZER Lamps
Garantie (Monate):
60
