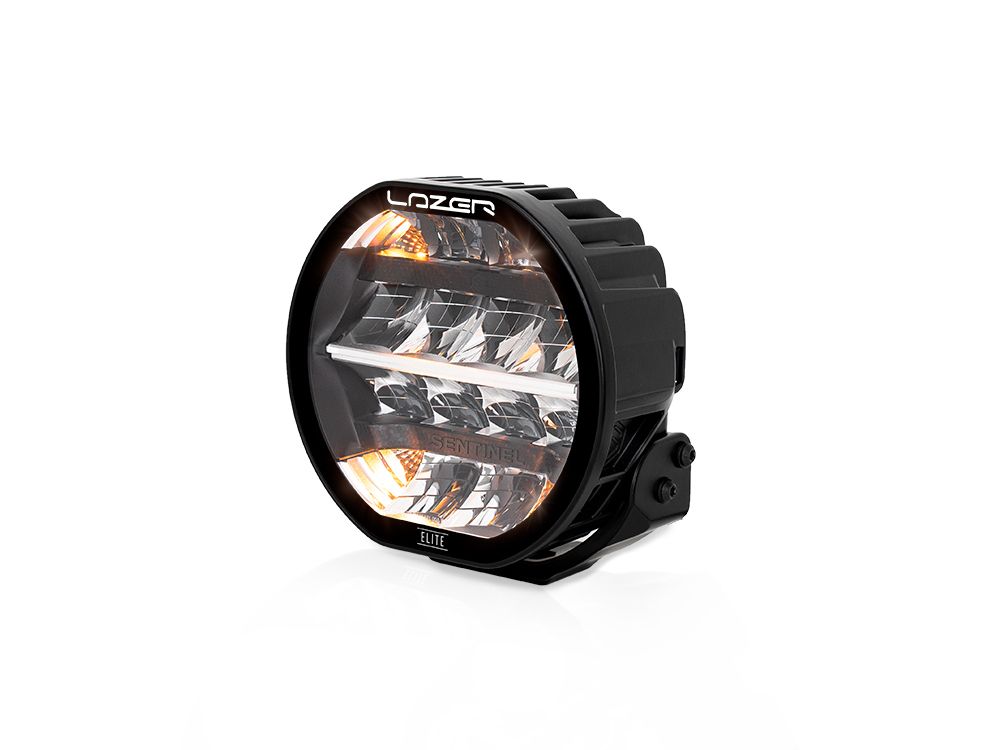

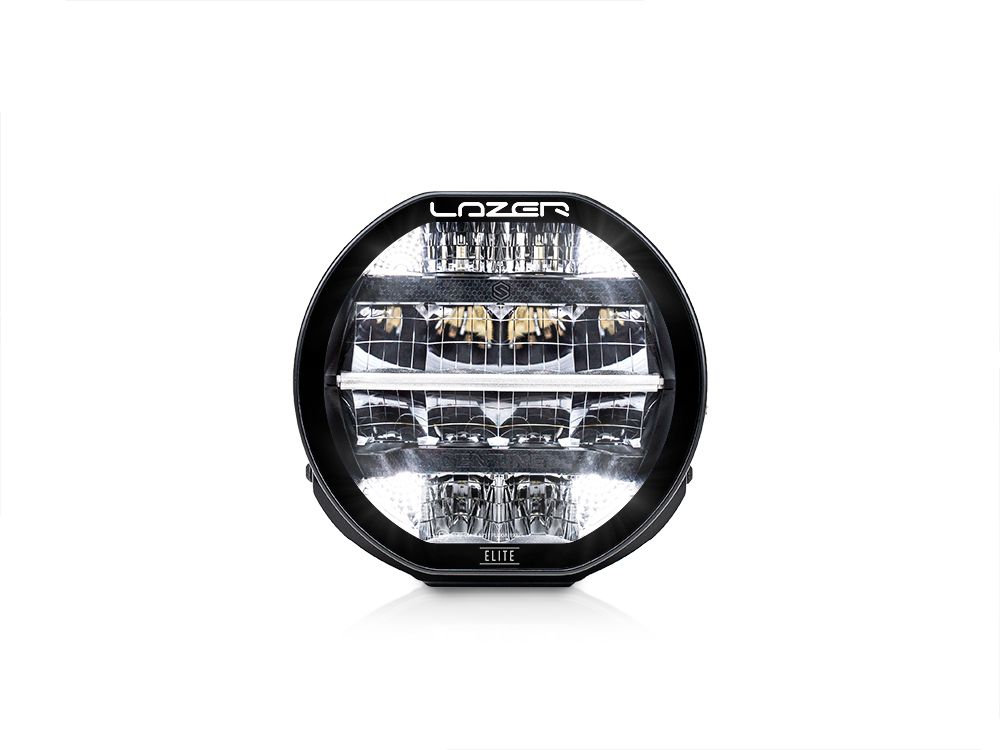

LAZER Sentinel 7" Elite with Position Light
Produktcode:
0S7-ELITE-PL-SM
Preis ohne MWSt.:
375,00 €
Preis inkl. MWSt.:
453,75 €
Beschreibung
Grundlagen
.jpg)
| Voltage Range (DC) | 10-32V | |
| LED Life | 50,000 hours | |
| Weight | 2.5 kg | |

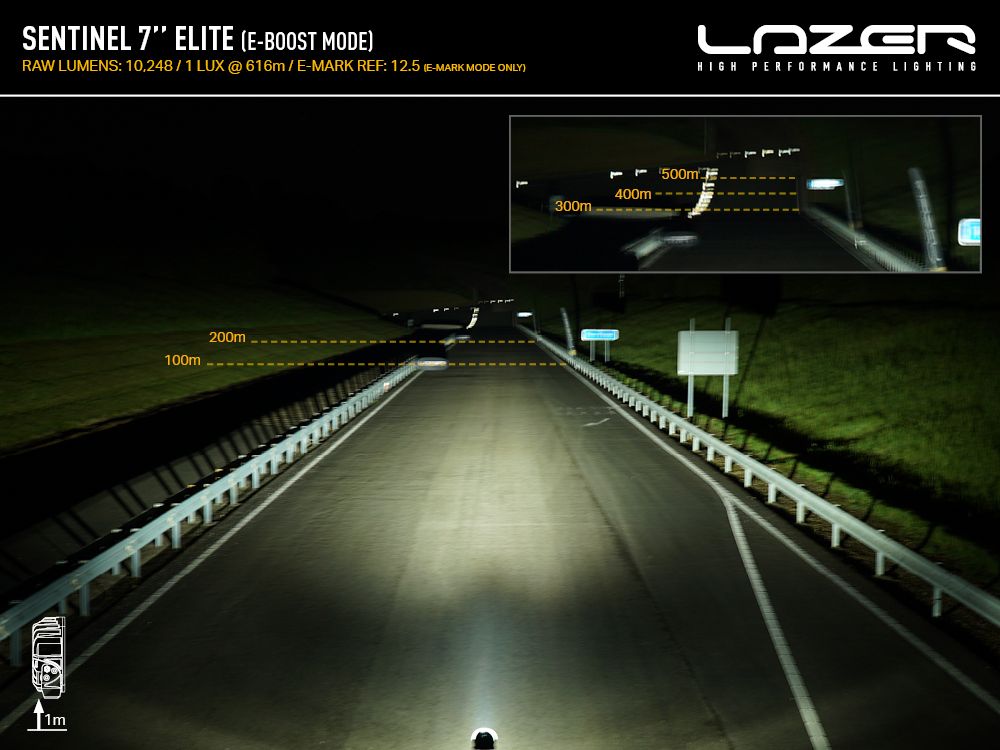

| HIGH BEAM FUNCTION | ||
| Total Luminous Flux | 10,248 Lm | 2,049 Lm |
| Total Driver 'FOV' Flux † | 6,380 Lm | 1,276 Lm |
| Colour Temperature | 5000K | |
| Power Consumption | 116 Watts | 23 Watts |
| Peak Current Draw | 8.8 Amps | 1.8 Amps |
| Current Draw (14.4V) | 7.6 Amps | 1.5 Amps |
| Connector | 3-Pin Superseal (+25cm Cable) | |
| DIMENSIONS | ||
| Width | 178mm | |
| Depth | 81mm | |
| Height | 180mm | |
| CERTIFICATION | ||
| IP Rating # | IP68 | |

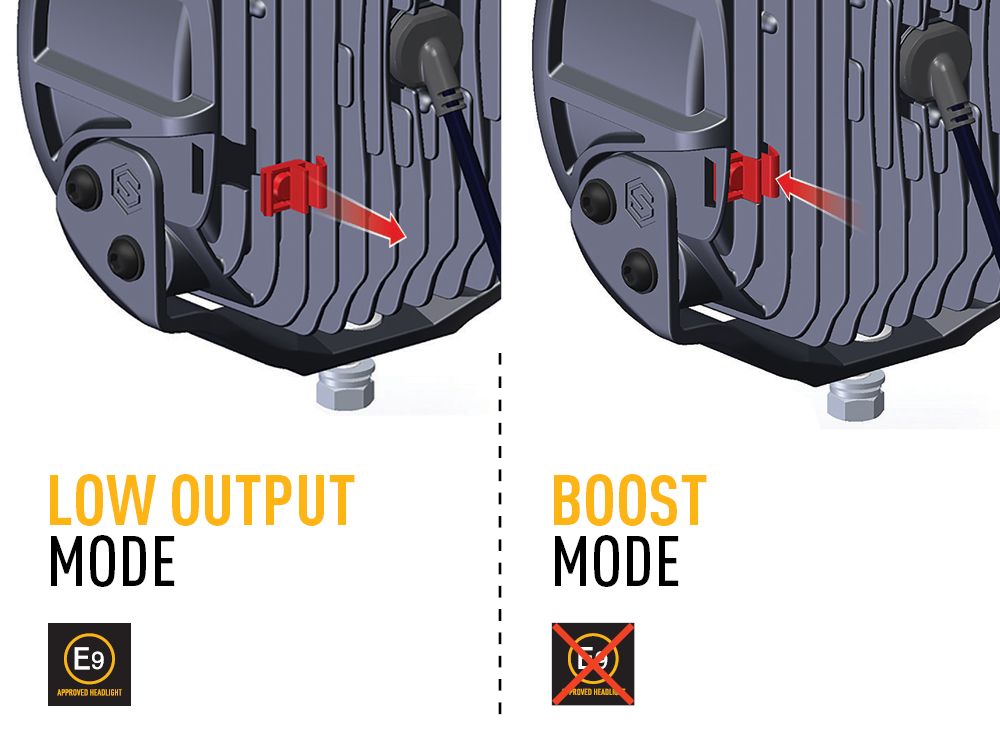

| High Beam (E9 approval) | ECE R149 - Ref: 12.5 (in Low Output Mode only) | |
| Position Light (white only) | ECE R148 | |
| EMC Certification | ECE R10 | |
| Salt Spray Test | ISO 9227 | |
| Dump Load Protection | ISO 7637-2 | |

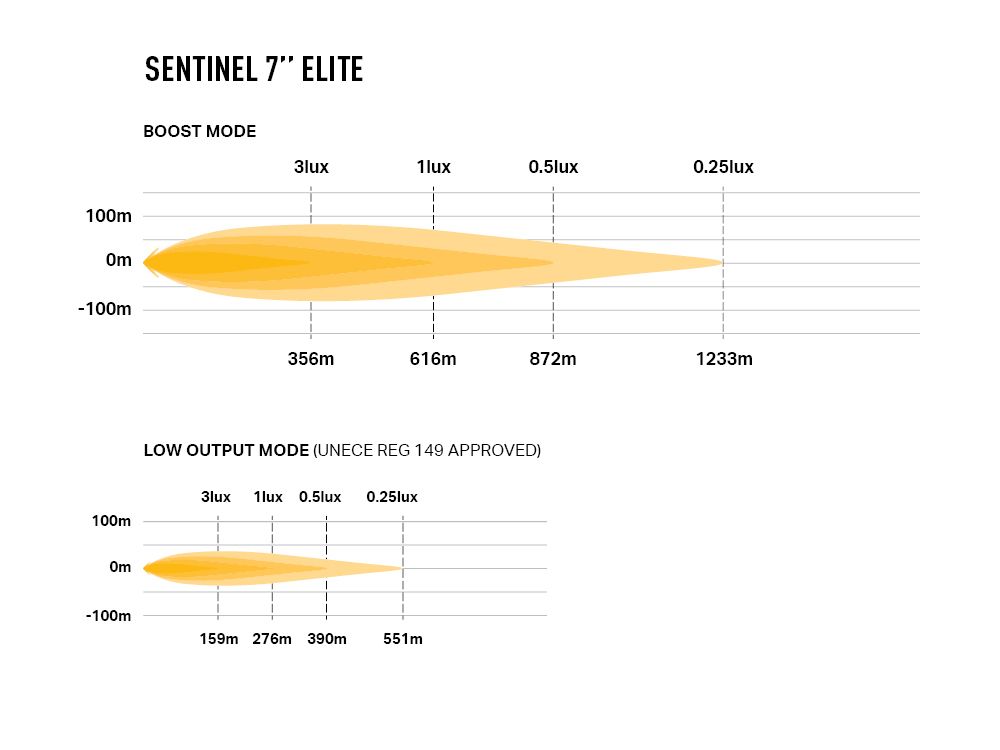

| PHOTOMETRIC DATA | ||

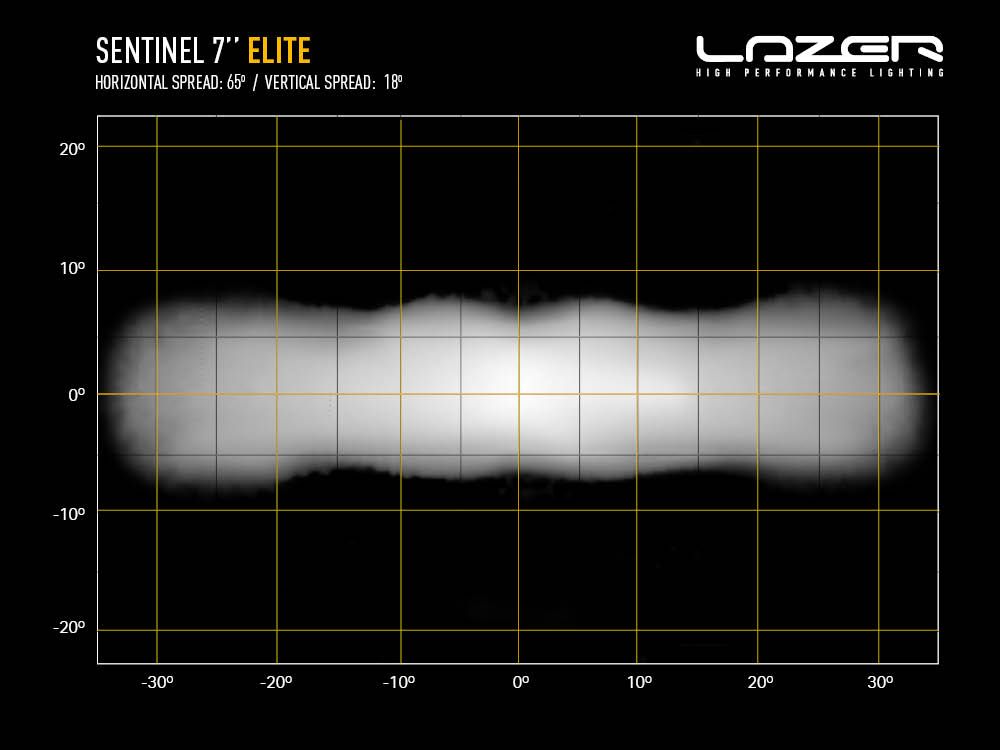

| Horizontal / Vertical Beam Angle | 65° / 18° | |
| 0.25 lx Line | 1233m | 551m |
| 0.5 lx Line | 872m | 390m |
| 1 lx Line | 616m | 276m |
| 3 lx Line | 356m | 159m |
Hersteller:
LAZER Lamps
Garantie (Monate):
60
