LAZER Linear 6 Elite+
Produktcode:
0L06-PLUS-LNR
Preis ohne MWSt.:
290,00 €
Preis inkl. MWSt.:
350,90 €
Beschreibung
Grundlagen
Based on: 1x Linear-6 Elite+ LED Lamp.
| White LED's (Boost / Low Output Mode) |
Yellow LED's (Fog / Dust / Snow Mode) |
White & Yellow LED's (Combo Mode) |
|
| Voltage Range (DC) | 10-33V | 10-33V | 10-33V |
| LED Life | 50,000 hours | 50,000 hours | 50,000 hours |
| Weight | 495 gr | 495 gr | 495 gr |
| HIGH BEAM FUNCTION | |||
| Total Luminous Flux | 5100 / 2500 Lm | 2,000 Lm | 7,100 Lm |
| Total Driver 'FOV' Flux † | 3645 / 1822 Lm | 1,200 Lm | 4,774 Lm |
| Colour Temperature | 5000K | PC Yellow | N/A |
| Number of High Output LEDs | 12 | 6 | 12 White / 6 Yellow |
| Power Consumption | 48 W / 24 W | 21 W | 69 W |
| Current Draw | 3.6 A / 1.8 A | 1.5 A | 5.1 A |
| Peak Current Draw | 4.9 A / 2.5 A | 2 A | 6.9 A |
| CERTIFICATION | |||
| High Beam | ECE R149 | N/A | N/A |
| ECE Reference | 12.5 (Low Output Mode only) | ||

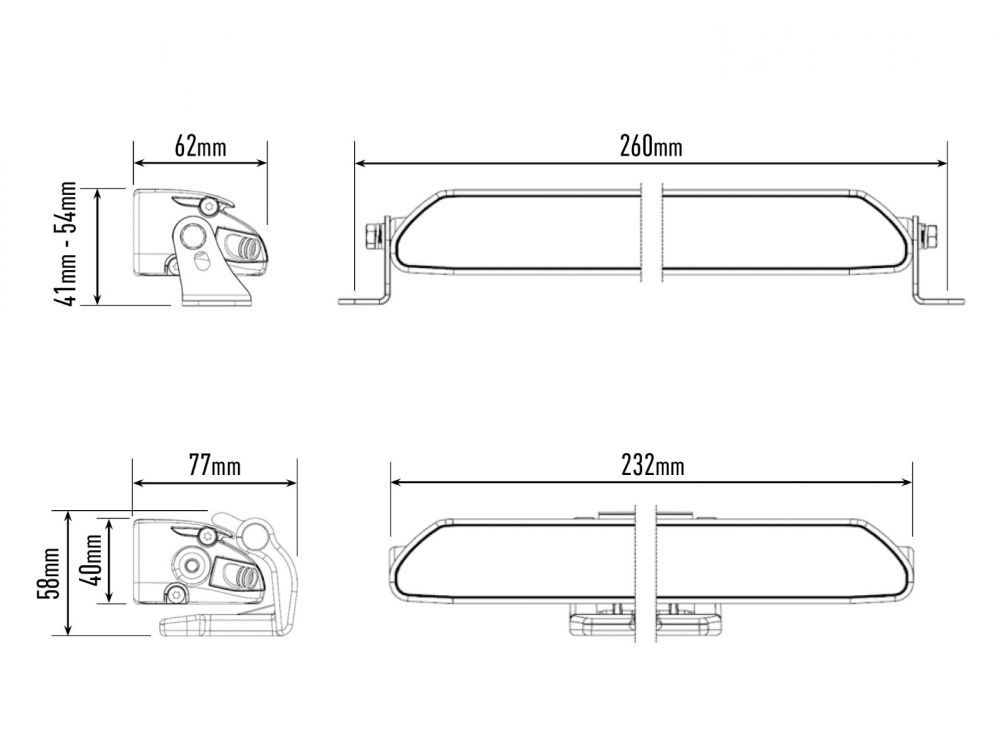

| DIMENSIONS | |||
| Width | 232 mm | 232 mm | 232 mm |
| Depth | 62 mm | 62 mm | 62 mm |
| Height | 40 mm | 40 mm | 40 mm |

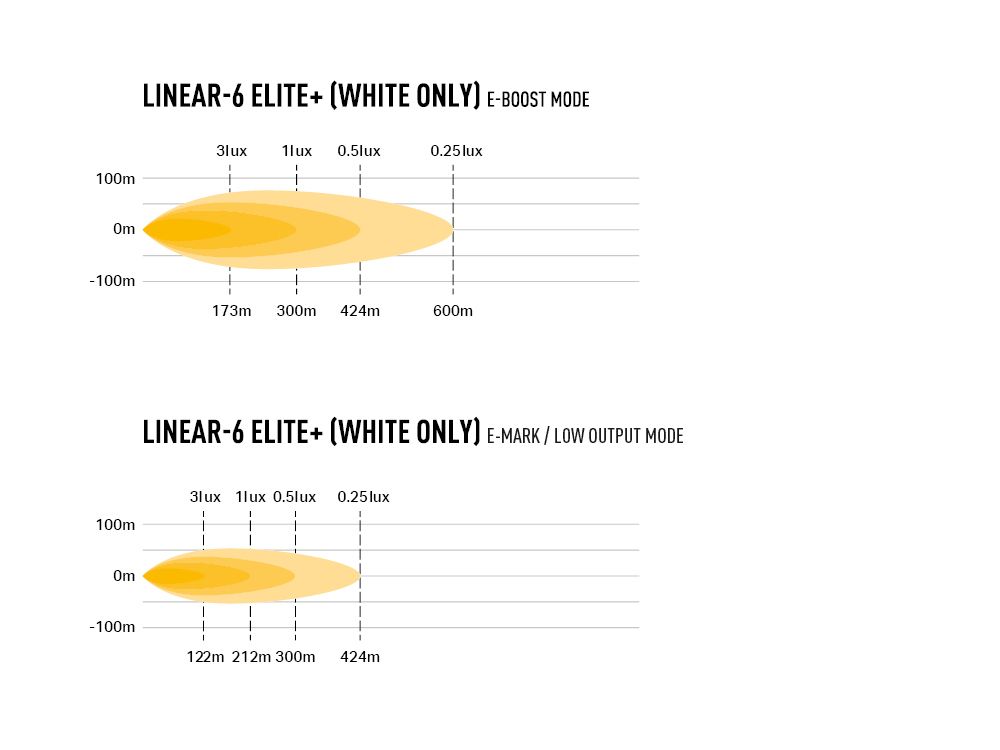

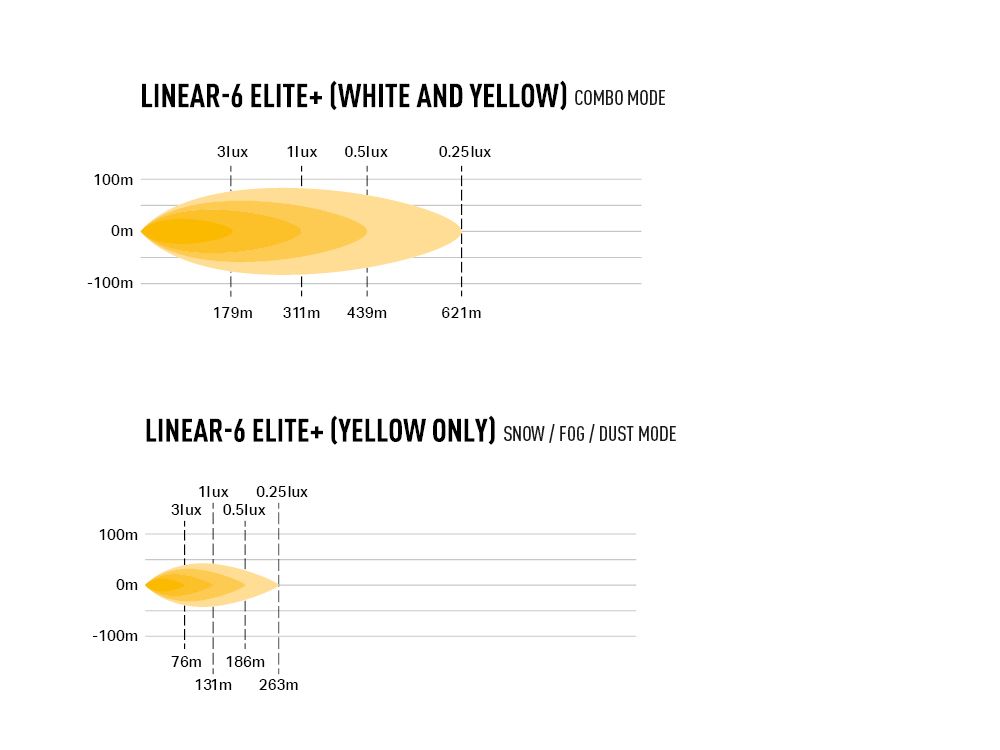

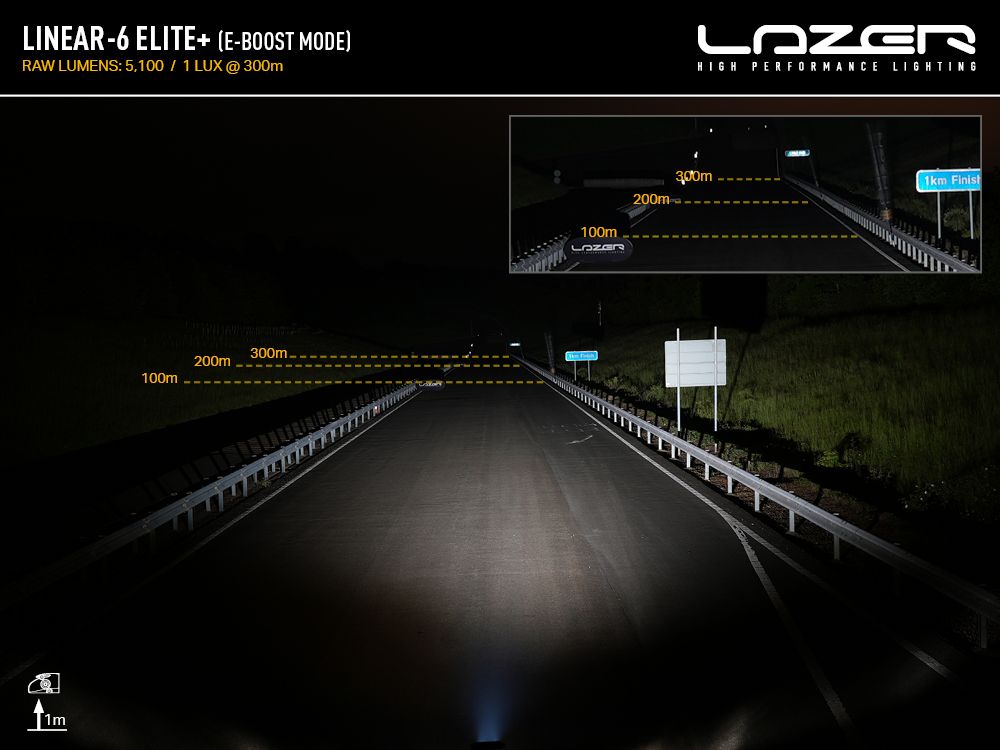

| PHOTOMETRIC DATA | |||

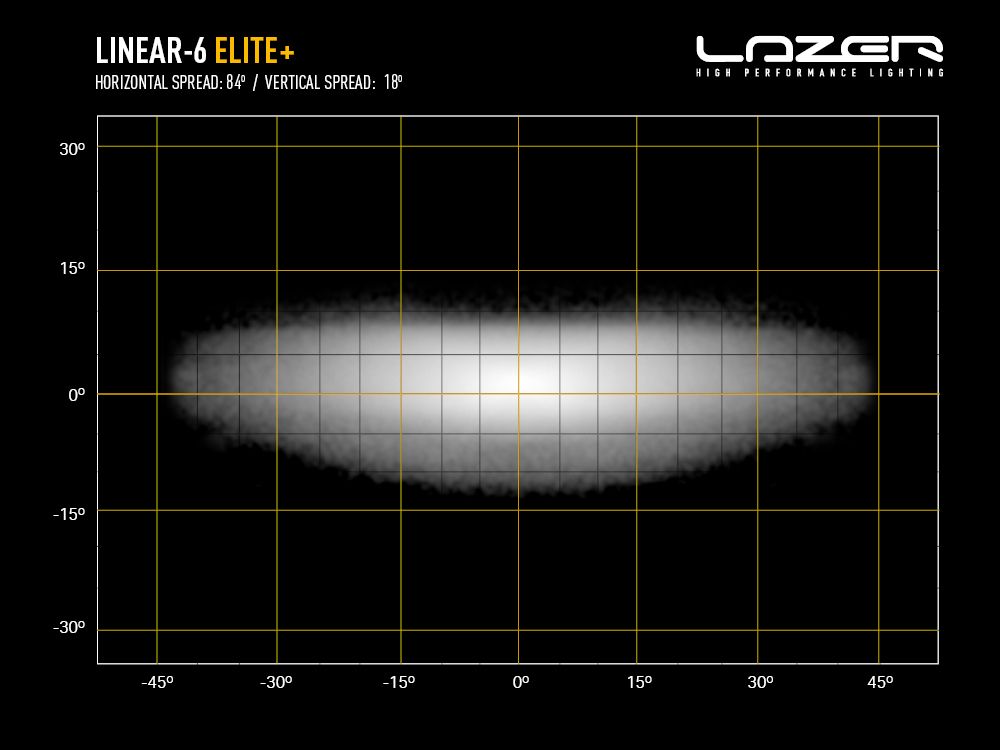

| Horizontal Beam Angle | 84o | 84o | 84o |
| 0.25 lx Line | 600m / 424m | 263m | 621m |
| 0.5 lx Line | 424m /300m | 186m | 439m |
| 1 lx Line | 300m / 212m | 131m | 311m |
| 3 lx Line | 173m / 122m | 76m | 179m |
Hersteller:
LAZER Lamps
Garantie (Monate):
60
