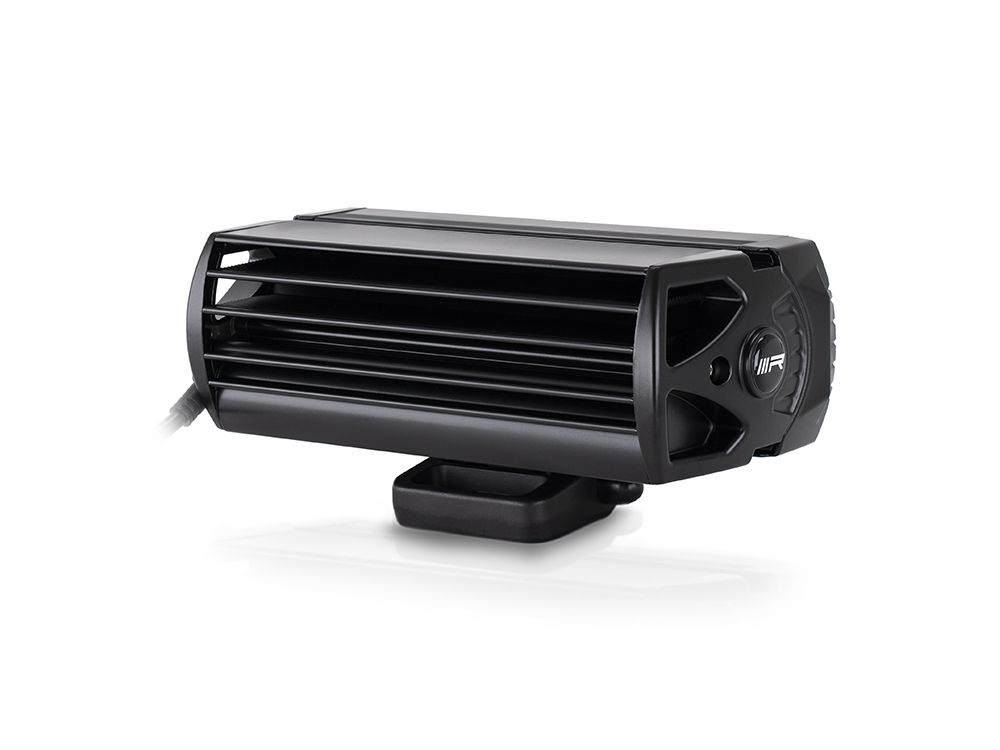

LAZER Triple-R with Beacon
Produktcode:
00R4-BCN-B
Preis ohne MWSt.:
355,00 €
Preis inkl. MWSt.:
429,55 €
Beschreibung
Grundlagen
| Voltage Range (DC) | 10-32V | |
| LED Life | 50,000 hours | |
| Weight | 1 kg | |
| HIGH BEAM FUNCTION | ||
| Total Luminous Flux | 5,400 Lm | 3,078 Lm |
| Total Driver 'FOV' Flux † | 1,242 Lm | 707 Lm |
| Colour Temperature | 5000K | |
| Power Consumption | 52 Watts | 10 Watts |
| Peak Current Draw | 5.14 Amps | 0.88 Amps |
| Current Draw (14.4V) | 3.7 Amps | 0.7 Amps |
| Connector | 6-Pin Superseal (+25cm Cable) | |

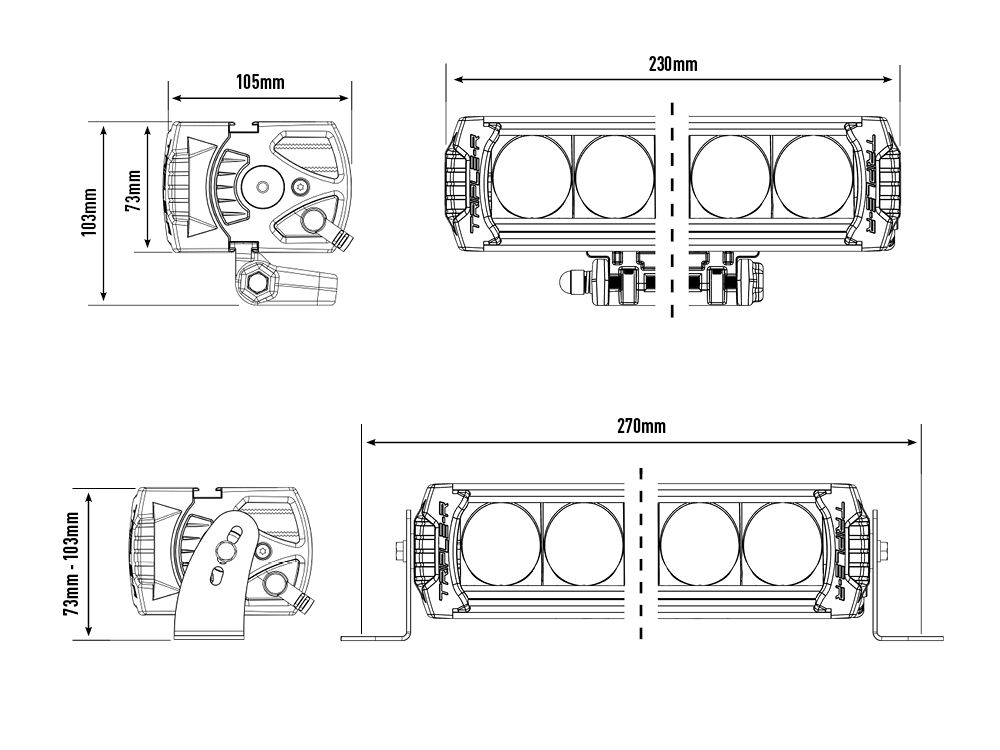

| DIMENSIONS | ||
| Width | 230mm | |
| Depth | 105mm | |
| Height | 73mm | |
| CERTIFICATION | ||
| IP Rating # | IP68 | |
| High Beam (E9 approval) | ECE R149 - Ref: 10 (in Low Output Mode only) | |

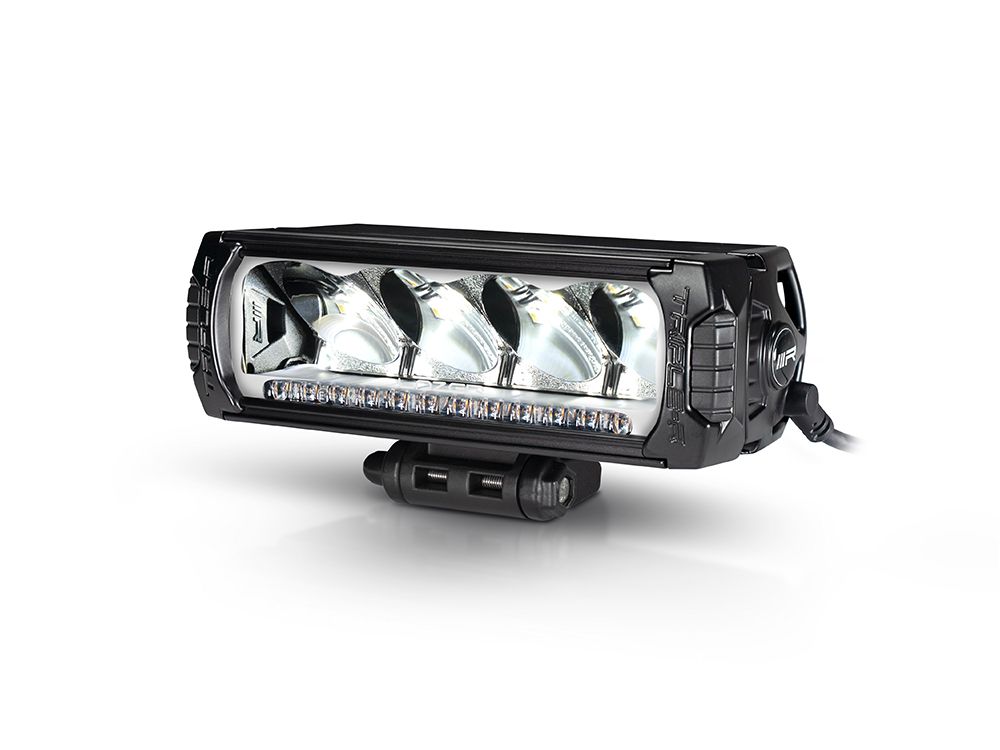

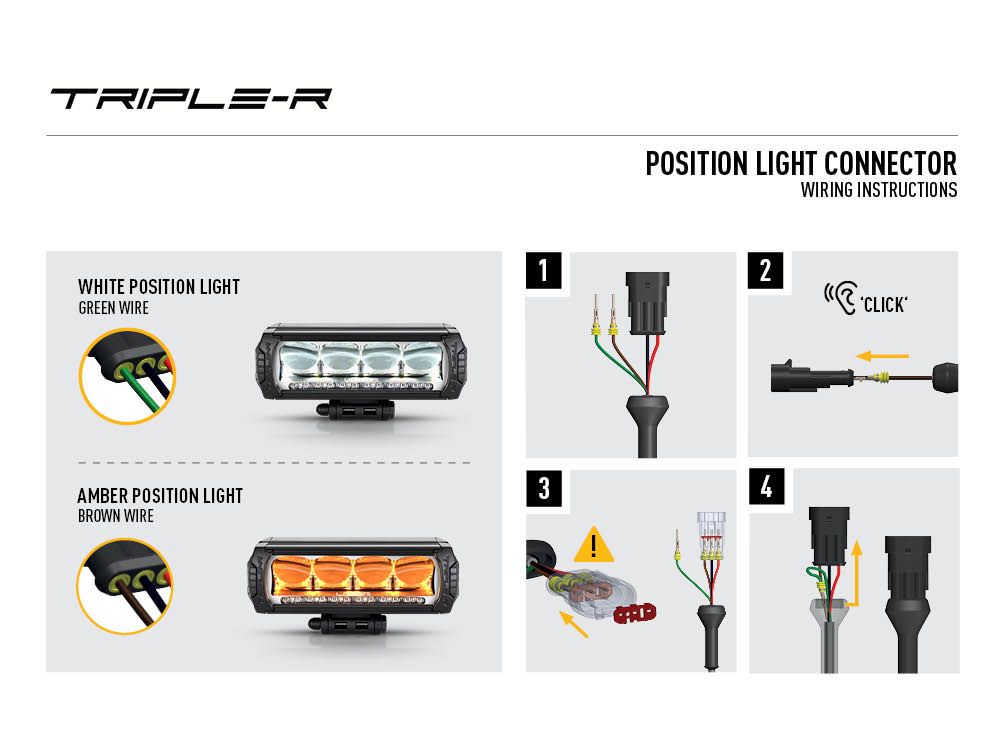

| Position Light (white only) | ECE R148 | |

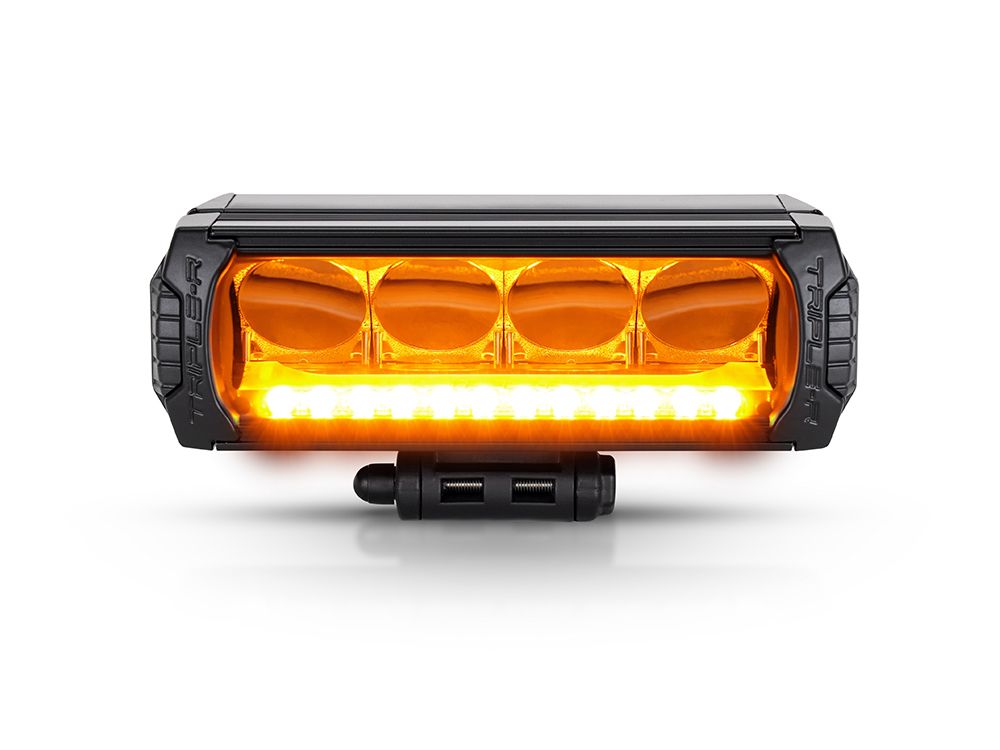

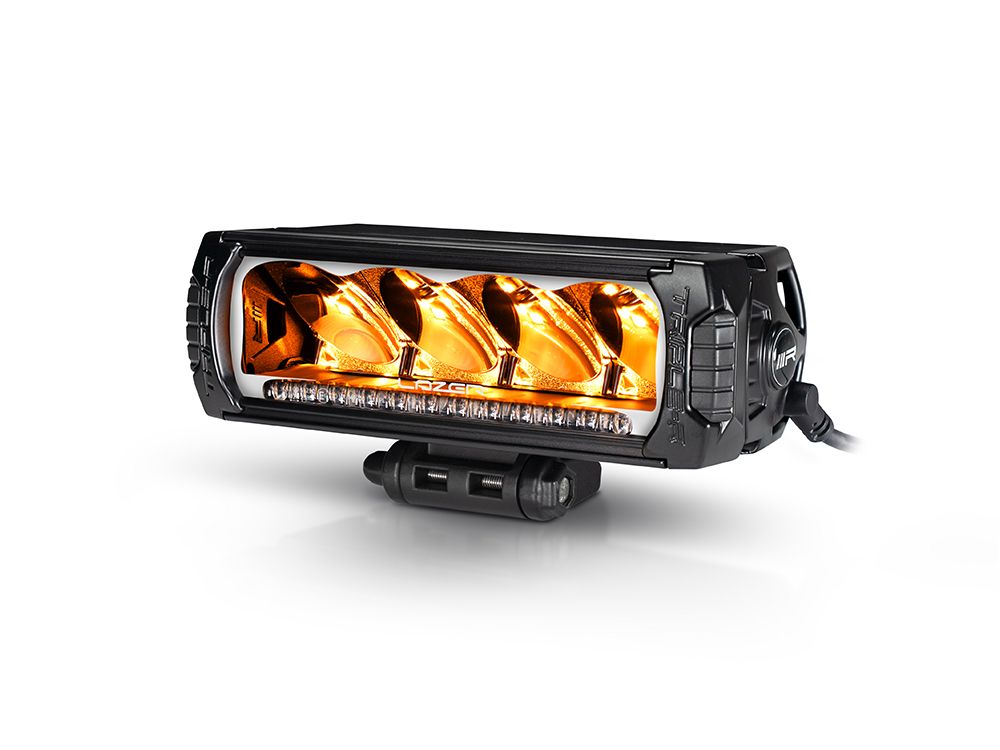

| Beacon Function | ECE R65 (XA1) | |
| EMC Certification | ECE R10 | |
| Salt Spray Test | ISO 9227 | |
| Dump Load Protection | ISO 7637-2 | |

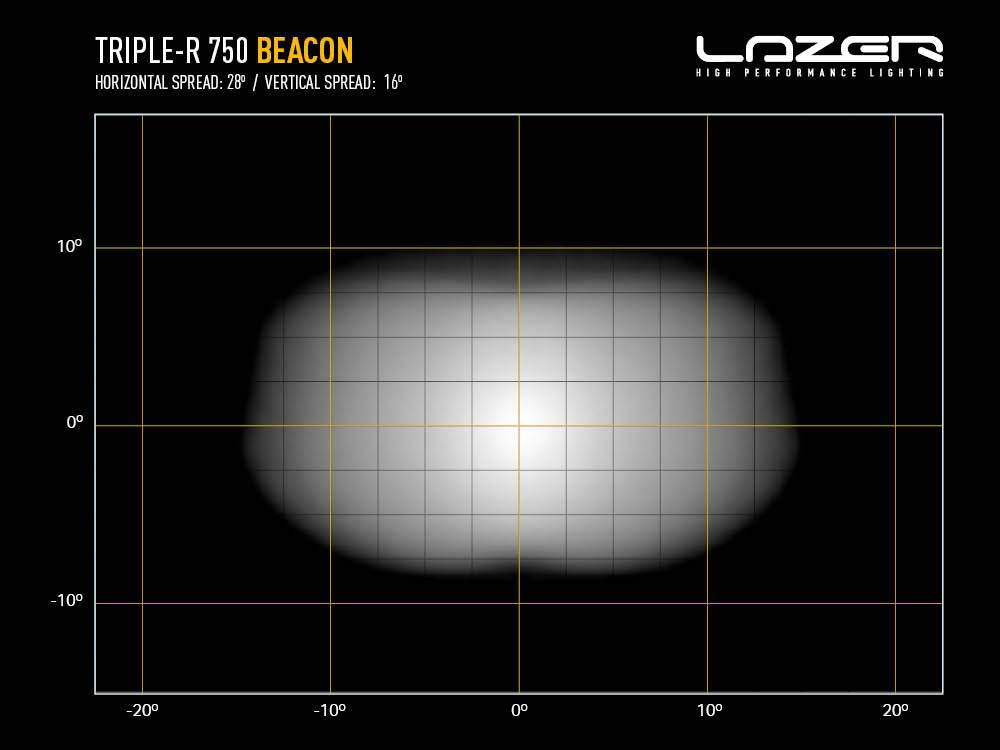

| PHOTOMETRIC DATA | ||
| Horizontal / Vertical Beam Angle | 28° / 16° | |
| 0.25 Lux | 883m | 424m |
| 0.5 Lux | 624m | 299m |
| 1 Lux | 442m | 212m |
| 3 Lux | 255m | 122m |
Hersteller:
LAZER Lamps
Garantie (Monate):
60
