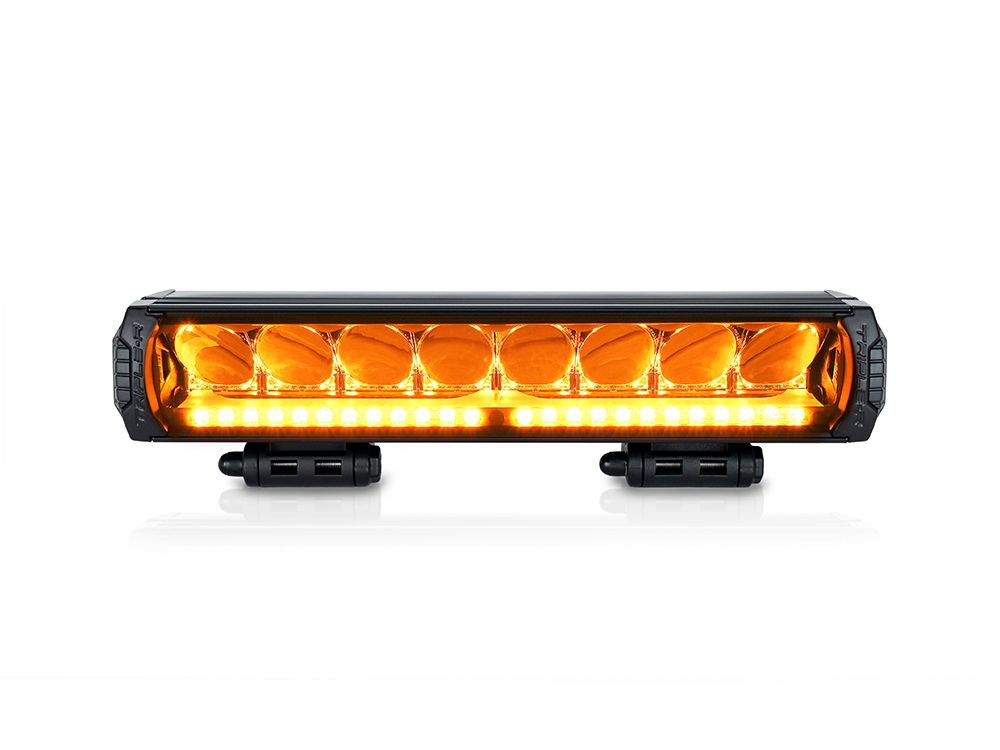

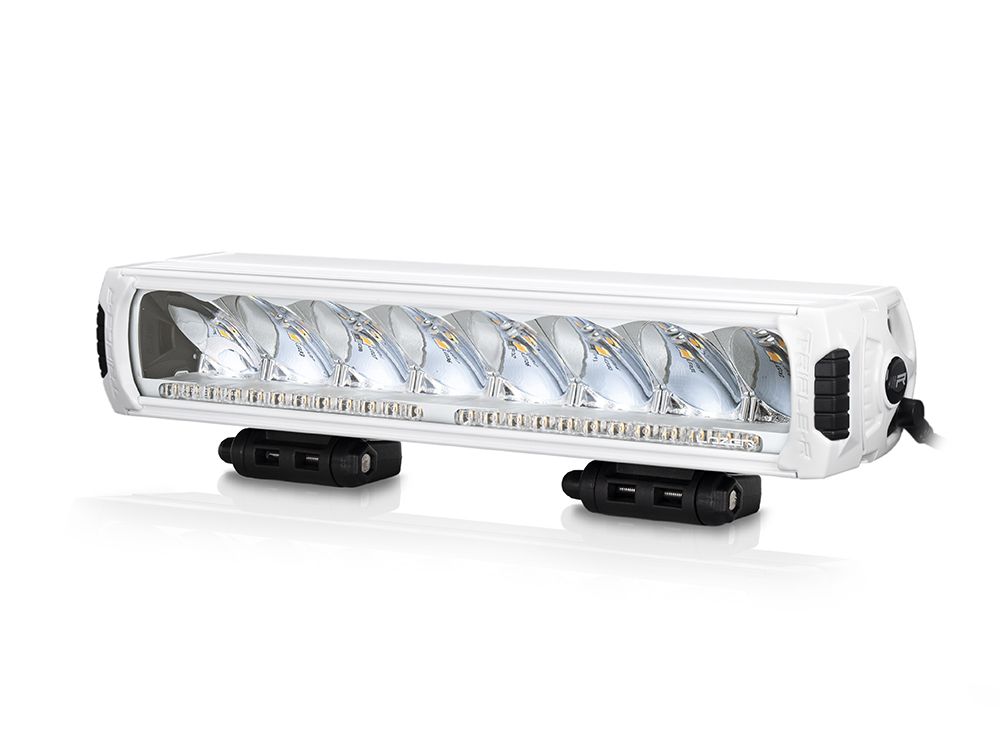

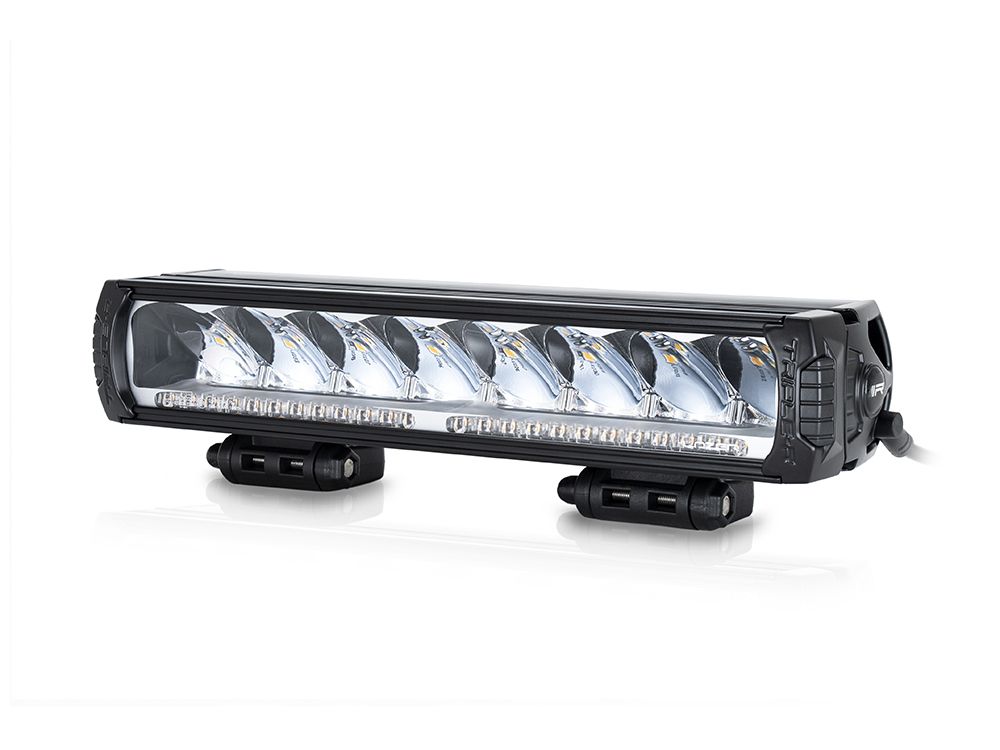

LAZER Triple-R 1000 with Beacon
Produktcode:
00R8-BCN
Preis ohne MWSt.:
510,00 €
Preis inkl. MWSt.:
617,10 €
Beschreibung
Grundlagen

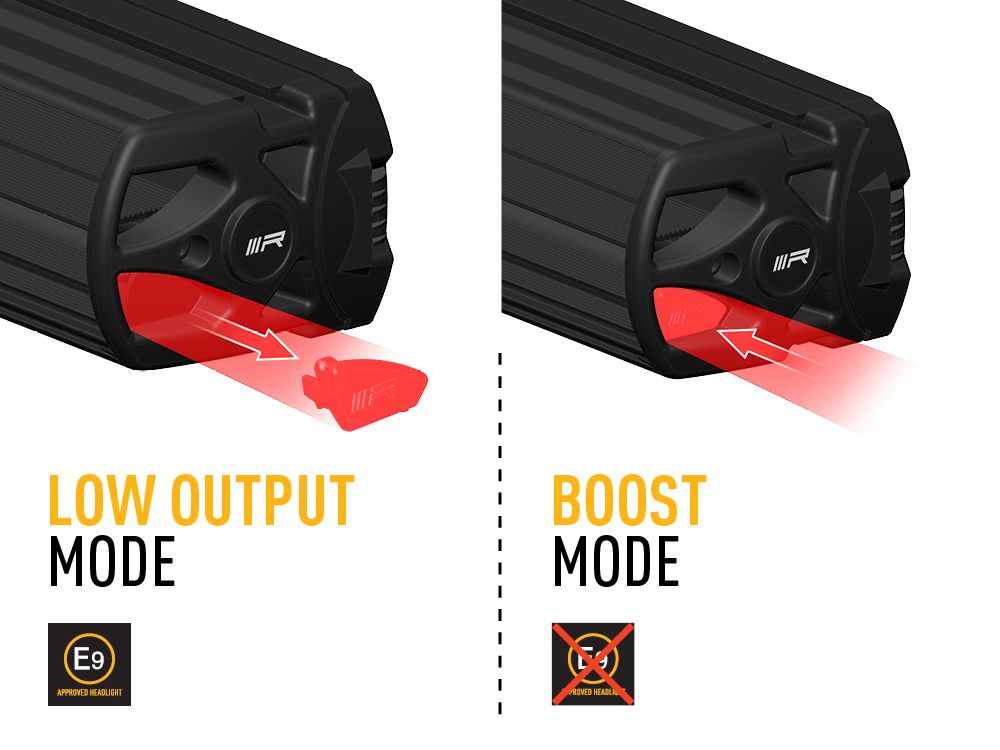

| Boost Mode |
Low Output Mode | |
| Voltage Range (DC) | 10-32V | 10-32V |
| LED Life | 50,000 hrs | 50,000 hrs |
| Weight | 1.7 kg | 1.7 kg |
| HIGH BEAM FUNCTION | ||
| Total Luminous Flux |
9240 Lm |
1848 Lm |
| Total Driver 'FOV' Flux † | 5572 Lm | 1114 Lm |
| Colour Temperature | 5000k | 5000k |
| Number of High Output LEDs | 8 | 8 |
| Power Consumption | 88 Watts | 17.6 Watts |
| Current Draw (at 14.4V) | 6.1 Amps | 1.2 Amps |
| CERTIFICATION | ||
| IP Rating | IP68 | IP68 |
| Work Lamp | ECE R10 | ECE R10 |
| High Beam | N/A | ECE R112 |
| E-Mark Ref | N/A | 12.5 |
| Position Light (White) | ECE R7 | ECE R7 |
| Beacon (Amber) | ECE R65 (XA1) | ECE R65 (XA1) |
| OPERATING CONDITIONS | ||
| Salt Spray Test | ISO 9227 (2000H) | ISO 9227 (2000H) |
| Vibration (BS EN 60068) | 10Hz > 1000Hz, 0.14>20 (m/s²)²/Hz | 10Hz > 1000Hz, 0.14>20 (m/s²)²/Hz |
| Operating Temperature | -40oC … +90oC | -40oC … +90oC |

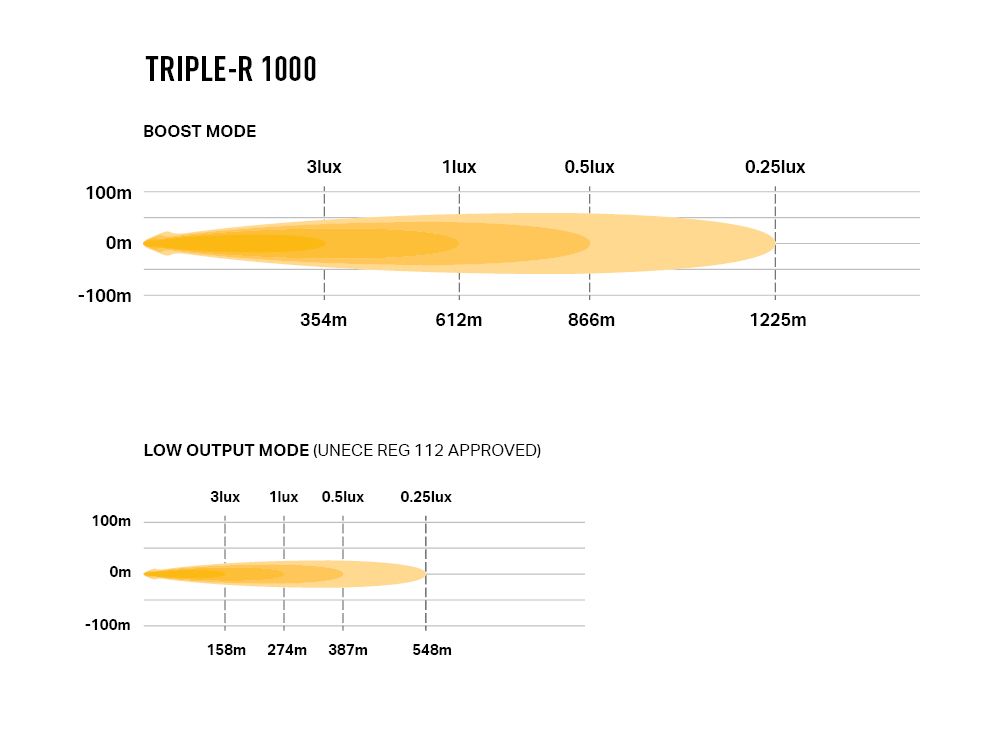

| PHOTOMETRIC DATA | ||

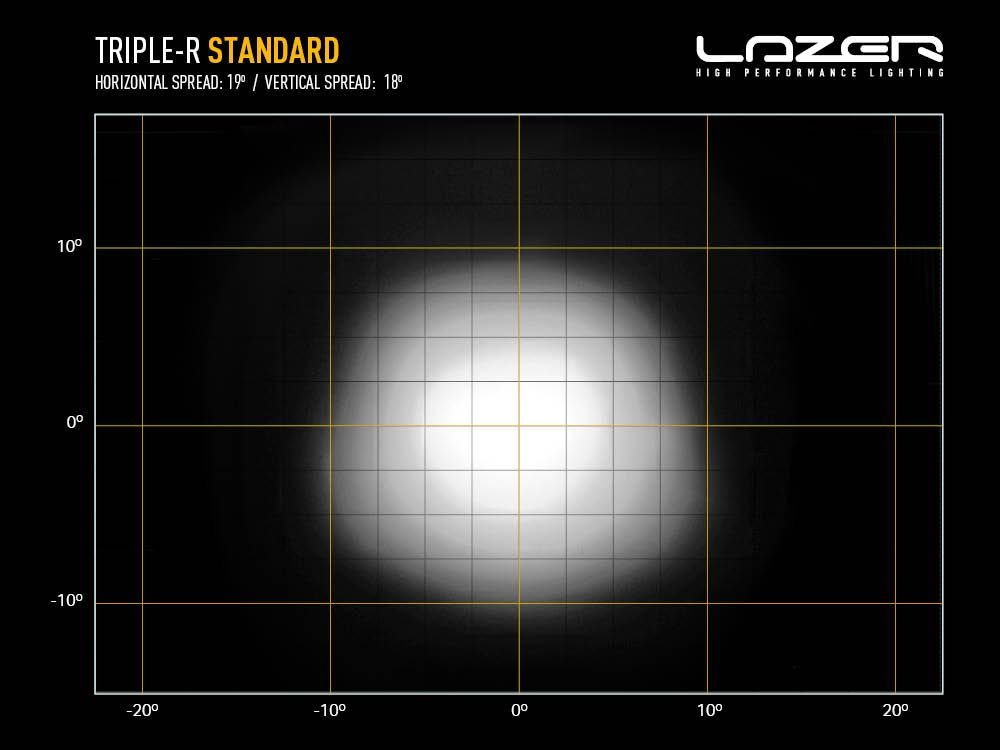

| Horiz Beam Angle | 19 Deg | 19 Deg |
| 0.25 lx Line | 1225 metres | 548 metres |
| 0.5 lx Line | 866 metres | 387 metres |
| 1 lx Line | 612 metres | 274 metres |
| 3 lx Line | 354 metres | 158 metres |
Hersteller:
LAZER Lamps
Garantie (Monate):
60
