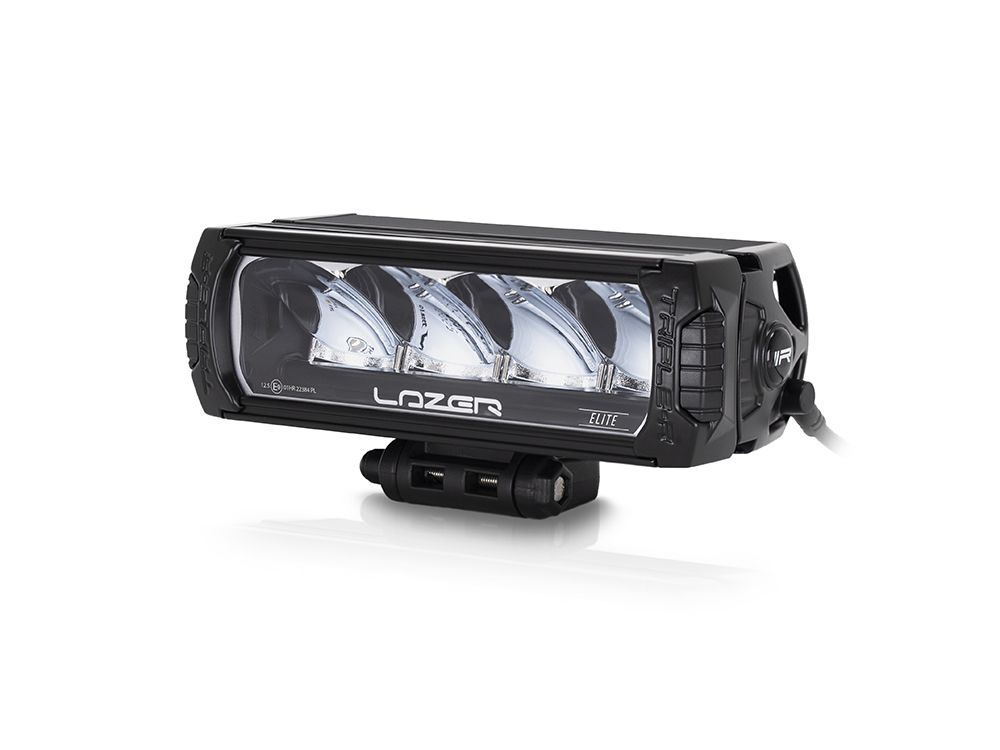

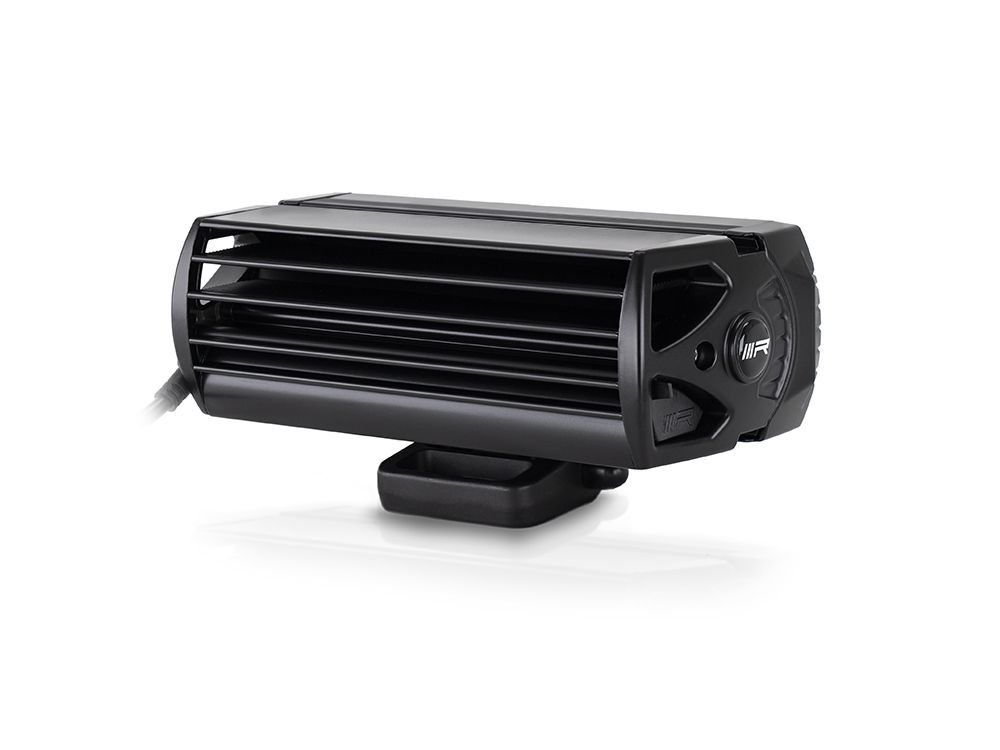

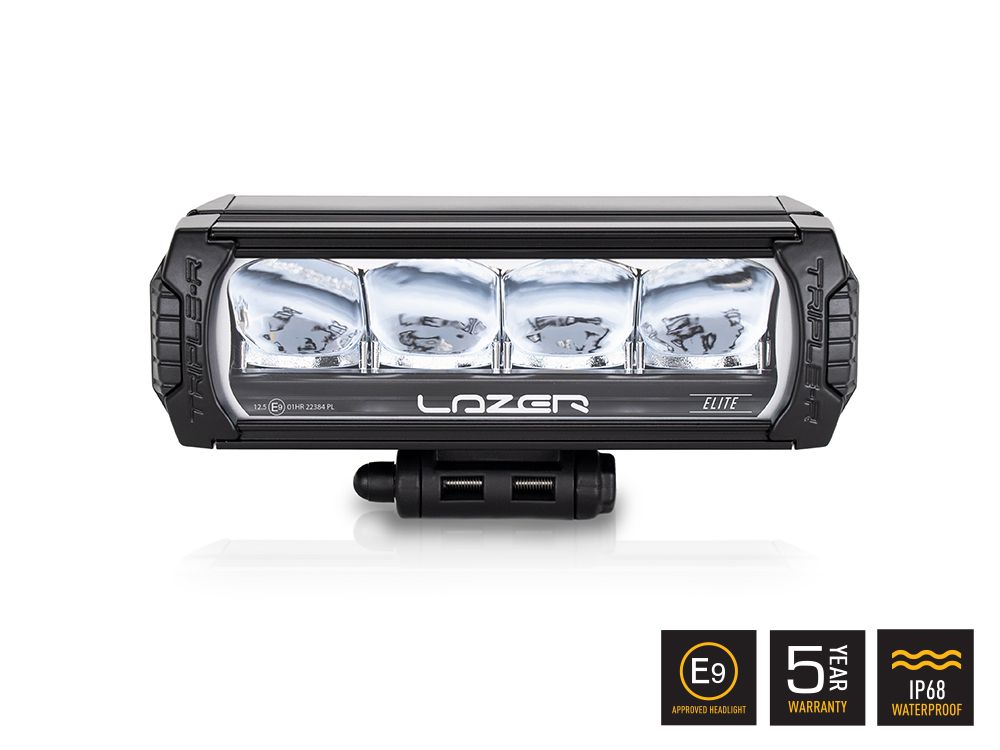

LAZER Triple-R 750 Elite
Produktcode:
00R4-G2-EL-B
Preis ohne MWSt.:
325,00 €
Preis inkl. MWSt.:
393,25 €
Beschreibung
Grundlagen
| Voltage Range (DC) | 10-32V | |
| LED Life | 50,000 hours | |
| Weight | 1 kg | |
| HIGH BEAM FUNCTION | ||
| Total Luminous Flux | 5,068 Lm | 1,267 Lm |
| Total Driver 'FOV' Flux † | 3,340 Lm | 835 Lm |
| Colour Temperature | 5000K | |
| Power Consumption | 56 Watts | 8.88 Watts |
| Peak Current Draw | 5.2 Amps | 0.8 Amps |
| Current Draw (14.4V) | 3.8 Amps | 0.6 Amps |
| Connector | 2-Pin Superseal (+25cm Cable) | |

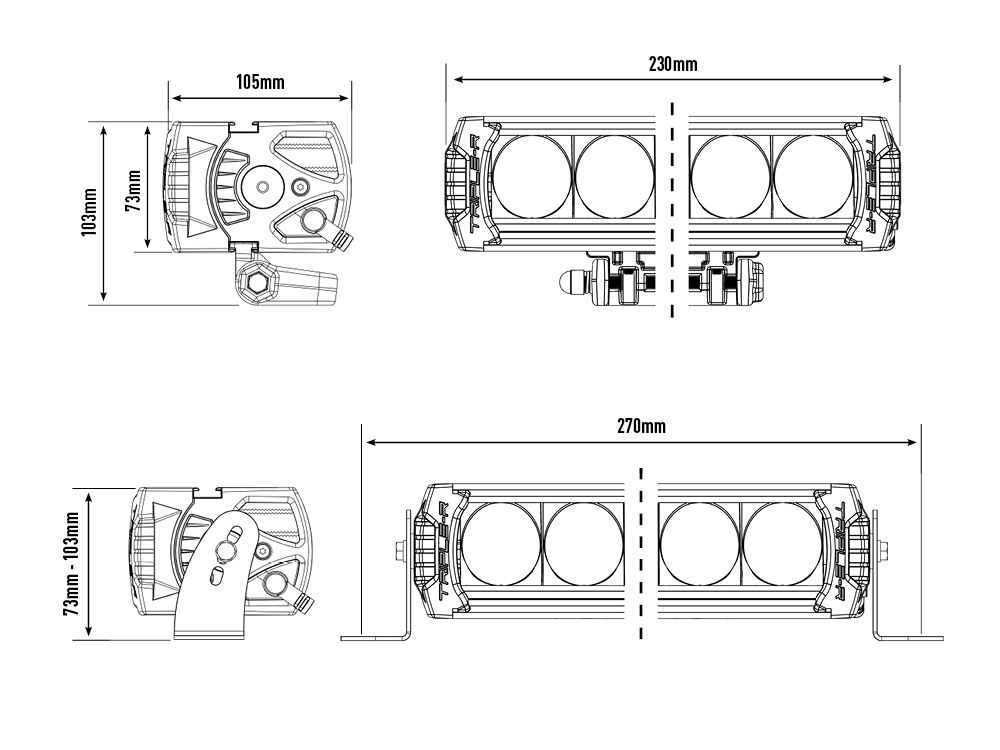

| DIMENSIONS | ||
| Width | 230mm | |
| Depth | 105mm | |
| Height | 73mm | |
| CERTIFICATION | ||
| IP Rating # | IP68 | |
| High Beam (E9 approval) | ECE R112 - Ref: 12.5 (in Low Output Mode only) | |
| EMC Certification | ECE R10 | |
| Salt Spray Test | ISO 9227 | |
| Dump Load Protection | ISO 7637-2 | |

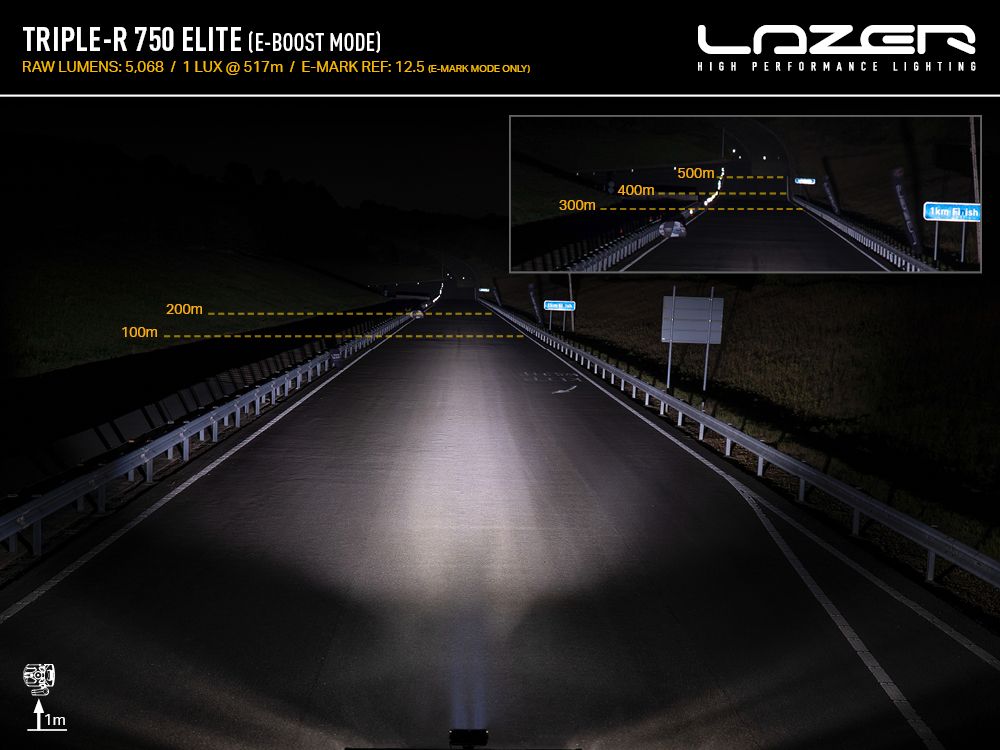

| PHOTOMETRIC DATA | ||

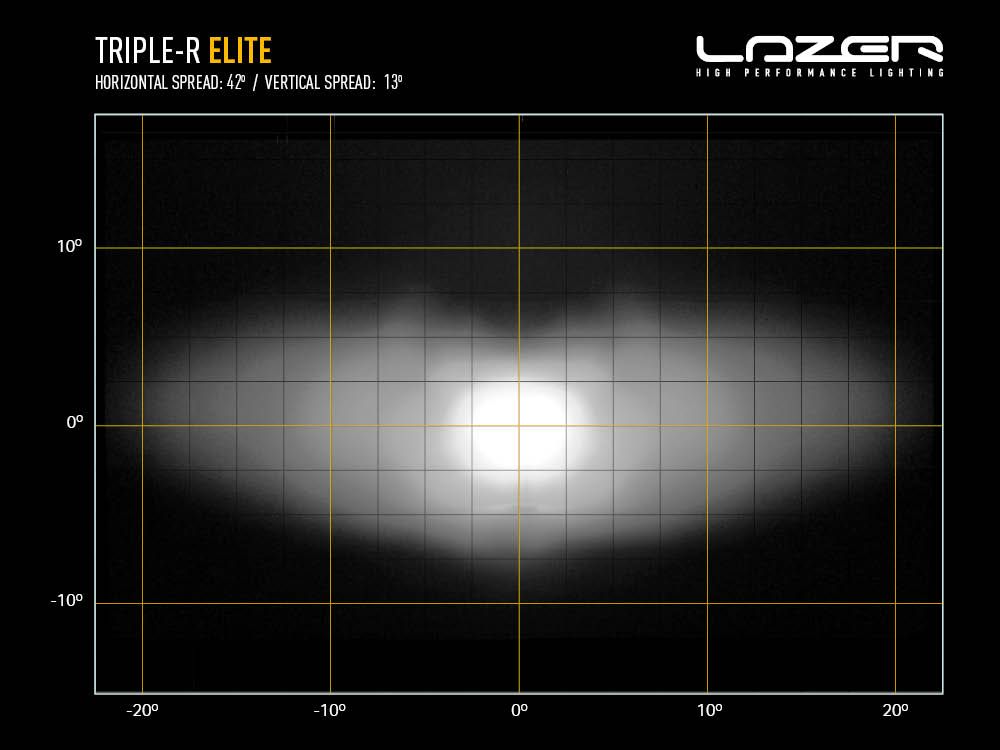

| Horizontal / Vertical Beam Angle | 42° / 13° | |
| 0.25 Lux | 1033m | 462m |
| 0.5 Lux | 731m | 327m |
| 1 Lux | 517m | 231m |
| 3 Lux | 298m | 133m |
Hersteller:
LAZER Lamps
Garantie (Monate):
60
