LAZER TRIPLE-R 1000 Elite with LBA

LAZER TRIPLE-R 1000 Elite with LBA
Auf Anfrage
Produktcode:
00R8-LBA-B
Preis ohne MWSt.:
430,00 €
Preis inkl. MWSt.:
520,30 €
Beschreibung



Technical Specifications

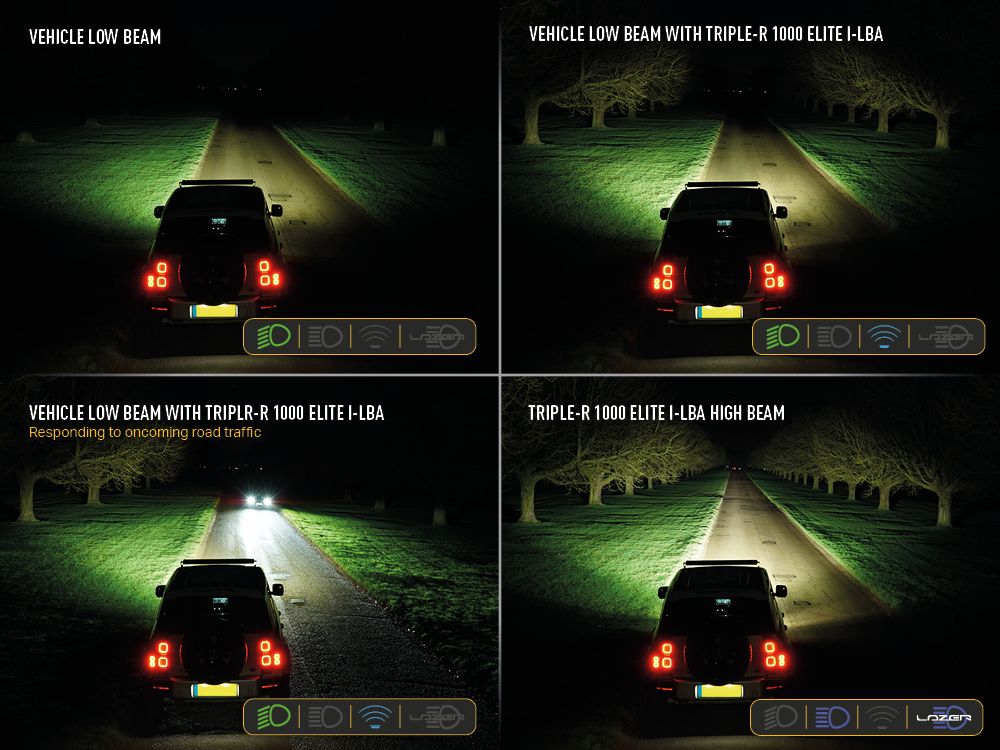

Based on: 1x Triple-R 1000 Elite with i-LBA.

  Boost
Mode		 Low Output Mode
Voltage Range (DC) 10-32V 10-32V
LED Life 50,000 hrs 50,000 hrs
Weight 1.7 kg 1.7 kg
HIGH BEAM FUNCTION
Total Luminous Flux

11068 Lm

3423 Lm
Total Driver 'FOV' Flux † 7294 Lm 2256 Lm
Colour Temperature 5000k 5000k
Number of High Output LEDs 26 26
Power Consumption 111 Watts 32 Watts
Peak Current Draw (@10V) 9.5 Amps N/A
Current Draw (@14.4V) 6.6 Amps 2.3 Amps
CERTIFICATION
High Beam N/A ECE R112
E-Mark Ref N/A 30

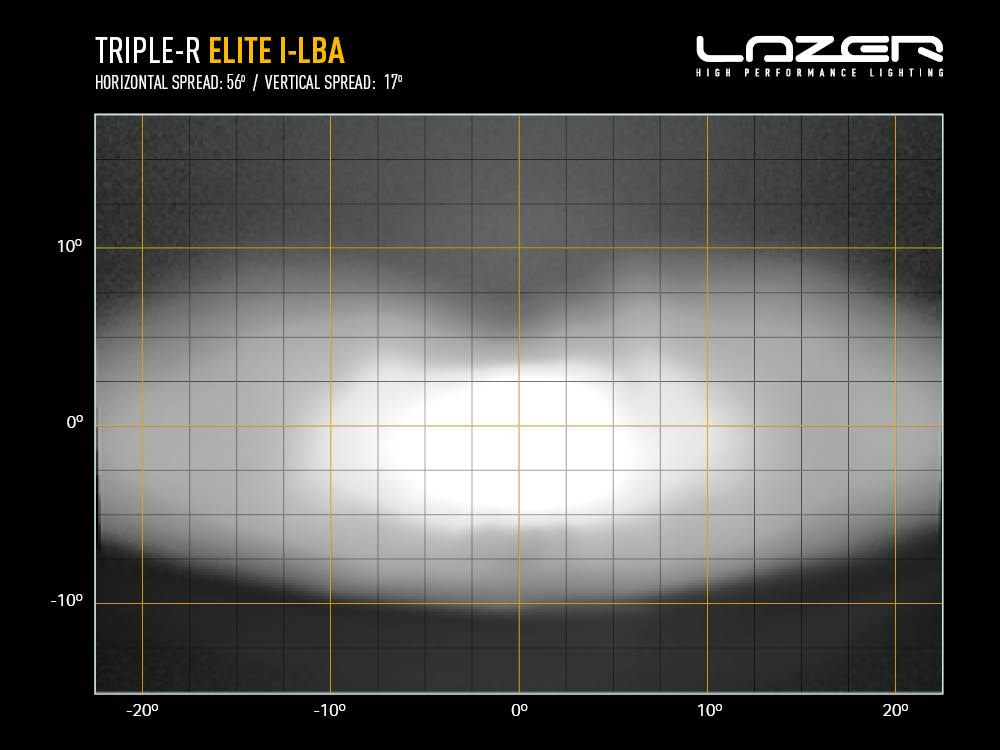

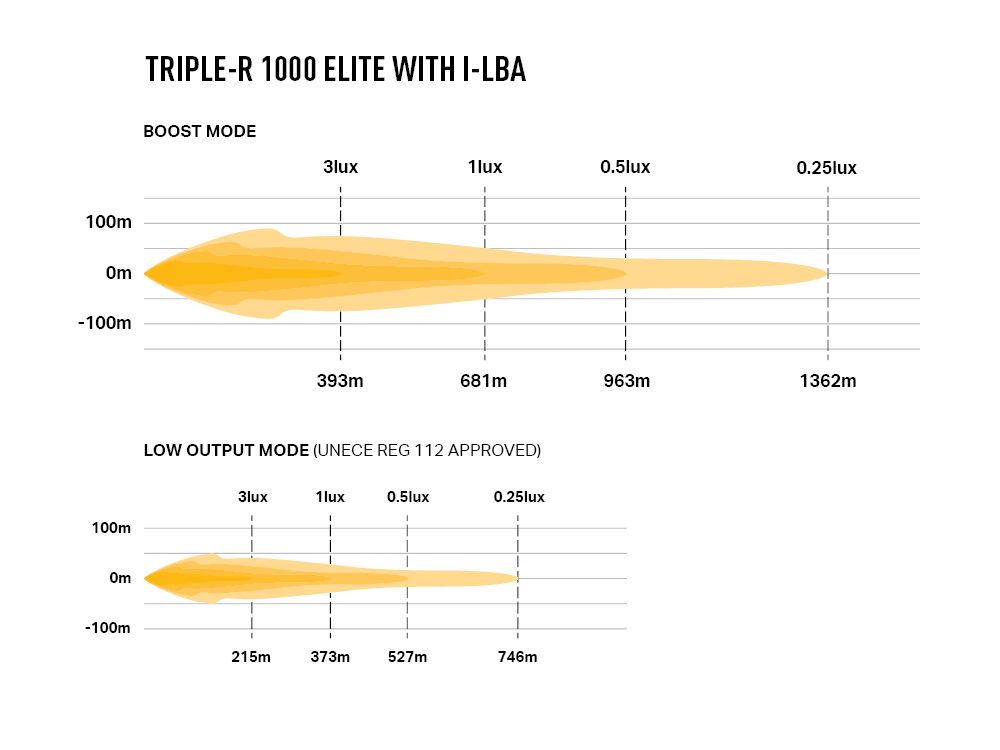

PHOTOMETRIC DATA
Horiz Beam Angle 56 Deg 56 Deg
0.25 lx Line 1362m 746m
0.5 lx Line 963m 527m
1 lx Line 681m 373m
3 lx Line 393m 215m

Grundlagen
Hersteller:
LAZER Lamps
Garantie (Monate):
60
