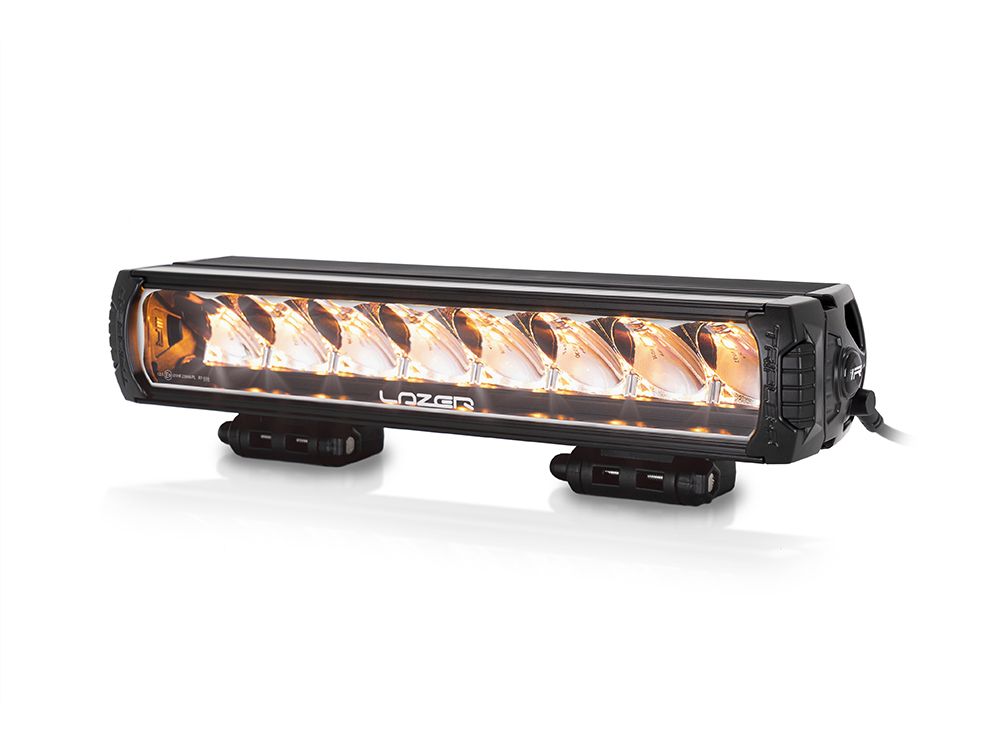

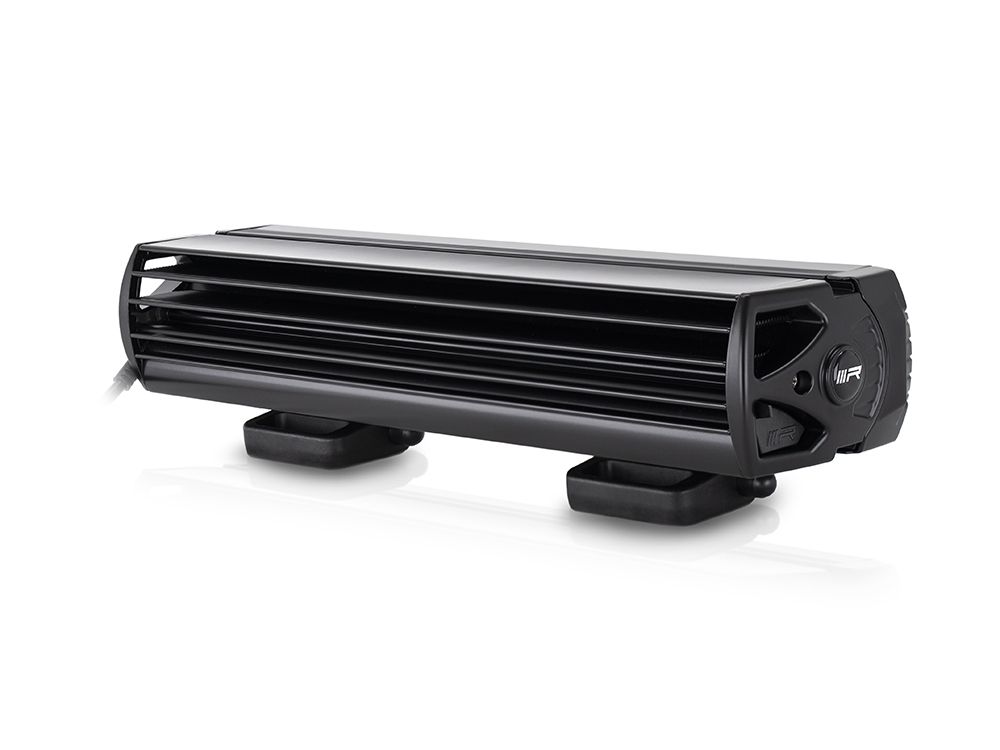

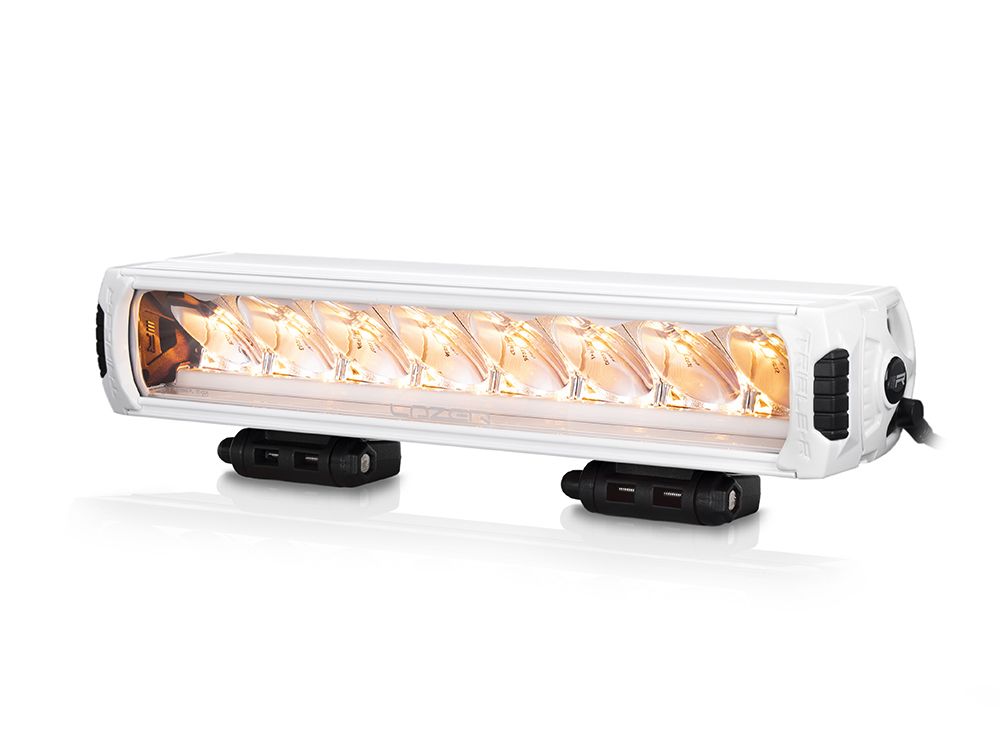

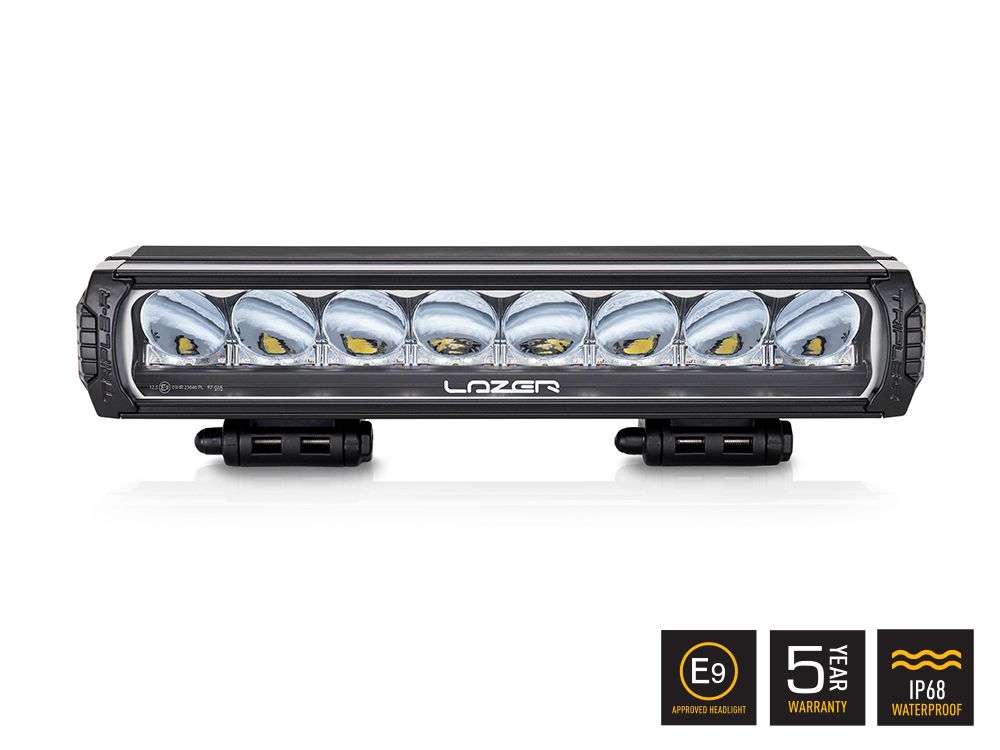

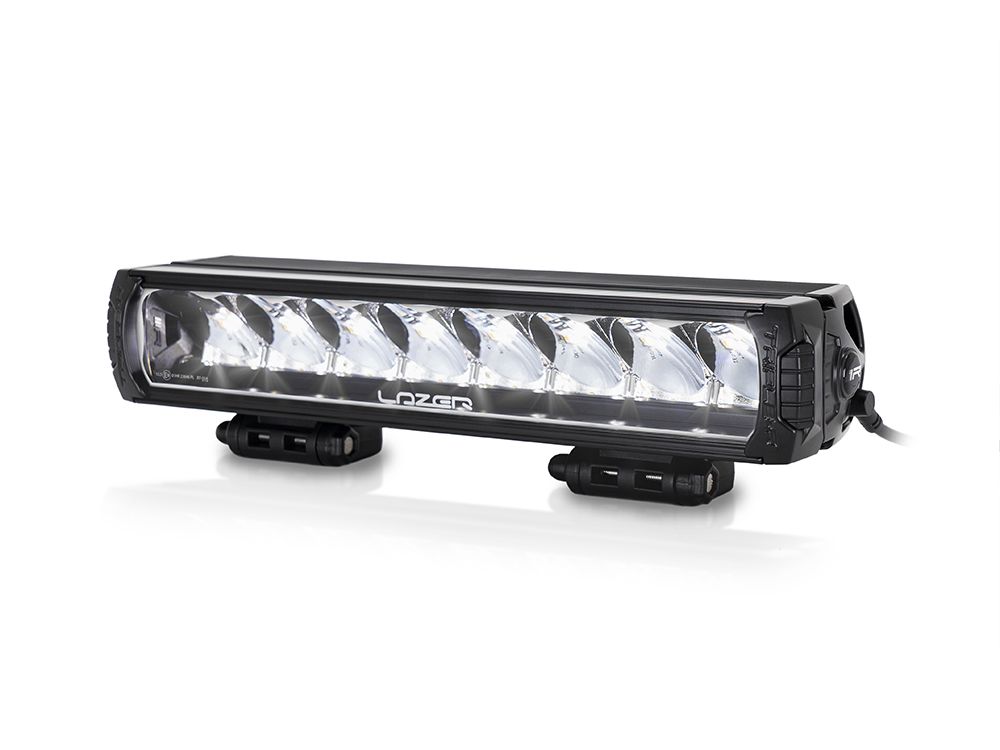

LAZER Triple-R 1000 Standart
Produktcode:
00R8-G2-B
Preis ohne MWSt.:
395,00 €
Preis inkl. MWSt.:
477,95 €
Beschreibung
Grundlagen

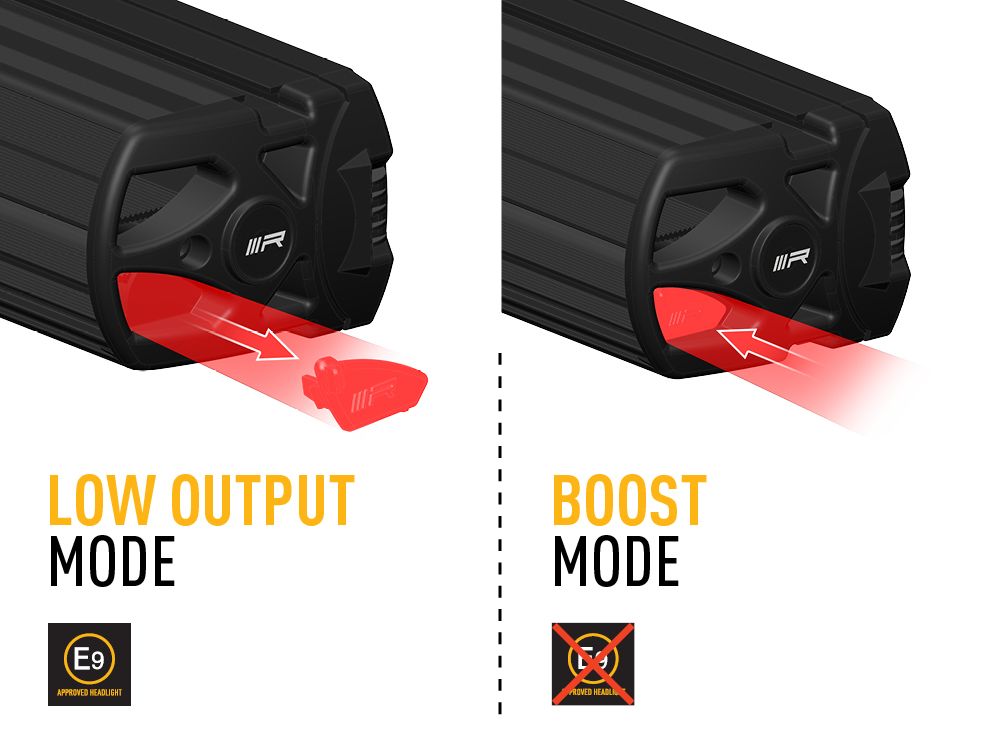

| Boost Mode |
Low Output Mode | |
| Voltage Range (DC) | 10-32V | 9-32V |
| LED Life | 50,000 hrs | 50,000 hrs |
| Weight | 1.7 kg | 1.7 kg |
| HIGH BEAM FUNCTION | ||

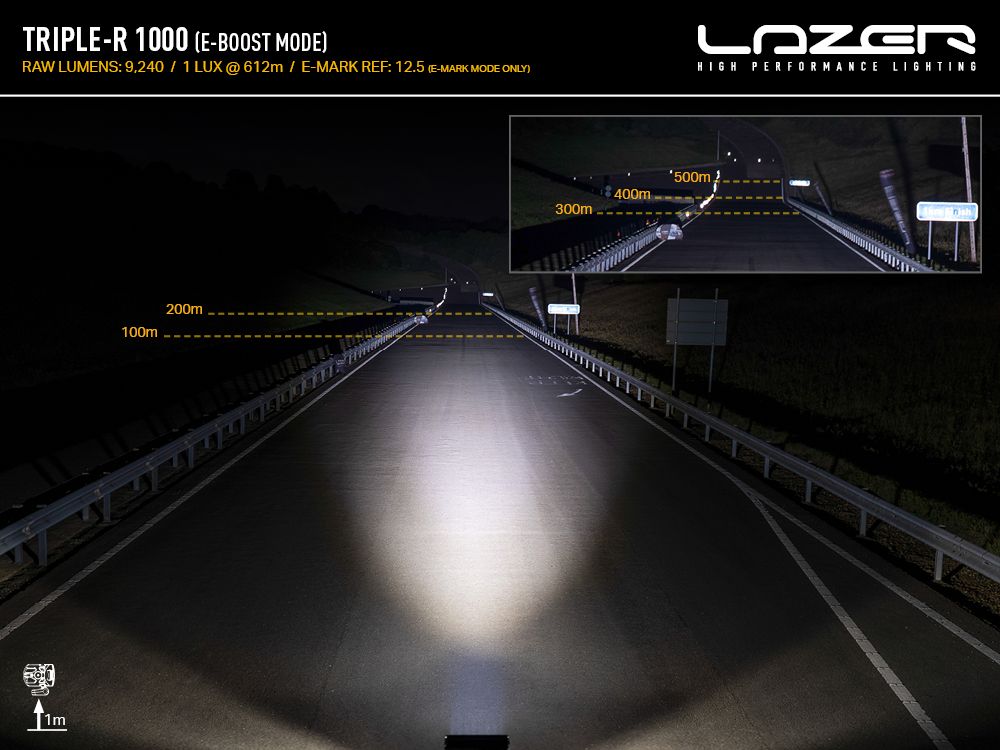

| Total Luminous Flux |
9240 Lm |
1848 Lm |
| Total Driver 'FOV' Flux † | 5572 Lm | 1114 Lm |
| Colour Temperature | 5000k | 5000k |
| Number of High Output LEDs | 8 | 8 |
| Power Consumption | 88 Watts | 17.6 Watts |
| Current Draw (at 14.4V) | 6.1 Amps | 1.2 Amps |
| CERTIFICATION | ||
| High Beam | N/A | ECE R112 |
| E-Mark Ref | N/A | 12.5 |
| Position Light (White) | ECE R7 | ECE R7 |

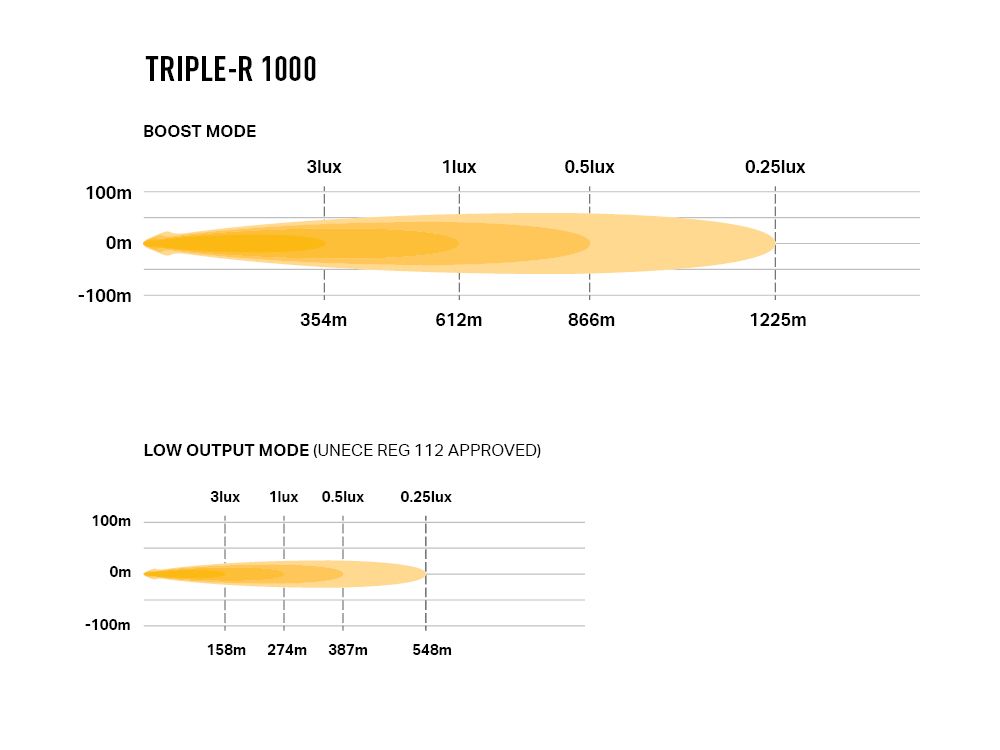

| PHOTOMETRIC DATA | ||

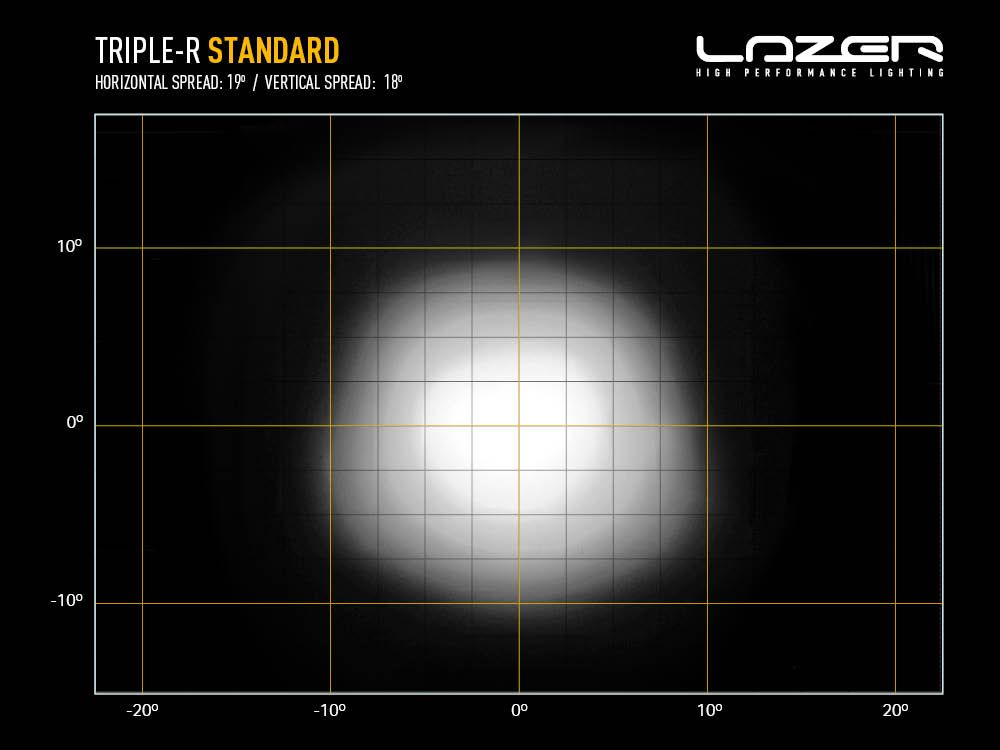

| Horiz Beam Angle | 19 Deg | 19 Deg |
| 0.25 lx Line | 1225 metres | 548 metres |
| 0.5 lx Line | 866 metres | 387 metres |
| 1 lx Line | 612 metres | 274 metres |
| 3 lx Line | 354 metres | 158 metres |
Hersteller:
LAZER Lamps
Garantie (Monate):
60
