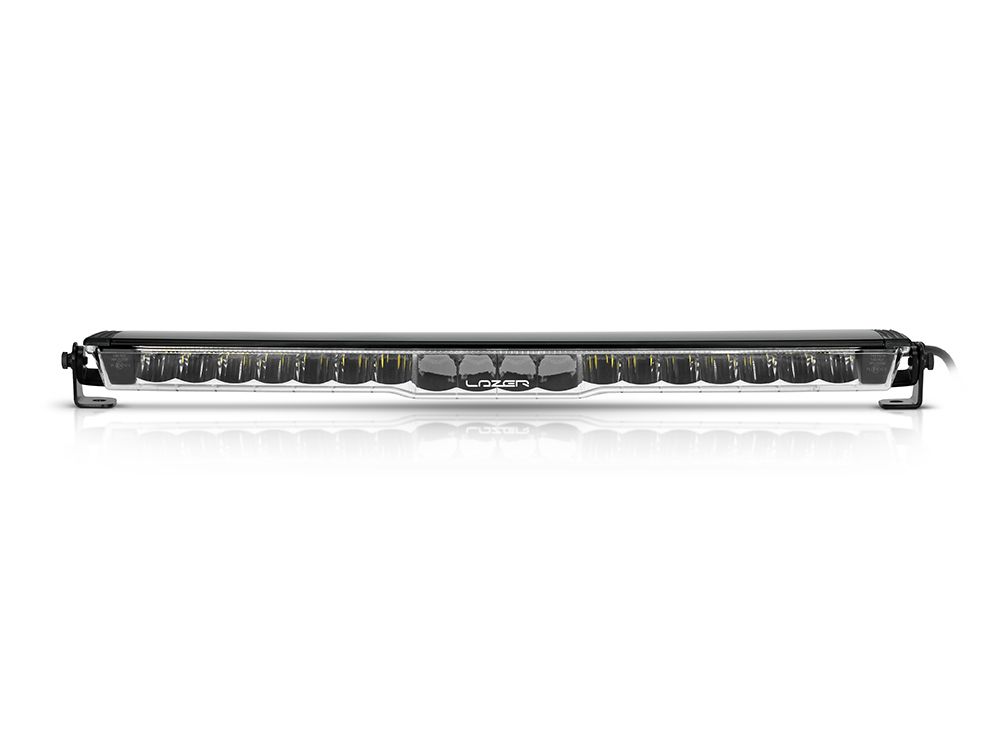

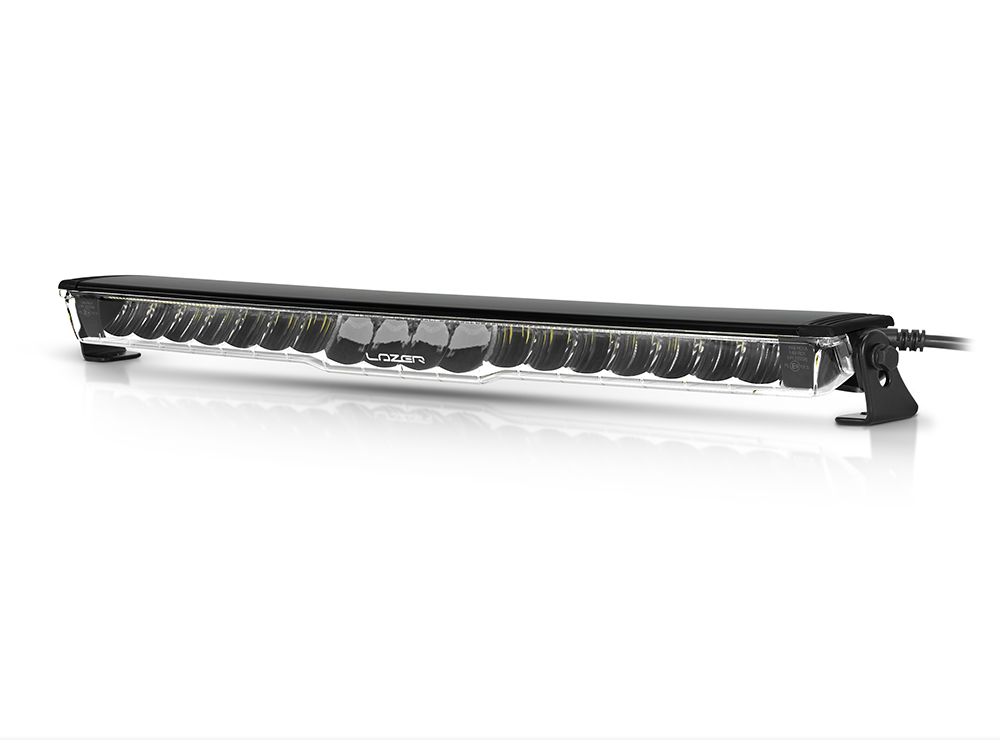

LAZER Glide
Produktcode:
0G18-SM
Preis ohne MWSt.:
320,00 €
Preis inkl. MWSt.:
387,20 €
Beschreibung
Grundlagen
| Voltage Range (DC) | 10-32V | |
| LED Life | 50,000 hours | |
| Weight | 0.68 kg | |
| HIGH BEAM FUNCTION | ||
| Total Luminous Flux | 11,500 Lm | 4,025 Lm |
| Total Driver 'FOV' Flux † | 6,958 Lm | 2,435 Lm |
| Colour Temperature | 5000K | |
| Power Consumption | 120 Watts | 42 Watts |
| Peak Current Draw | 9.6 Amps | 2.6 Amps |
| Current Draw (14.4V) | 8.3 Amps | 2.3 Amps |
| Connector | 2-Pin Superseal (+25cm Cable) | |

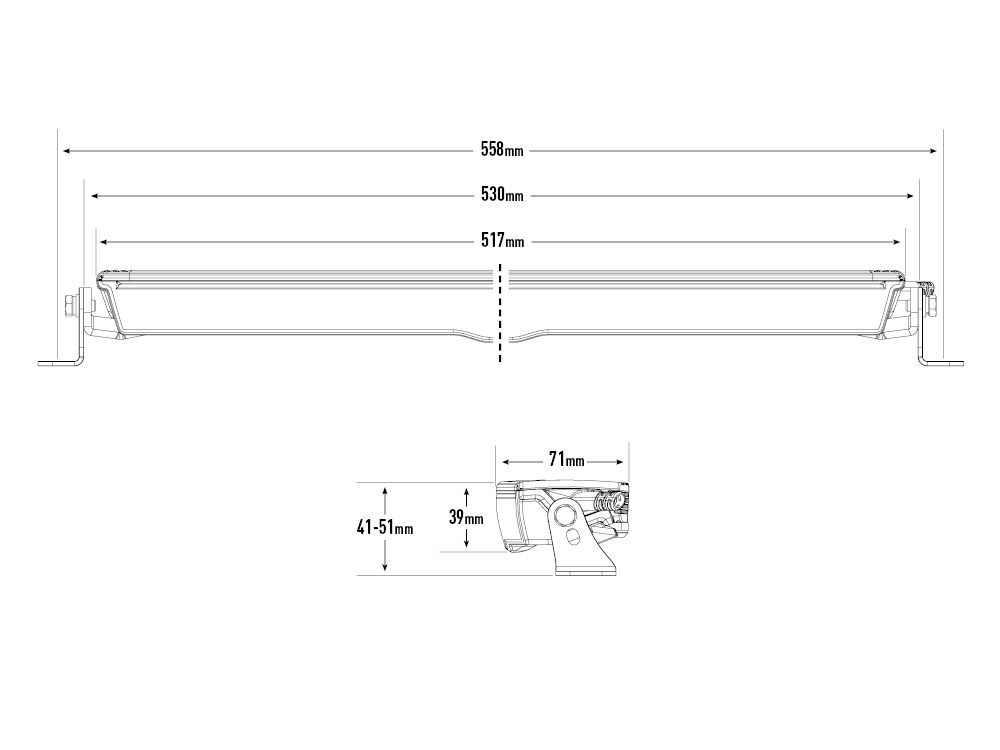

| DIMENSIONS | ||
| Width | 517 mm | |
| Depth | 71 mm | |
| Height | 39 mm | |

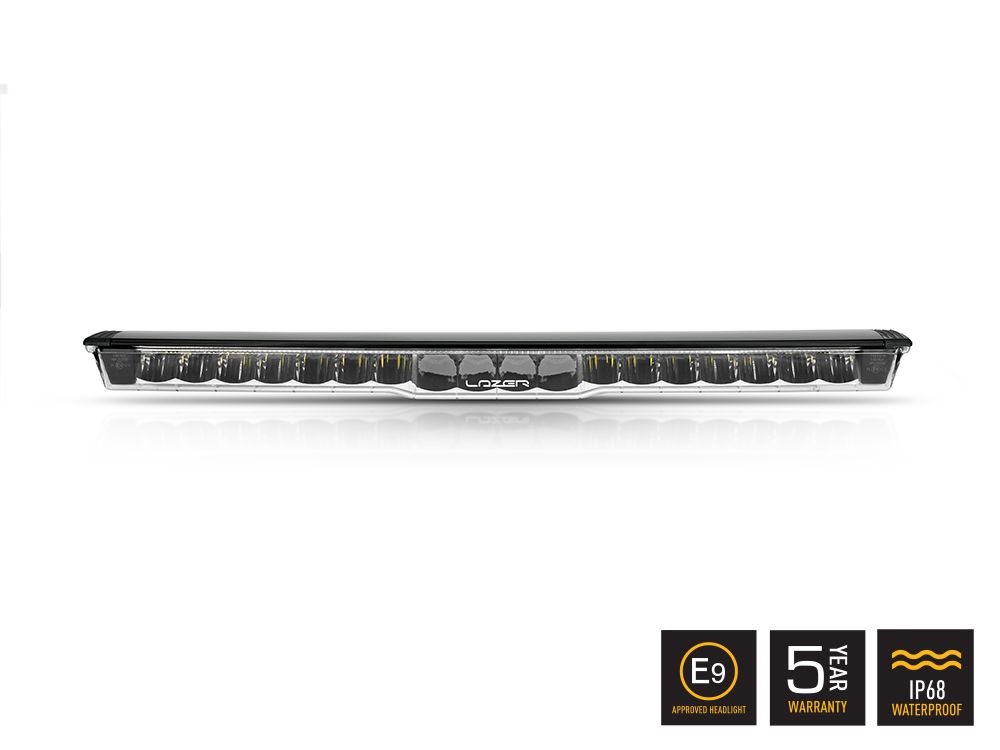

| CERTIFICATION | ||
| IP Rating # | IP68 | |
| High Beam (E9 approval) | ECE R149 (Double E-Mark) - Ref: 2x 12.5 (Low Output mode only) | |
| EMC Certification | ECE R10 | |
| Salt Spray Test | ISO 9227 | |
| Dump Load Protection | ISO 7637-2 | |

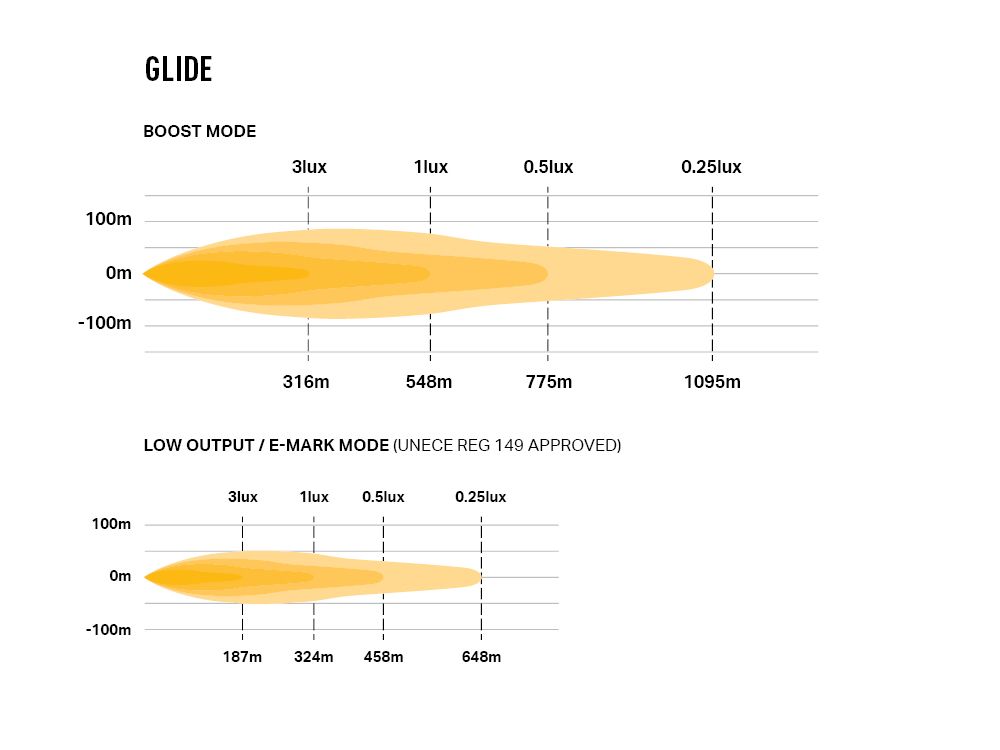

| PHOTOMETRIC DATA | ||

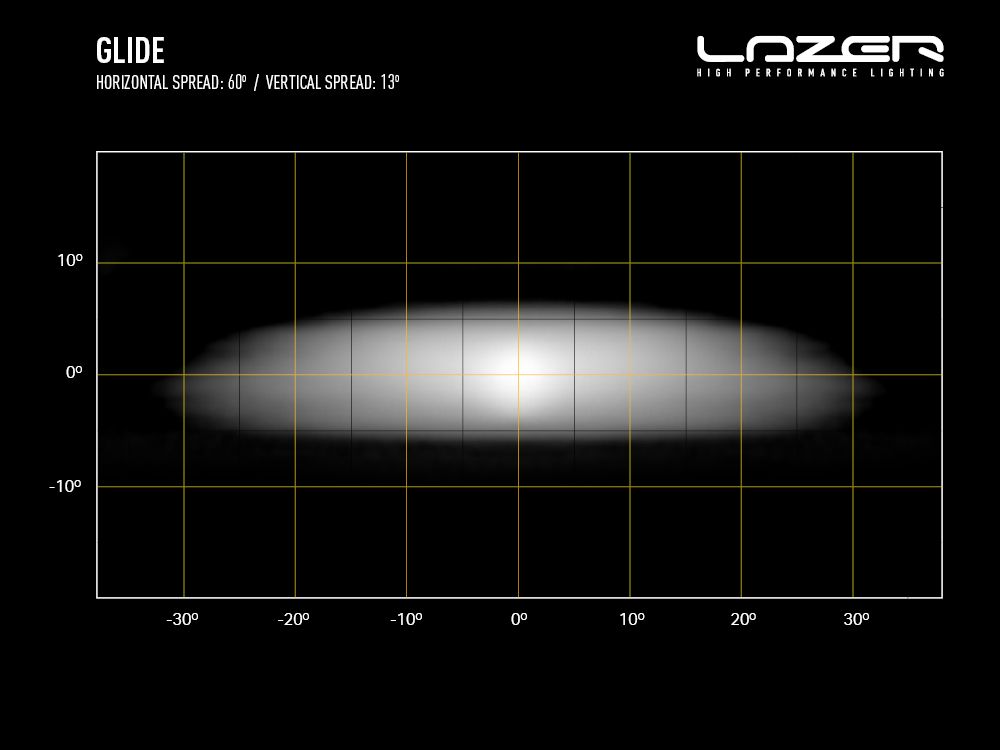

| Horizontal / Vertical Beam Angle | 60° / 13° | |
| 0.25 lx Line | 1095m | 648m |
| 0.5 lx Line | 775m | 458m |
| 1 lx Line | 548m | 324m |
| 3 lx Line | 316m | 187m |
Hersteller:
LAZER Lamps
Garantie (Monate):
60
