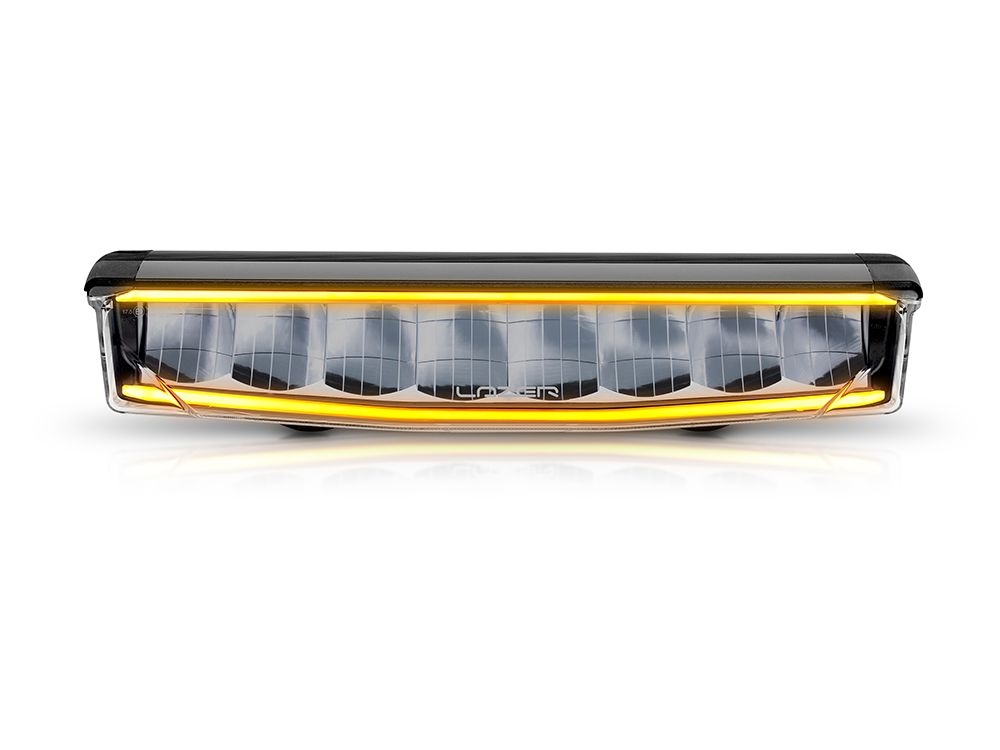

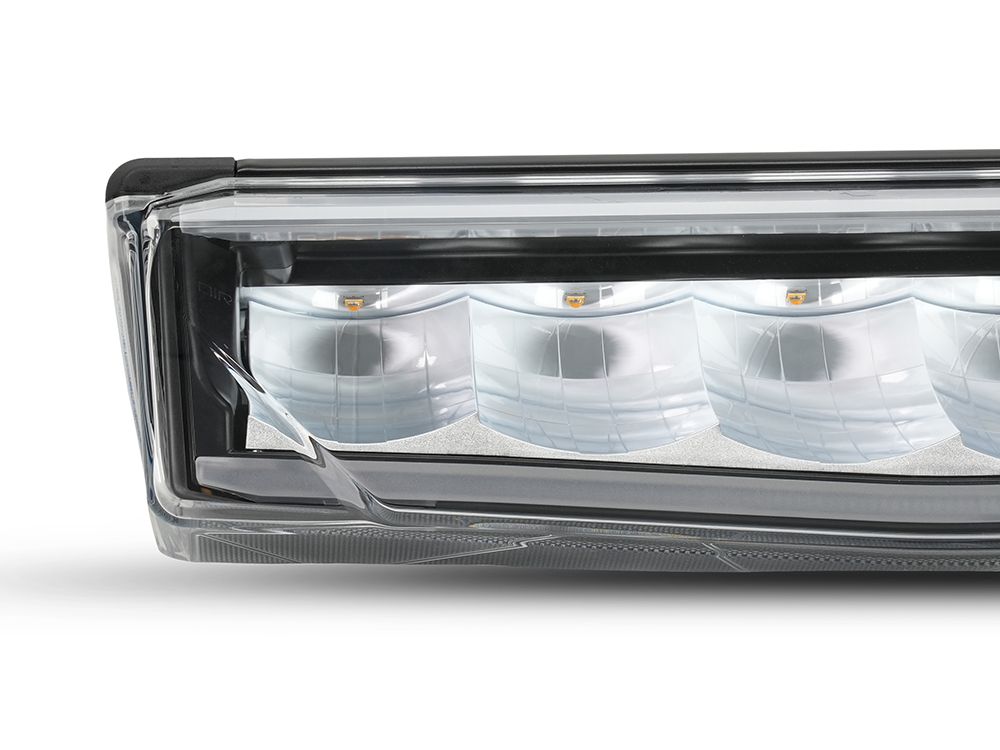

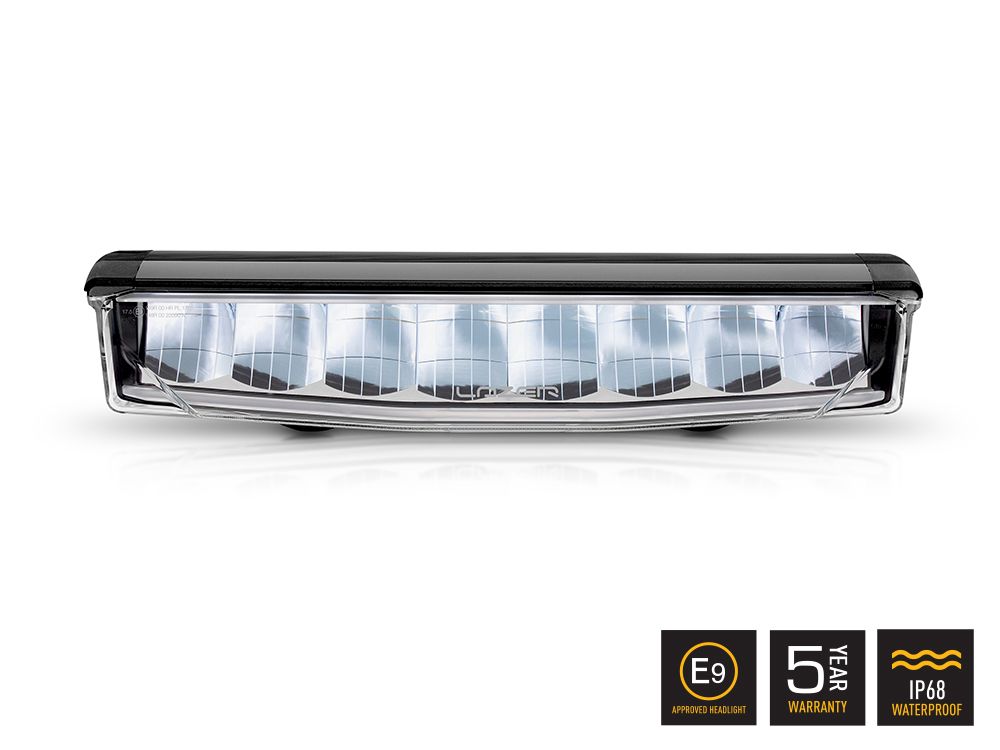

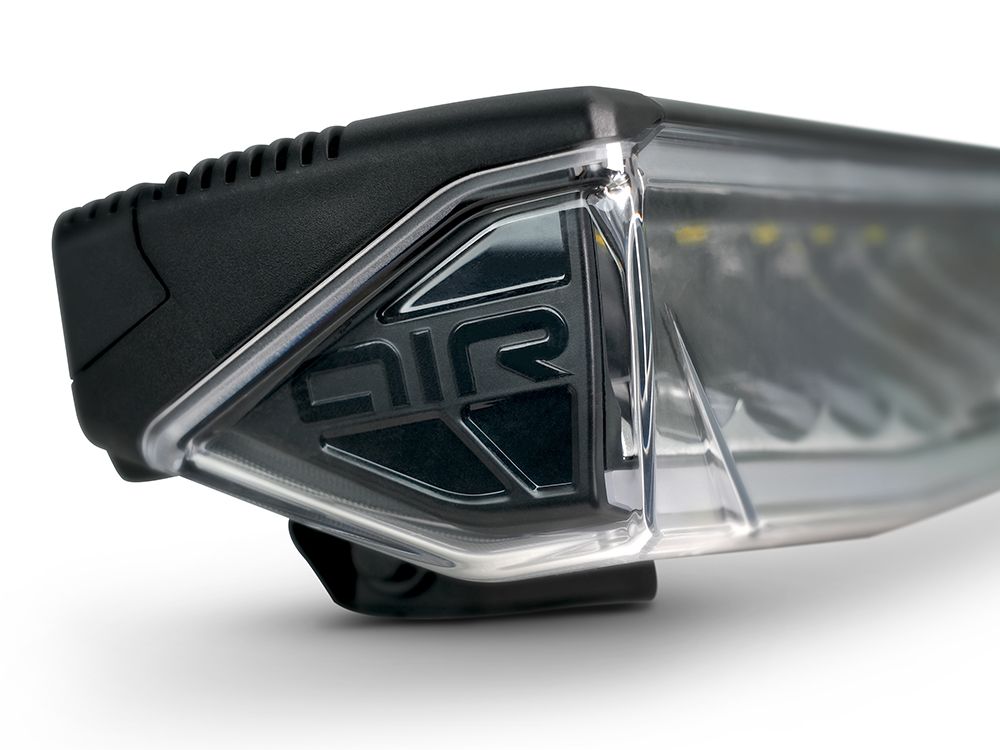

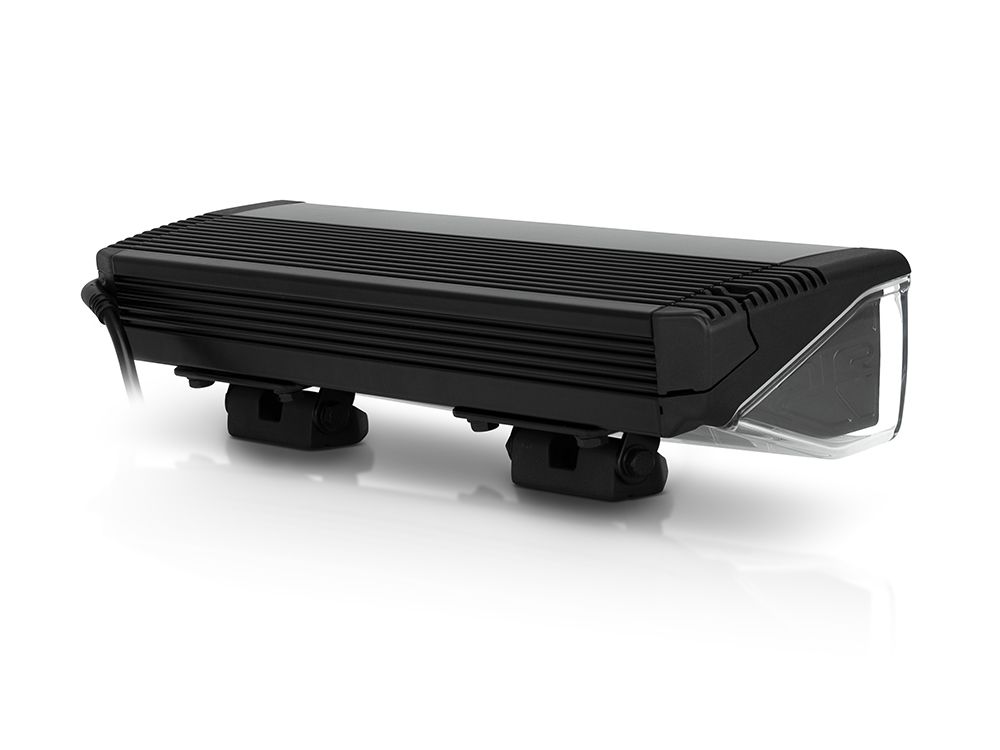

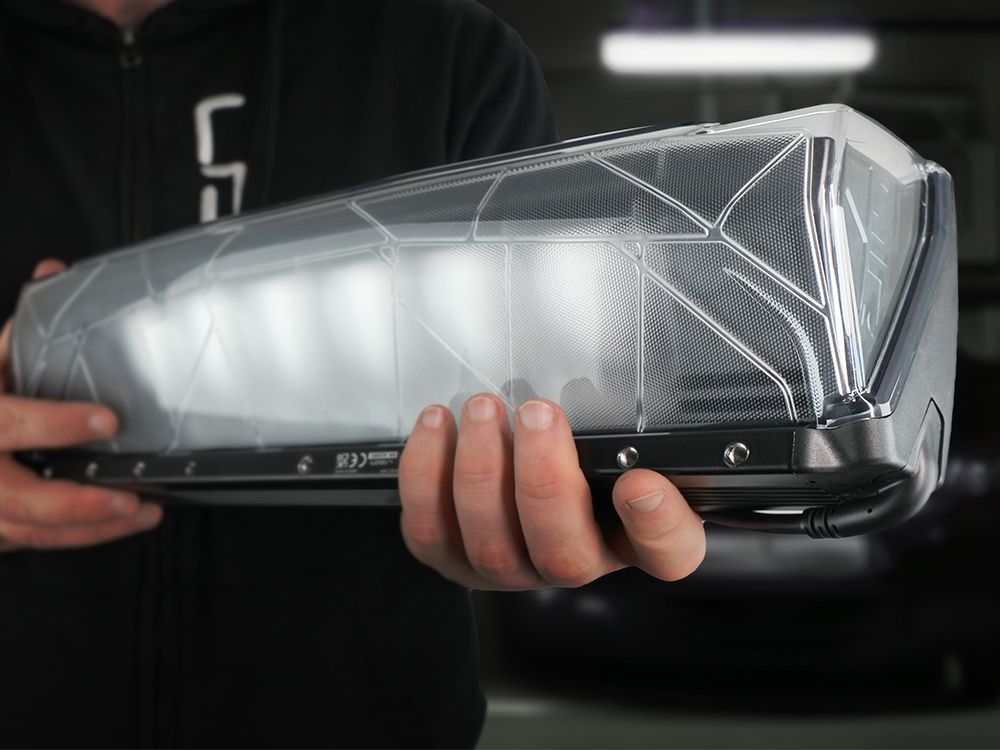

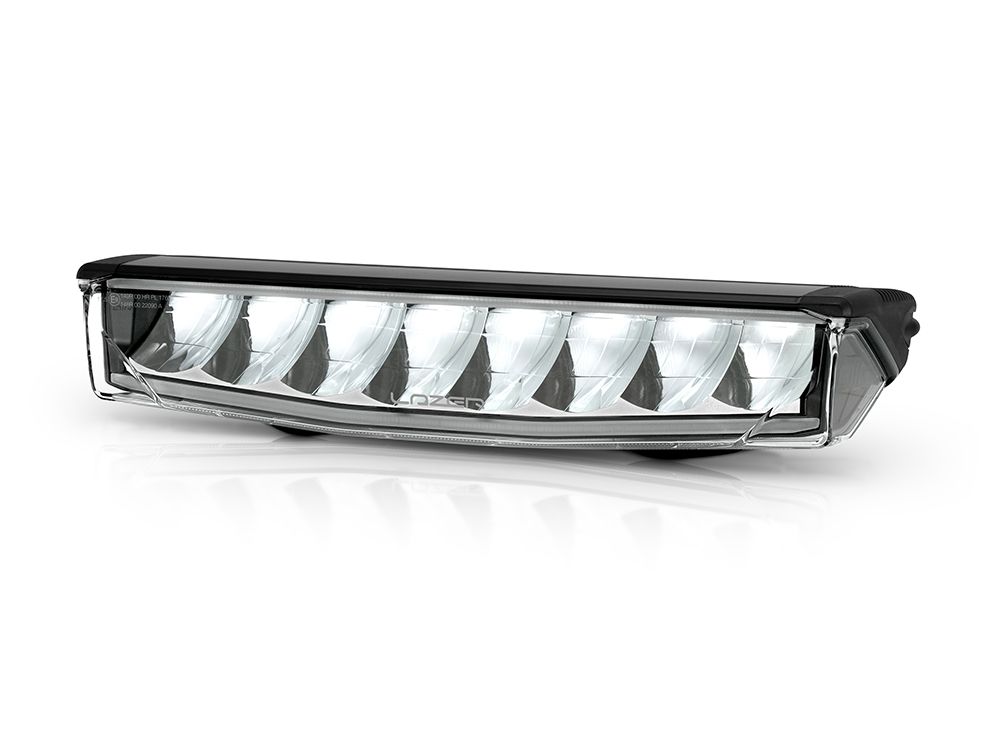

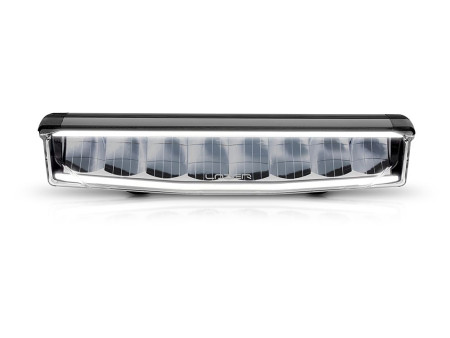

LAZER Air-90
Produktcode:
0A90-B
Preis ohne MWSt.:
395,00 €
Preis inkl. MWSt.:
477,95 €
Beschreibung
Grundlagen
| Voltage Range (DC) | 10-32V | |
| LED Life | 50,000 hours | |
| Weight | 1.65 kg | |
| HIGH BEAM FUNCTION | ||
| Total Luminous Flux | 9,160 Lm | 2,290 Lm |
| Total Driver 'FOV' Flux † | 6,229 Lm | 1,557 Lm |
| Colour Temperature | 5000K | |
| Power Consumption | 90 Watts | 14 Watts |
| Peak Current Draw | 8.5 Amps | 1.3 Amps |
| Current Draw (14.4V) | 7.1 Amps | 1 Amp |
| Connector | 3-Pin Superseal (+25cm Cable) | |

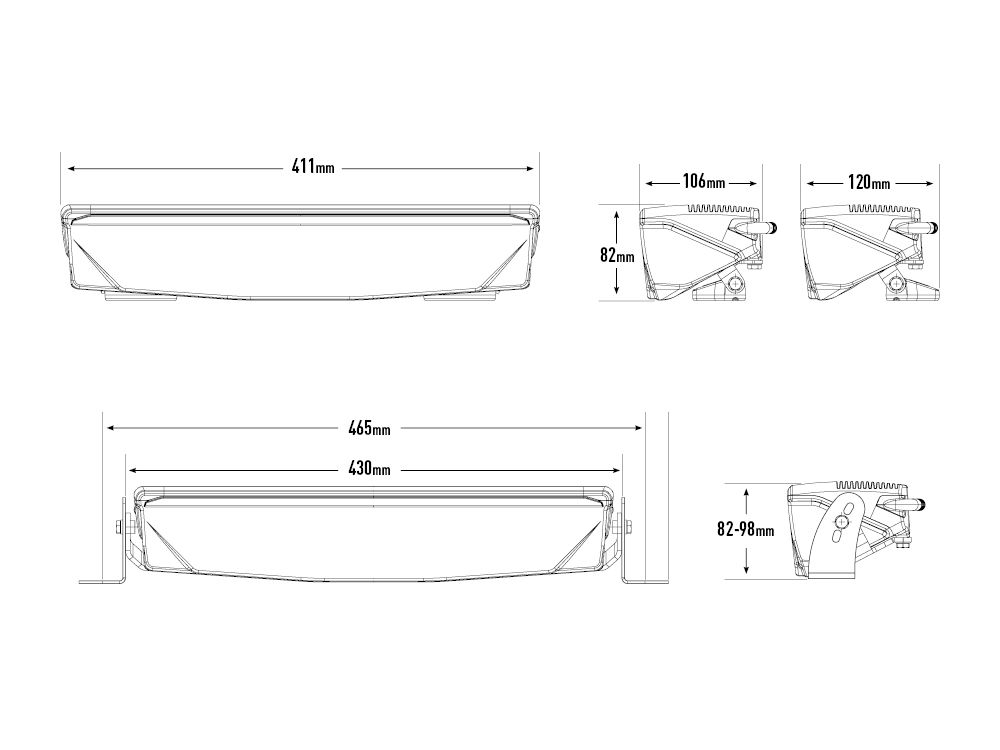

| DIMENSIONS | ||
| Width | 411 mm | |
| Depth | 106 mm | |
| Height | 82 mm | |
| CERTIFICATION | ||
| IP Rating # | IP68 | |
| High Beam (E9 approval) | ECE R149 - Ref: 17.5 (in Low Output Mode only) | |

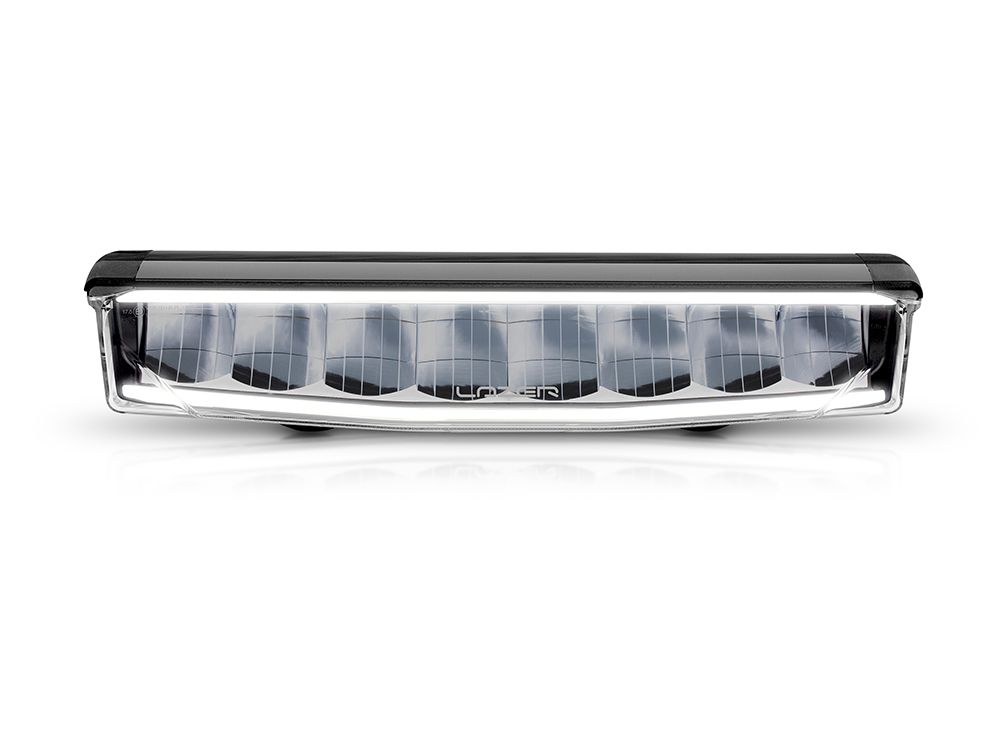

| Position Light (white only) | ECE R148 | |
| EMC Certification | ECE R10 | |
| Salt Spray Test | ISO 9227 | |
| Dump Load Protection | ISO 7637-2 | |

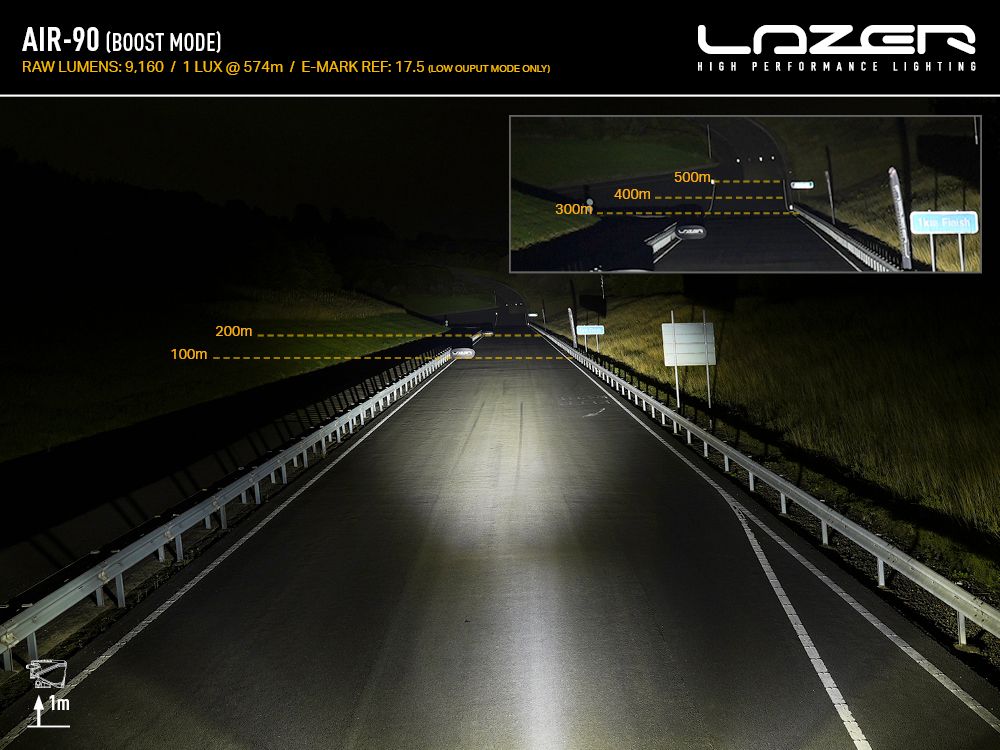

| PHOTOMETRIC DATA | ||
| Horizontal / Vertical Beam Angle | 34° / 13° | |
| 0.25 lx Line | 1149m | 574m |
| 0.5 lx Line | 812m | 406m |
| 1 lx Line | 574m | 287m |
| 3 lx Line | 332m | 166m |
Hersteller:
LAZER Lamps
Garantie (Monate):
60
